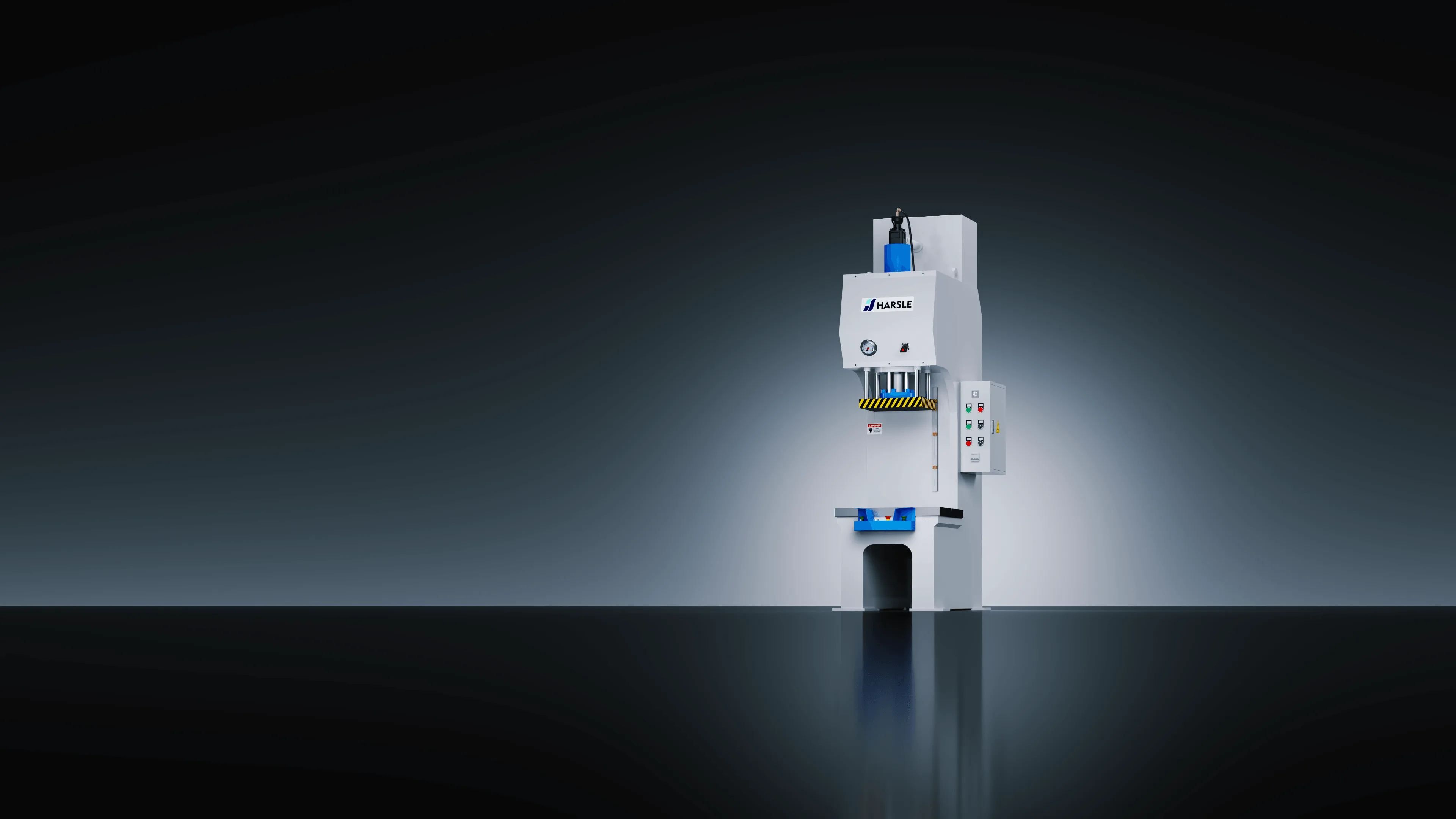

C-Press
Built for efficient pressing.
Open Design
C Frame
The C-frame structure provides excellent accessibility and flexibility, allowing operators to handle workpieces efficiently from multiple directions.
Open structure enables easy loading and operation
Strong table improves stability and precision
Dual Safety
Safe Control
The control panel is designed with dual-button operation to enhance operator safety, reduce accidental activation, and ensure more reliable pressing control.
Immediate stop helps reduce operational risks
Two-hand operation greatly enhances operator protection
Stable Force
Oil Cylinder
Delivers stable hydraulic force with smooth movement and reliable pressing performance.
Heavyweight Function
Strength Support
Designed to provide controlled force and stable motion, enhancing forming precision and improving overall production efficiency.
Easy Release
Ejection Cylinder
The ejection cylinder helps remove finished parts quickly and smoothly.
Forming Support
Hydraulic Cushion
The hydraulic cushion improves forming quality in special pressing applications.
Built Protection
Safety System
Engineered with integrated safety features, the C-Press ensures controlled operation and enhanced protection throughout every working cycle.
Access Safety
Safety Door Switch
The safety door switch stops operation when protective doors are opened.
Area Safety
Light Curtain
The light curtain detects intrusion and helps protect the operator instantly.
Guard Zone
Safety Barrier
The safety barrier helps isolate hazardous areas and improve operator safety.
01 / 03
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
C-Press
16T
16T
C-Press
40T
40T
C-Press
200T
200T
C-Press
315T
315T
160 kN
Nominal Force
400 kN
Nominal Force
2000 kN
Nominal Force
3150 kN
Nominal Force
13 Mpa
Maximum Working Pressure
22.5 Mpa
Maximum Working Pressure
25.5 Mpa
Maximum Working Pressure
26.5 Mpa
Maximum Working Pressure
500 mm
Daylight
600 mm
Daylight
1000 mm
Daylight
1100 mm
Daylight
350 mm
Slide Stroke
400 mm
Slide Stroke
500 mm
Slide Stroke
600 mm
Slide Stroke
300 mm
Throat Depth
320 mm
Throat Depth
360 mm
Throat Depth
410 mm
Throat Depth
700 mm
Table Height
700 mm
Table Height
700 mm
Table Height
700 mm
Table Height
4 KW
Motor Capacity
5.5 KW
Motor Capacity
18.5 KW
Motor Capacity
22 KW
Motor Capacity
8~15 mm/s
Pressing Speed
8~15 mm/s
Pressing Speed
8~15 mm/s
Pressing Speed
8~15 mm/s
Pressing Speed
740*1140*1990 mm
Dimension (L*W*H)
800*1370*2250 mm
Dimension (L*W*H)
1200*1780*3490 mm
Dimension (L*W*H)
1350*1800*3590 mm
Dimension (L*W*H)
