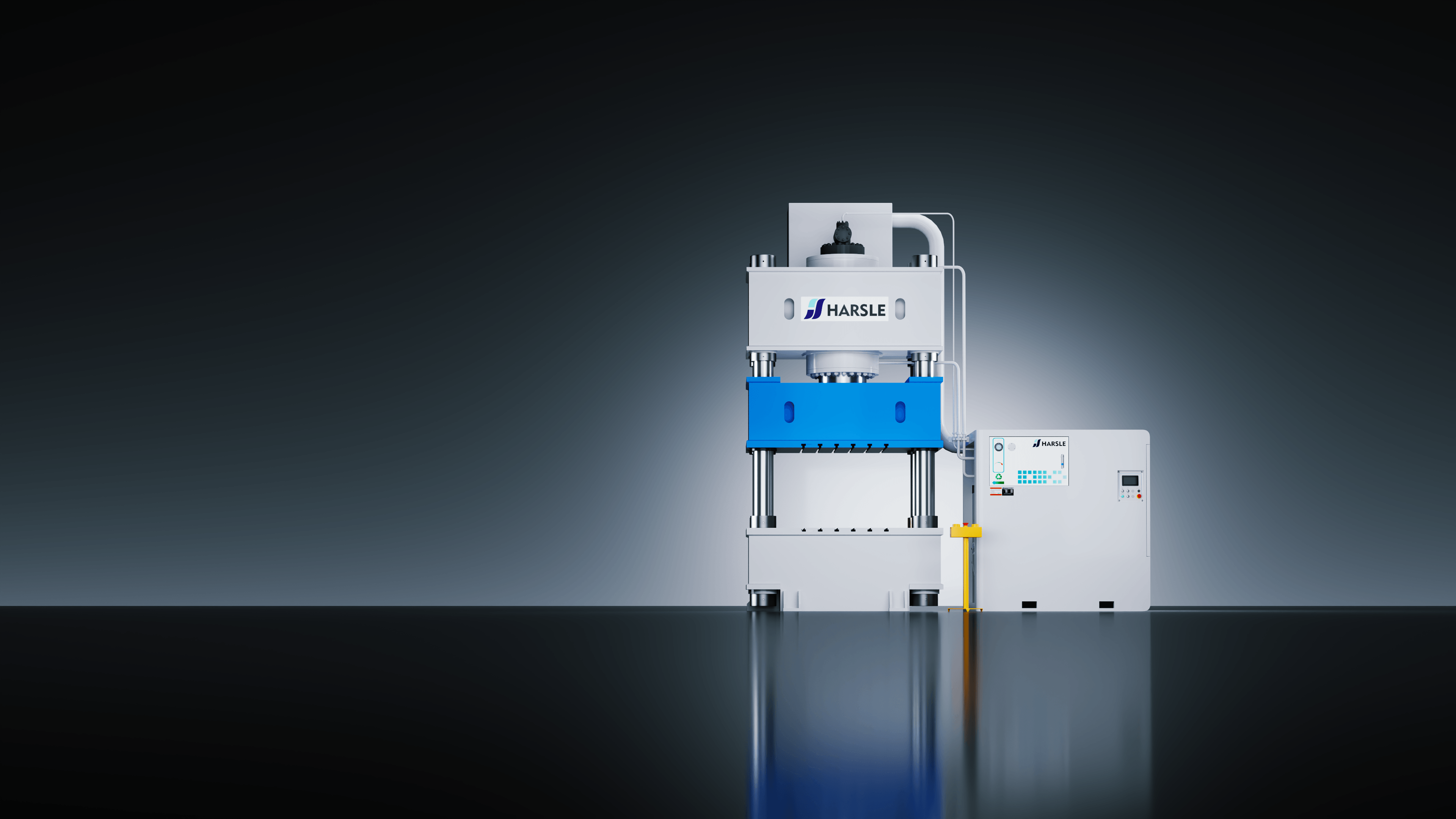

PillarPress
Built for heavy-duty forming.
Stable Force
Stable Force
Delivers strong hydraulic force with smooth movement to ensure stable and reliable pressing performance.
Enclosed Design
Hydraulic Pump Station
The enclosed hydraulic station reduces noise and protects key components from dust and contamination.
The touchscreen makes parameter setting, status monitoring, and operation control faster, clearer, and more convenient.
The PLC system ensures accurate machine coordination, reliable automation, and stable performance throughout every production cycle.
Efficient Power
Servo Pump
The servo pump unit saves energy while delivering faster response, lower noise, and better control accuracy.
Lower Consumption
Saves up to 80% energy compared with conventional systems
Less Noise
Lowers operating noise by up to 30 dB
Thermal Support
Heating Plate
The optional heating plate provides even temperature distribution to improve forming quality for special materials.
Even Heating
Stable Temperature
The heating plate delivers uniform heat distribution, helping improve forming consistency and product quality.
Better Forming
Higher Quality
By maintaining the right working temperature, the heating plate improves material formability and reduces defects during production.
Auto Transfer
Gantry Robot
The optional system automates loading and material transfer to improve efficiency and reduce manual work.
Optional Accessories
Safety Options
The light curtain detects intrusion immediately and helps protect operators in the working area.
The safety lock secures moving parts firmly and improves safety during maintenance and inspection.
The safety barrier isolates hazardous areas and provides better protection for machine operators.
Faster Handling
Auto Feeding System
The feeding system supports continuous production and greatly improves material handling efficiency.
Force in Action
Powerful force, stable forming
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
PillarPress
63T
63T
PillarPress
200T
200T
PillarPress
630T
630T
PillarPress
3000T
3000T
630 kN
Nominal Force
2000 kN
Nominal Force
6300 kN
Nominal Force
30000 kN
Nominal Force
160 kN
Ejection Cylinder Force
400 kN
Ejection Cylinder Force
1600 kN
Ejection Cylinder Force
5000 kN
Ejection Cylinder Force
700 mm
Daylight
1120 mm
Daylight
1500 mm
Daylight
2000 mm
Daylight
500 mm
Slide Stroke
710 mm
Slide Stroke
900 mm
Slide Stroke
1200 mm
Slide Stroke
200 mm
Ejection Cylinder Stroke
250 mm
Ejection Cylinder Stroke
360 mm
Ejection Cylinder Stroke
500 mm
Ejection Cylinder Stroke
550 mm
Table Height
550 mm
Table Height
500 mm
Table Height
200 mm
Table Height
7.5 KW
Motor Capacity
13 KW
Motor Capacity
35 KW
Motor Capacity
150 KW
Motor Capacity
11~22 mm/s
Pressing Speed
8~15 mm/s
Pressing Speed
8~18 mm/s
Pressing Speed
8~18 mm/s
Pressing Speed
1150*800*2600 mm
Dimension (LR*FB*H)
2450*1300*3650 mm
Dimension (LR*FB*H)
3600*1800*5300 mm
Dimension (LR*FB*H)
8530*4000*8500 mm
Dimension (LR*FB*H)
