FlexPunch
Built for efficient, reliable punching.
Flexible Control

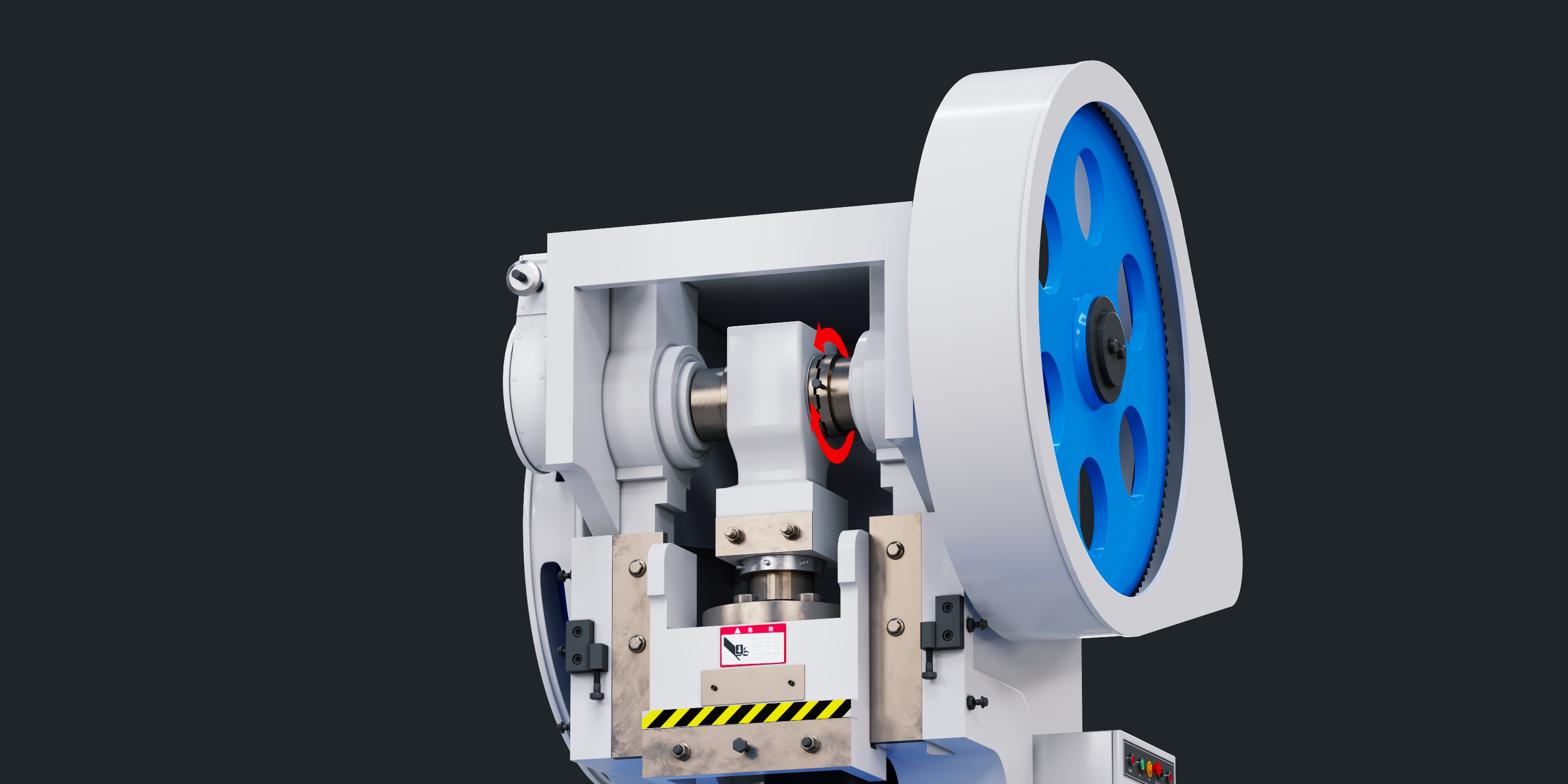

Stroke Adjustment
The adjustable stroke design supports different punching needs with greater flexibility and precision.
Rigid Frame
Stable Body
The reinforced frame structure ensures high rigidity and stability, supporting accurate and reliable performance during adjustable stroke operations.

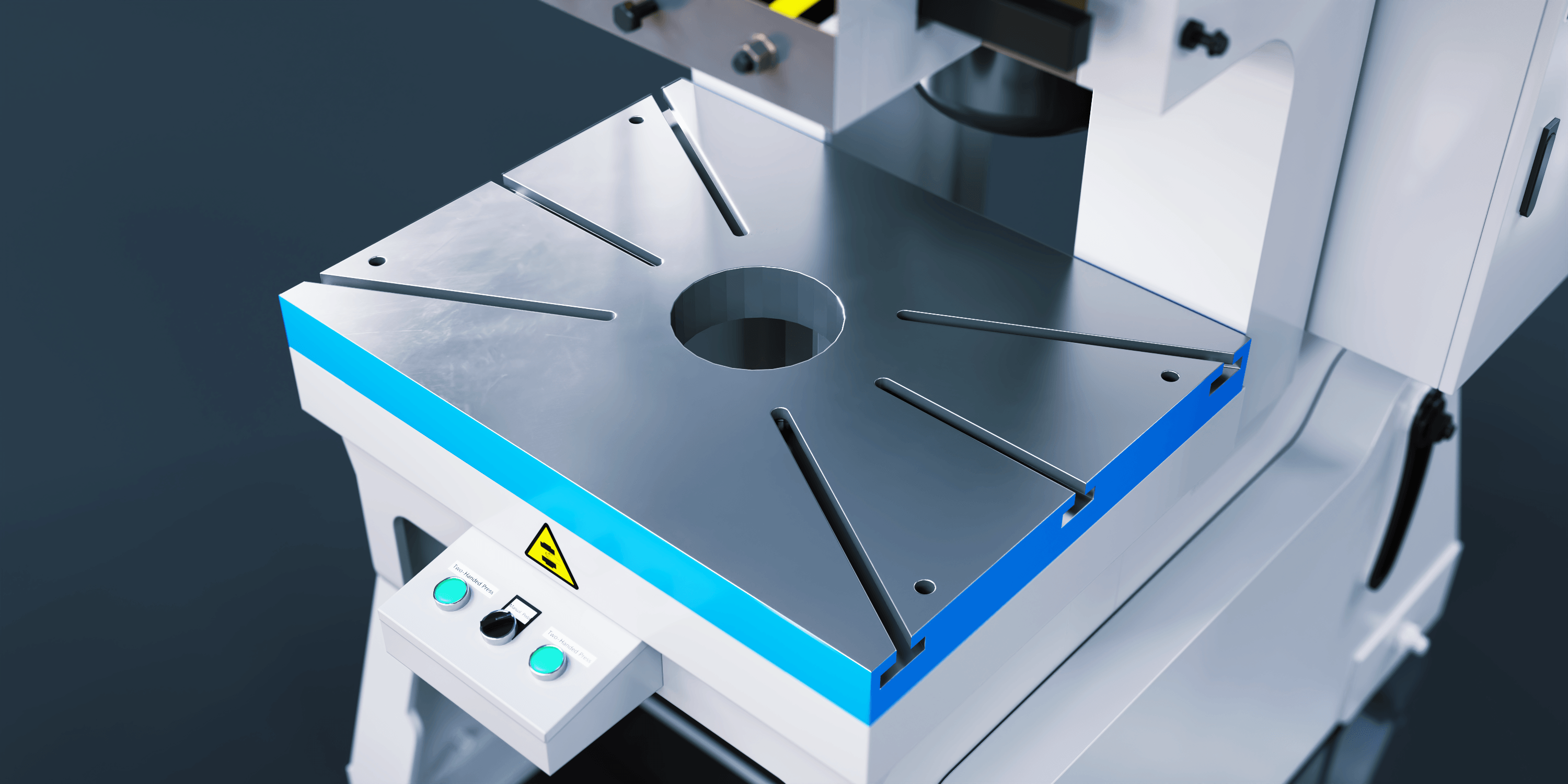

The solid working table provides reliable support for various workpieces, ensuring stable positioning and precise punching results.
Carefully engineered details enhance durability, improve usability, and ensure smooth machine operation in daily production.
Stable Motion
Reliable Drive
The slider ensures stable movement and reliable pressing accuracy during continuous operation.
The crankshaft system delivers efficient power transmission and stable punching performance.
The braking system provides fast stopping response for safer and more controlled operation.
Efficient Movement

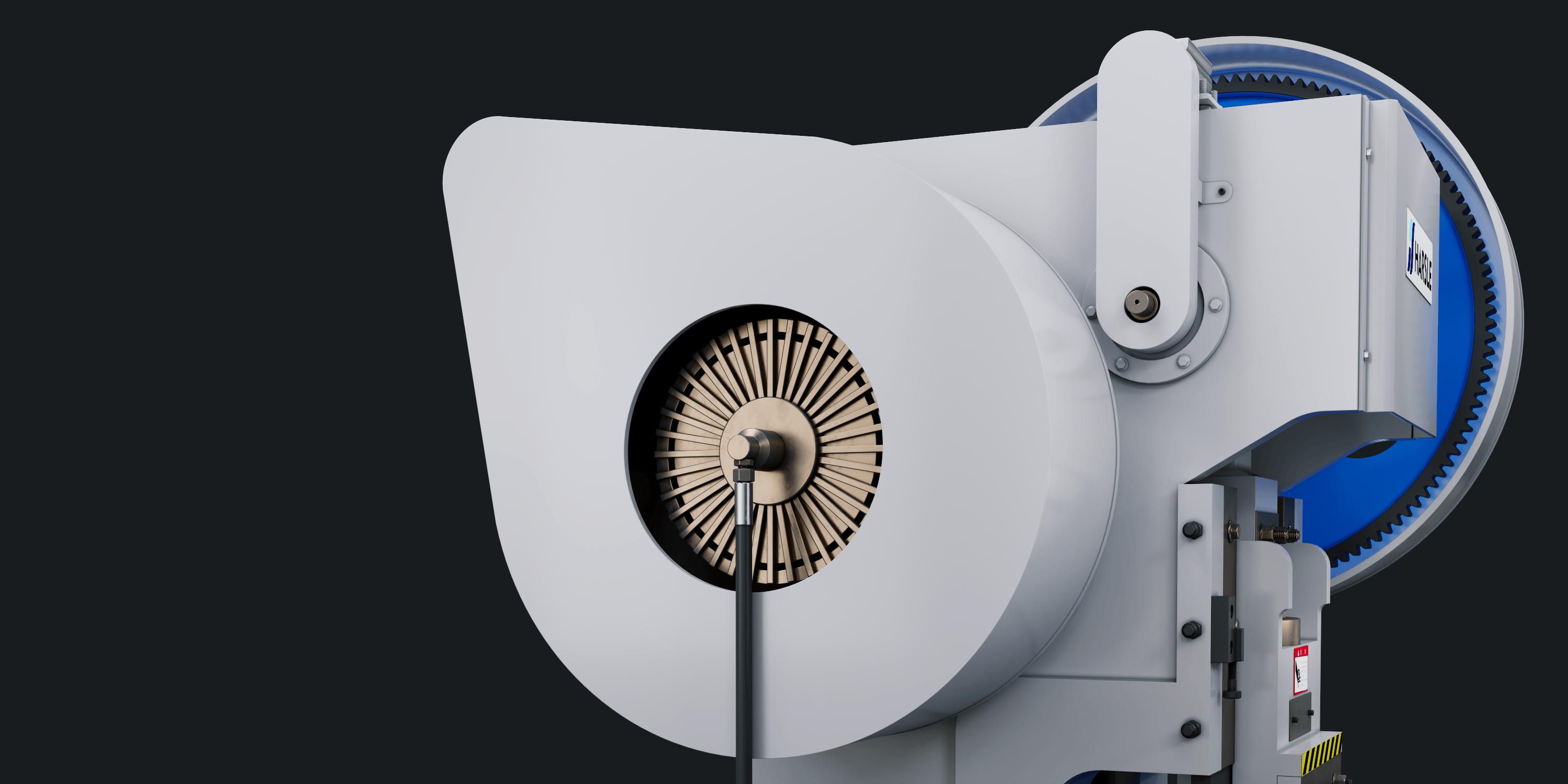

Pneumatic Friction Clutch
The pneumatic friction clutch ensures precise control of power transmission, enhancing the machine's responsiveness and preventing mechanical overload during operations.
Precise Feeding
Efficient Feed System
The advanced feeding system ensures smooth and accurate material feeding, improving production efficiency and reducing manual handling.
Smooth Unwinding

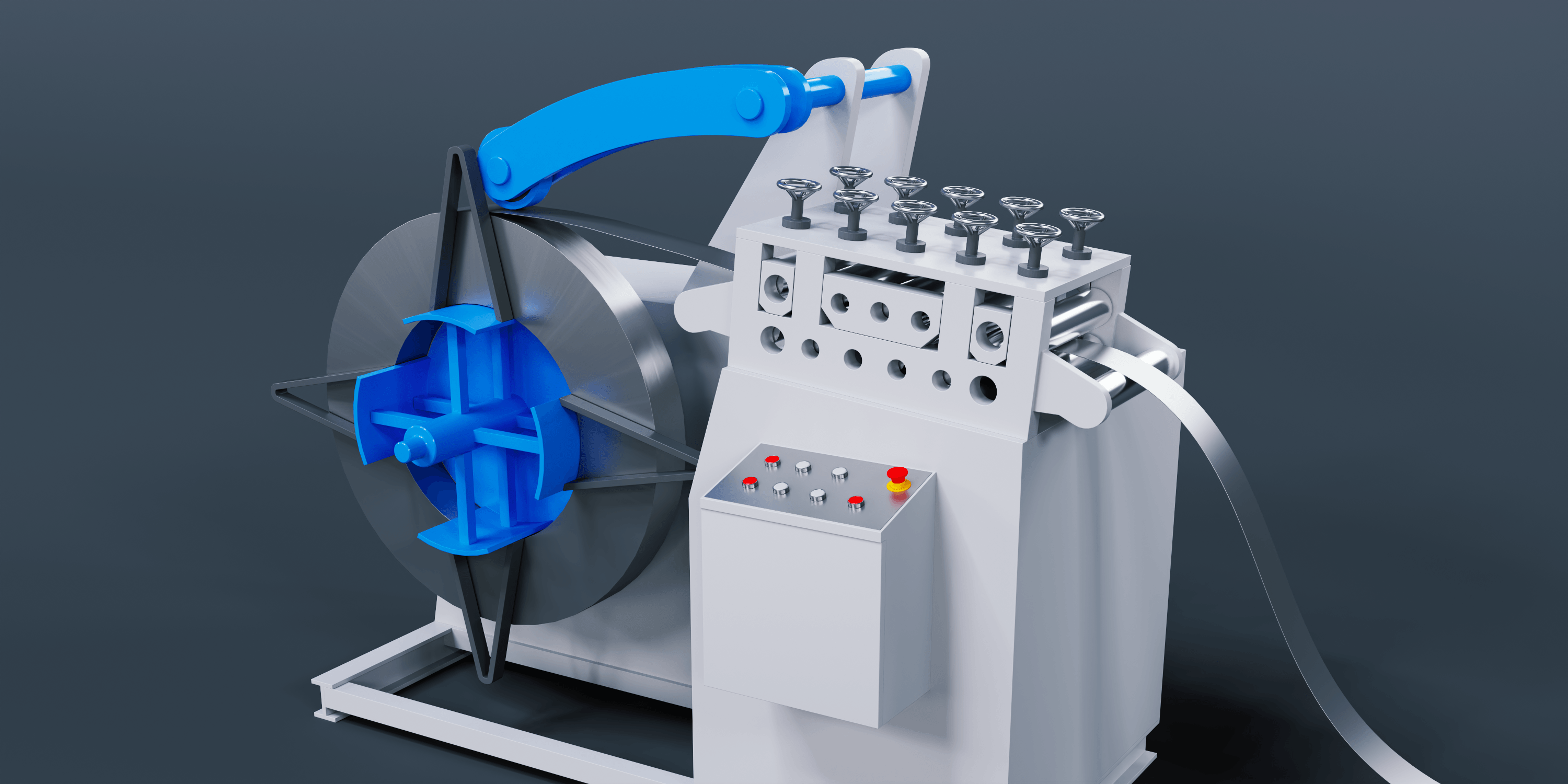

Leveling Decoiler
The Leveling Decoiler ensures precise coil unwinding and leveling, providing a smooth material surface for efficient processing and improved product quality.
Precise Feeding

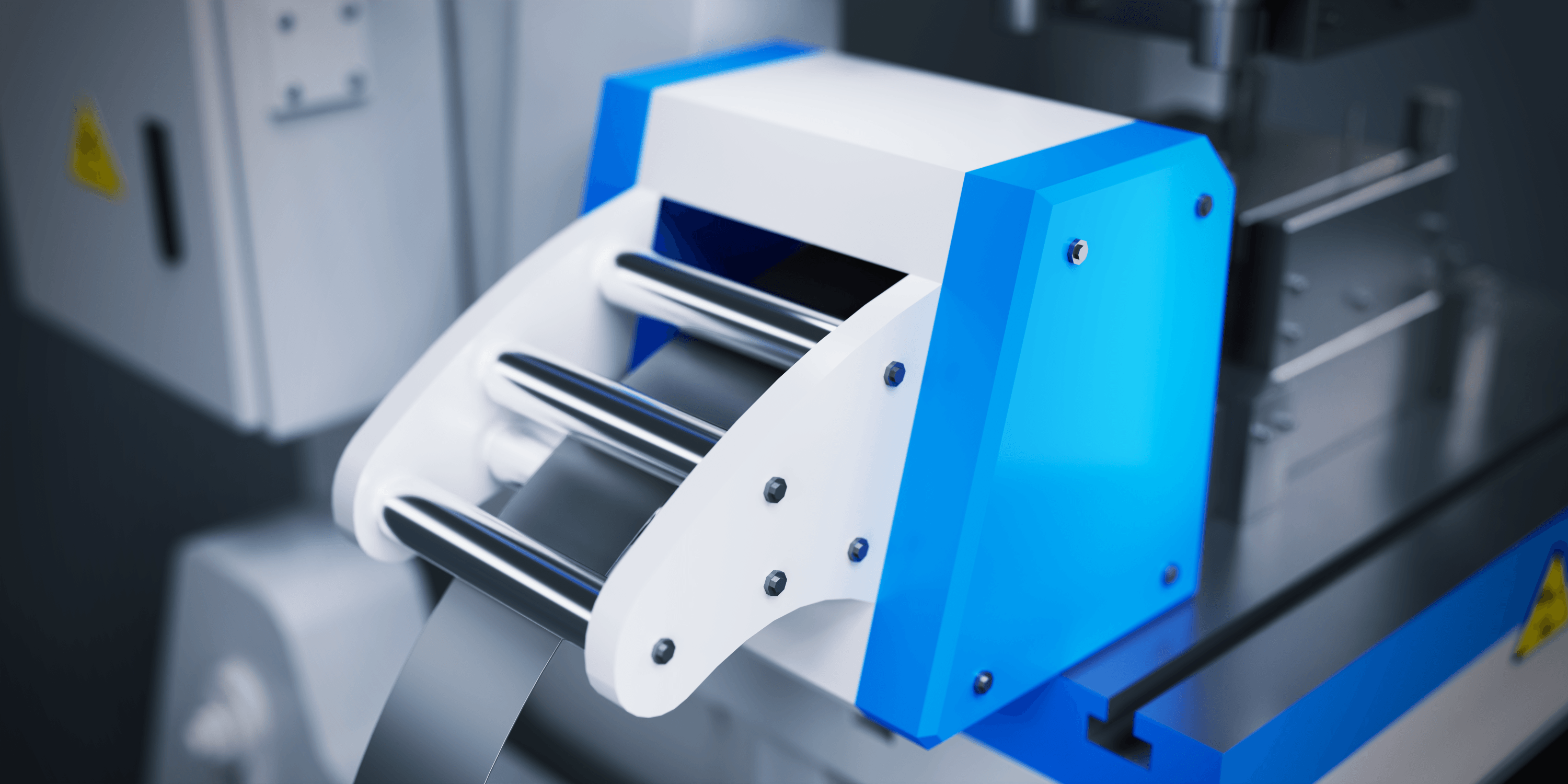

Auto Feeder
The Auto Feeder ensures consistent, high-speed material feeding, improving accuracy and reducing manual handling for faster production cycles.
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
FlexPunch
16T
16T
FlexPunch
63T
63T
FlexPunch
100T
100T
FlexPunch
200T
200T
160 kN
Nominal Force
630 kN
Nominal Force
1000 kN
Nominal Force
2000 kN
Nominal Force
10-60 mm
Slide Stroke
20-100 mm
Slide Stroke
10-130 mm
Slide Stroke
20-140 mm
Slide Stroke
140 Times/min
Number of Stroke
50 Times/min
Number of Stroke
40 Times/min
Number of Stroke
35 Times/min
Number of Stroke
190 mm
Closed Height
360 mm
Closed Height
390 mm
Closed Height
490 mm
Closed Height
180 mm
Max. Die Set Height
340 mm
Max. Die Set Height
380 mm
Max. Die Set Height
470 mm
Max. Die Set Height
40 mm
Die Height Adjustment
60 mm
Die Height Adjustment
60 mm
Die Height Adjustment
100 mm
Die Height Adjustment
160 mm
Throat Depth
255 mm
Throat Depth
320 mm
Throat Depth
350 mm
Throat Depth
1.5 KW
Motor
4 KW
Motor
7.5 KW
Motor
18.5 KW
Motor
1000*820*1750 mm
Dimension (L*W*H)
1710*1200*2500 mm
Dimension (L*W*H)
1920*1320*2770 mm
Dimension (L*W*H)
2175*1740*3150 mm
Dimension (L*W*H)
