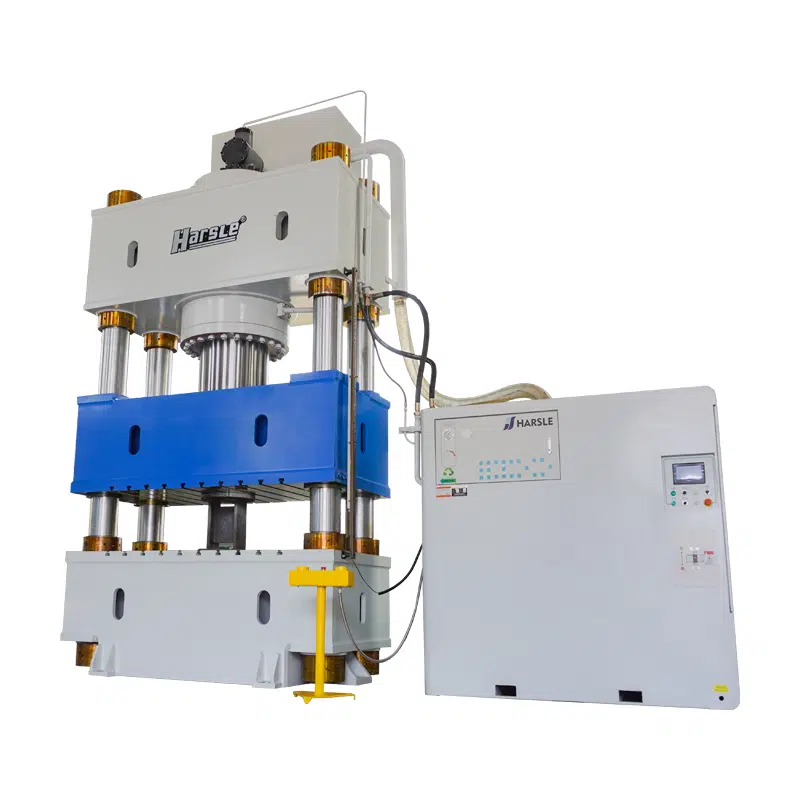

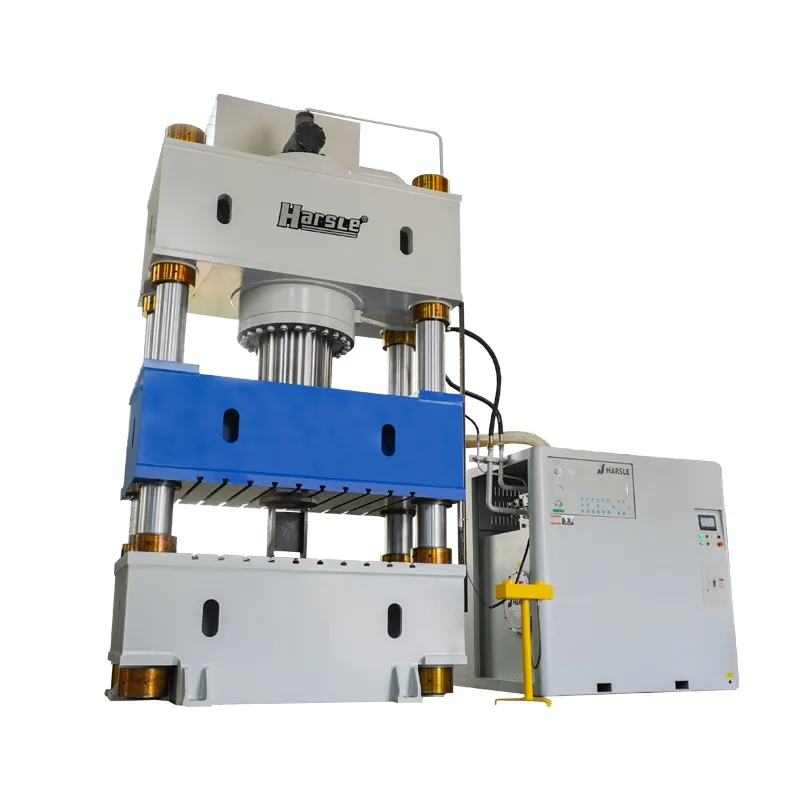

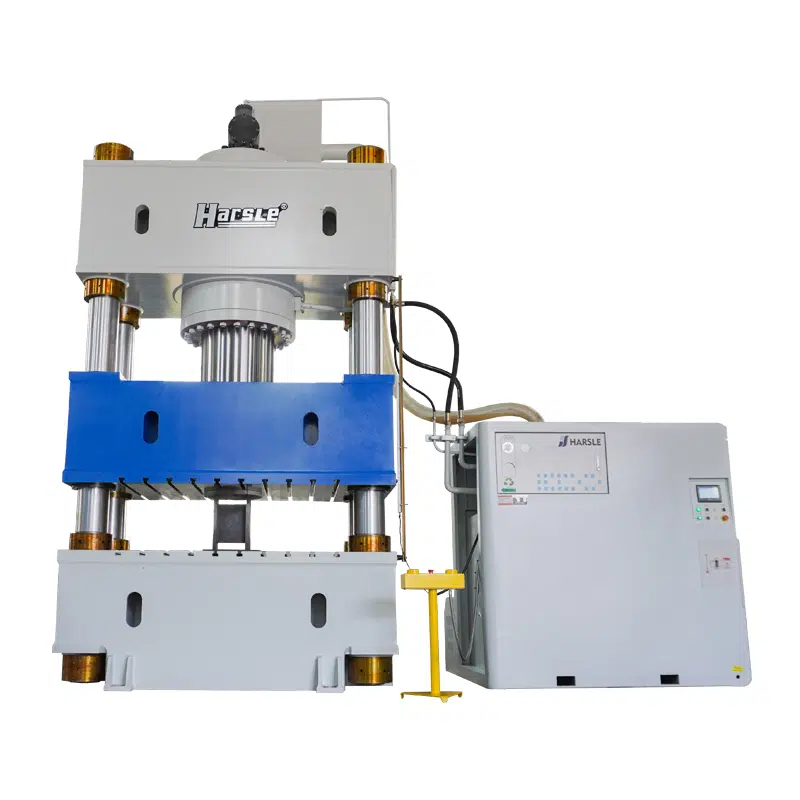

1250 Ton Hydraulic Press for Heavy-Duty Forming

Name: 1250 Ton Hydraulic Press for Heavy-Duty Forming | HARSLE
SKU: HS2025562
Price: 235000 USD
Availability: InStock

The 1250 ton hydraulic press is designed for large-scale industrial forming applications. With superior build quality, advanced control systems, and customizable options, it delivers precise force for deep drawing, stamping, and molding. Ideal for metalworking and composite material industries, this machine ensures high efficiency, reduced cycle times, and reliable performance under continuous use.

100 in stock

Add to compare

Add to wishlist

QUOTE NOW

Y32 Four-Column Hydraulic Press

Item	Unit	Y32-63T	Y32-100T	Y32-160T	Y32-200T	Y32-250T	Y32-315T	Y32-400T	Y32-500T	Y32-630T	Y32-800T	Y32-1000T	Y32-1250T	Y32-1600T	Y32-2000T	Y32-2500T	Y32-3000T
Nominal Force	KN	630	1000	1600	2000	2500	3150	4000	5000	6300	8000	10000	12500	16000	20000	25000	30000
Knock-out Pressure	KN	160	250	250	400	400	630	630	1000	1600	2000	2000	2000	2500	3150	4000	5000
Daylight	mm	700	800	800	1120	1120	1250	1250	1500	1500	1500	1600	1500	1600	1800	2000	2000
Slide Stroke	mm	500	500	650	710	710	800	800	900	900	900	1000	900	1000	1200	1200	1200
Knock-out Stroke	mm	200	200	200	250	250	300	300	360	360	360	450	400	450	450	500	500
Table Height	mm	550	550	550	550	550	700	700	715	500	300	300	200	200	200	200	200
T Slot		Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Type		Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Capacity	KW	7.5	7.5	7.5	13	13	13	22	30	35	48	60	72	92	94	110	150
Table Size(L-R)	mm	550	630	800	900	1000	1200	1400	1400	1600	2000	2000	2500	2500	2500	3000	4000
Table Size(F-B)	mm	630	630	800	900	1000	1200	1200	1400	1600	1600	1800	2000	2000	2000	2500	2600
Descent Speed	mm/s	38	38	40	80	80	120	100	＞100	＞100	＞100	＞150	＞150	＞150	＞150	＞150	＞150
Pressing Speed	mm/s	10	10	8	5-12	5-12	5-12	4-10	4-10	5-12	5-12	4-10	4-10	4-10	4-10	4-10	5-12
Return Speed	mm/s	95	70	65	70	70	65	50	50	60	90	100	85	＞100	60	＞100	120
Dimension(L-R)	mm	1150	2200	2370	2450	2450	2830	3070	3300	3600	4800	7010	5890	6500	6870	7630	8530
Dimension(F-B)	mm	800	900	1200	1300	1300	1500	1500	1500	1800	2854	3000	3450	3900	2500	5000	4000
Height	mm	2600	2770	2800	3650	3650	4300	4850	5400	5300	5400	5740	6980	7500	7500	7840	8500
Weight	T	1.8	2.7	4.5	6.7	7	13	17	21	31	52	59	80	110	140	154	172

5 People watching this product now!

Description

The HARSLE 1250 ton hydraulic press is an industrial-grade solution engineered for heavy-duty forming operations such as deep drawing, punching, metal stamping, and composite molding. Built with a robust frame structure and equipped with high-capacity cylinders, this machine provides stable force output and exceptional durability for large-scale production environments.

Key Features:

High Tonnage Capacity: With 1250 tons of pressing force, it can handle thick and hard materials with ease, ensuring deformation precision across complex shapes.
Precision Hydraulic System: The press utilizes a closed-loop hydraulic system that ensures consistent pressure control and smooth operation throughout the cycle.
Advanced Control Panel: Featuring PLC or optional CNC control systems, the operator can monitor and adjust pressure, stroke, and speed settings with ease.
Customizable Design: Available in various bed sizes and stroke lengths to suit customer-specific requirements.
Energy Efficient Operation: Integrated with energy-saving components and intelligent control logic to minimize power consumption.

Whether used in automotive, aerospace, appliance, or metal fabrication industries, this press is built to boost productivity while maintaining consistent quality standards.
