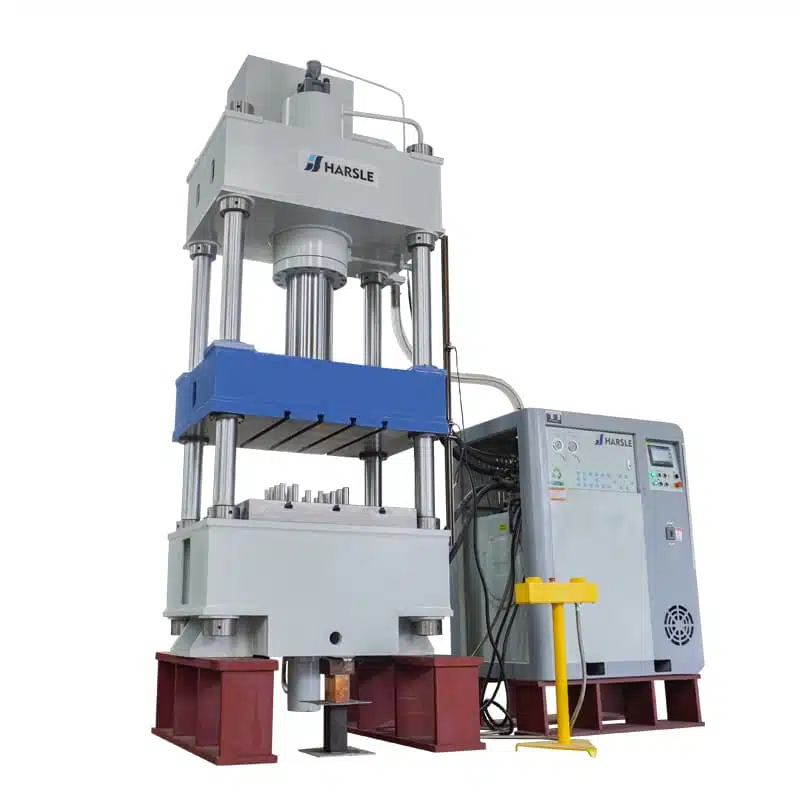

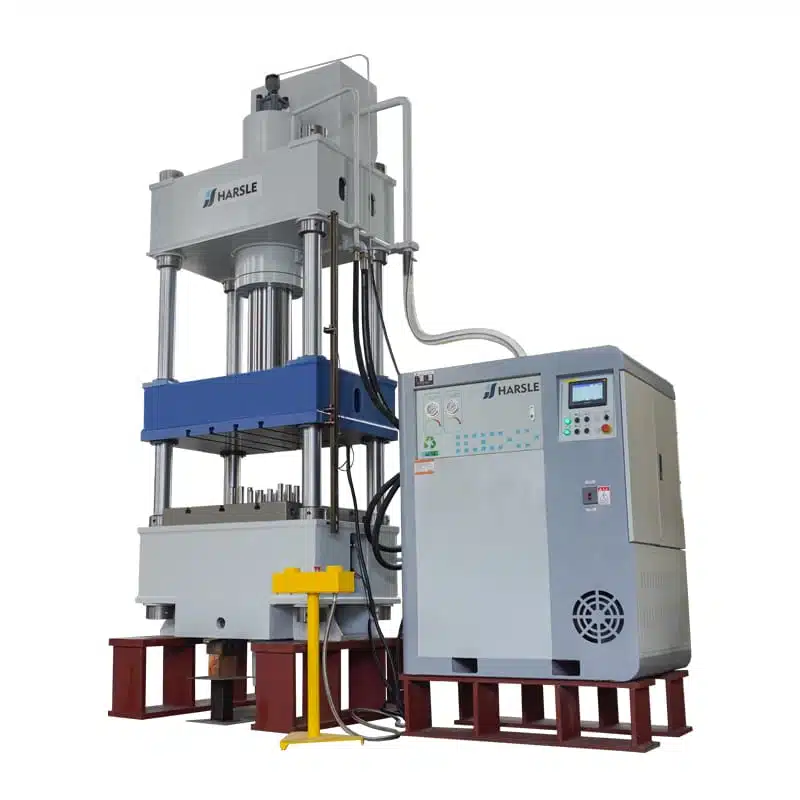

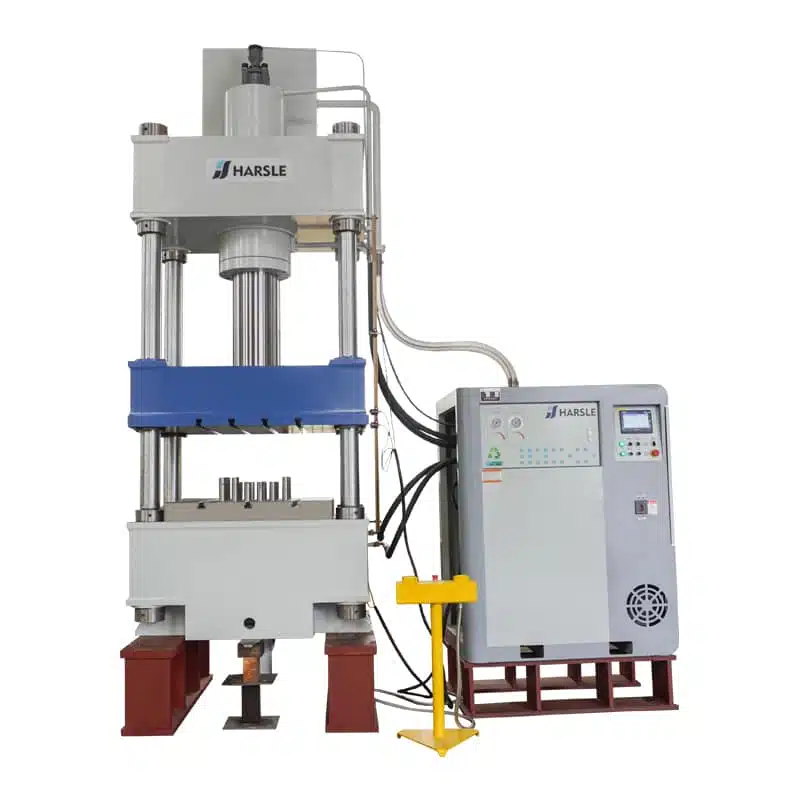

Y27-200T Hydraulic Press for Deep Drawing Applications
The Y27-200T Hydraulic Press is specifically designed for deep drawing applications, offering exceptional force and precision. With its robust construction and advanced technology, this machine ensures high productivity and reliability in manufacturing processes. Ideal for various materials, it delivers consistent results, making it a valuable asset for any production line.
100 in stock
Y27 Four-Column Single-Movement Hydraulic Press
| Item | Unit | Y27-200T | Y27-250T | Y27-315T | Y27-400T | Y27-500T | Y27-630T | Y27-800T | Y27-1000T | Y27-1250T | Y27-1600T | Y27-2000T | Y27-2500T | Y27-3000T |
| Nominal Force | KN | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 30000 |
| Return Force | KN | 240 | 400 | 600 | 500 | 900 | 850 | 900 | 1250 | 1250 | 2000 | 2000 | 2250 | 2250 |
| Cushion Pressure | KN | 400 | 400 | 630 | 630 | 1600 | 2000 | 2000 | 1600 | 1600 | 2400 | 2400 | 3000 | 3000 |
| Cushion Stroke | mm | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 365 | 400 | 400 | 350 | 400 | 400 |
| Daylight | mm | 1120 | 1120 | 1200 | 1250 | 1500 | 1500 | 1500 | 1800 | 1800 | 2000 | 2100 | 2000 | 2500 |
| Slide Stroke | mm | 710 | 710 | 800 | 800 | 900 | 900 | 900 | 1000 | 1000 | 1200 | 1300 | 1100 | 1600 |
| Table Height | mm | 700 | 700 | 750 | 750 | 700 | 500 | 500 | 900 | 400 | 400 | 350 | 350 | 350 |
| T Slot | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Type | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | |
| Servo Motor Power | KW | 15 | 15 | 22 | 22 | 30 | 48 | 48 | 60 | 72 | 92 | 94 | 110 | 150 |
| Worktable Size(L-R) | mm | 900 | 1000 | 1200 | 1200 | 1400 | 1600 | 3200 | 3200 | 4000 | 4000 | 4500 | 4500 | 4500 |
| Worktable Size(F-B) | mm | 900 | 1000 | 1200 | 1200 | 1400 | 1600 | 2200 | 2300 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Cushion(L-R) | mm | 660 | 700 | 800 | 820 | 900 | 1120 | 2250 | 2250 | 3370 | 3820 | 3750 | 3820 | 3820 |
| Cushion(F-B) | mm | 600 | 600 | 650 | 650 | 900 | 1120 | 1700 | 1800 | 1870 | 1870 | 1800 | 1700 | 1600 |
| Descent Speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 | 300 | 300 | 350 | 350 | 350 | 350 | 350 |
| Pressing Speed | mm/s | 5-12 | 4-10 | 5-12 | 4-10 | 4-10 | 5-12 | 8-22 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 |
| Return Speed | mm/s | 70 | 60 | 60 | 60 | 50 | 60 | 200 | 250 | 300 | 300 | 300 | 300 | 300 |
| Length(L-R) | mm | 2450 | 2600 | 2850 | 3150 | 3800 | 4150 | 5400 | 5400 | 6200 | 6200 | 6700 | 6700 | 6700 |
| Width(F-B) | mm | 1300 | 1300 | 1500 | 2300 | 2600 | 2600 | 2900 | 3000 | 3200 | 3200 | 3300 | 3300 | 3300 |
| Weight | T | 9.5 | 11 | 15.5 | 26 | 39 | 84 | 106 | 158 | 187 | 220 | 275 | 345 |
5
People watching this product now!
Description
The Y27-200T Hydraulic Press is designed for high-performance deep drawing applications in various industries. With a powerful 200-ton capacity, it ensures precision and durability for shaping metal parts.
Key Features:
- High Capacity: 200-ton force, ideal for deep drawing of thick metal sheets.
- Precise Operation: Advanced hydraulic system for stable and consistent performance.
- Durable Design: Built with high-strength materials to ensure longevity.
- Versatile Applications: Suitable for automotive, aerospace, and metal processing industries.
Maximize your production efficiency with this reliable, high-quality hydraulic press.
WHAT WE OFFER
Product Features Overview
Slider
The precise slider movement ensures stable, accurate pressing, enhancing product consistency and reducing wear.
Oil Cylinder
The durable oil cylinder provides powerful, reliable force, ensuring efficient and stable hydraulic operations.
Touch Screen
User-friendly touch screen offers intuitive control, enabling easy operation and real-time monitoring of parameters.
IOT Module
The IOT module enables remote monitoring and diagnostics, ensuring timely maintenance and reducing downtime.
Automatic Lubrication System
The automatic lubrication system ensures consistent performance, reducing friction and extending component lifespan.
Hydraulic Cushion
Hydraulic cushion optimizes force distribution, providing enhanced precision and minimizing deformation in complex press operations.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. Weโre proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ 5/5
Exceptional Quality and Performance!
We’ve been using HARSLEโs hydraulic press for three years and are very satisfied with its quality and the excellent after-sales service.
Germany
★★★★★ 5/5
Outstanding Service Every Time!
Weโve used HARSLEโs hydraulic press for three years and are very satisfied with both the quality and the exceptional after-sales service.
USA
Most Popular Questions
We offer a variety of hydraulic presses, including four-column presses, C-frame presses, and servo-controlled presses, each designed for different applications and industries.
The maximum tonnage capacity varies by model, ranging from small presses suitable for light applications to heavy-duty presses capable of handling up to several hundred tons.
Our hydraulic presses can process various materials, including metals, plastics, rubber, and composites, depending on the specific application and tooling used.
Yes, we offer customization options to meet specific production requirements, including modifications in size, force, and additional features.
Our hydraulic presses are equipped with several safety features, such as emergency stop buttons, safety guards, and pressure sensors to ensure safe operation.
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
We offer installation services and comprehensive training for your staff to ensure that the hydraulic press is set up correctly and operated efficiently.
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your hydraulic press.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our hydraulic presses.
Get Your Custom Quote Today!
Discover how HARSLE can meet your metalworking needs. Click below to send your inquiry and receive a tailored solution from our expert team. Let's work together for your success!
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2450 × 1300 × 3500 mm |
| Function |
Forming |
| Lead Time |
45 Days |
| Brand |
HARSLE |
| Payment Term |
LC ,TT |
| Price Term |
EXW |
| Warranty |
3 Years |
