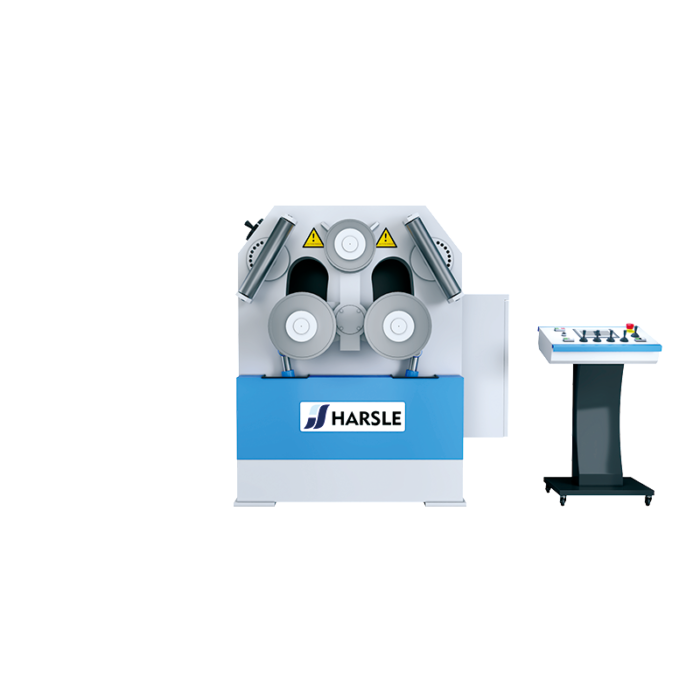

3 Roll Bending Machine Profiles for Precision Forming
Original price was: $12,000.$10,800Current price is: $10,800.Set
The 3 roll bending machine profiles solution is designed for accurate and efficient bending of metal profiles such as angles, channels, pipes, and custom sections. With a stable three-roll structure, this machine ensures smooth feeding, controlled bending force, and consistent forming results. It is widely used in metal fabrication, construction, steel structure production, and industrial manufacturing, offering reliable performance, easy operation, and flexible bending capabilities for various profile shapes and materials.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
W24S-16 Tube and Profile Roll Bending Machine
| Specification | Unit | Value |
| The maximum bending modulus of the profile | cm³ | 16 |
| Bending speed | m/min | 5 |
| Profile yield limit | MPa | 25 |
| Angle steel incurvation(Max. section size) | mm | 80*8 |
| Angle steel incurvation(Min. bending diameter) | mm | 650 |
| Angle steel incurvation(Min. bending diameter) | mm | 30*3 |
| Angle steel incurvation(Min. bending diameter) | mm | 550 |
| Angle steel excurvation(Max. section size) | mm | 80*8 |
| Angle steel excurvation(Min. bending diameter) | mm | 800 |
| Angle steel excurvation(Min. section size) | mm | 30*3 |
| Angle steel excurvation(Min. bending diameter) | mm | 550 |
| Channel steel excurvation(Max. section size) | mm | 12 |
| Channel steel excurvation(Min. bending diameter) | mm | 800 |
| Channel steel incurvation(Max. section size) | mm | 12 |
| Channel steel incurvation(Min. bending diameter) | mm | 900 |
| Flat steel horizontal bending(Max. section size) | mm | 15025 |
| Flat steel horizontal bending(Min. bending diameter) | mm | 700 |
| Flat steel vertical bending(Max. section size) | mm | 75*12 |
| Flat steel vertical bending(Min. bending diameter) | mm | 760 |
| Round pipe bending(Max. section size) | mm | 76*4.5 |
| Round pipe bending(Min. bending diameter) | mm | 750 |
| Round steel bending(Max. section size) | mm | 52 |
| Round steel bending(Min. bending diameter) | mm | 600 |
| Square pipe bending(Max. section size) | mm | 60*4 |
| Square pipe bending(Min. bending diameter) | mm | 900 |
| Motor power | kw | 5.5 |
| Dimension | mm | 1200*1700*1400 |
| Weight | Weight | 3200 |
9
People watching this product now!
Description
The 3 roll bending machine profiles system is an ideal solution for bending a wide range of metal profiles with high precision and repeatability. Designed for angle steel, flat bars, square tubes, round pipes, channels, and customized profiles, this machine provides excellent control over bending radius and profile deformation. Its three-roll configuration allows continuous bending while maintaining strong material support, reducing distortion and improving overall forming quality.
This machine is commonly applied in steel structure fabrication, architectural components, shipbuilding, transportation equipment, and general metalworking industries. The robust frame and optimized roll layout ensure stable operation even under heavy loads, while the adjustable rolls allow quick adaptation to different profile sizes and shapes. Operators benefit from smooth bending processes, reduced setup time, and consistent results across batch production.
Advanced control options, including manual, NC, or CNC systems, enable precise adjustment of bending parameters, making the machine suitable for both simple and complex profile bending tasks. With reliable performance and long service life, the 3 roll bending machine profiles solution helps manufacturers improve productivity while maintaining high forming accuracy.
Key Features:
-
Stable three-roll structure for consistent profile bending
-
Suitable for angles, channels, pipes, tubes, and custom profiles
-
Adjustable rolls for flexible bending radius control
-
High-strength frame for heavy-duty applications
-
Optional NC or CNC control for improved accuracy and efficiency
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Ocena 5 z 5
Exceptional Quality and Performance!
We’ve been using HARSLE’s rolling machine for three years and are very satisfied with its quality and excellent customer service throughout this period.
Germany
★★★★★ Ocena 5 z 5
Outstanding Service Every Time!
We’ve used HARSLE’s rolling machine for three years and are consistently impressed with its quality and excellent customer service.
USA
Most Popular Questions
What is a plate rolling machine and how does it work?
A plate rolling machine (also called a plate bending machine or plate roll) uses a set of rollers to bend flat metal sheets and plates into curved shapes such as cylinders, cones, and arcs. The workpiece is fed between the rollers, and by adjusting the position and pressure of the rollers, the metal is progressively formed to the desired curvature. CNC-controlled models allow precise diameter and shape programming for consistent, repeatable results.
What types of rolling machines do you offer?
We offer a comprehensive range of plate rolling machines including 2-roll initial pinch rolling machines, 3-roll symmetrical and asymmetrical rolling machines, and 4-roll CNC plate rolling machines. Our lineup covers light-duty models for thin sheet work as well as heavy-duty machines for thick plate bending, with rolling widths from 1,000 mm to over 12,000 mm and capacities for plates up to 200 mm thick.
What materials and thicknesses can your rolling machines process?
Our plate rolling machines can process a wide variety of metals including carbon steel, stainless steel, aluminum, copper, titanium, and alloy steel. Depending on the model, they handle plate thicknesses from 2 mm up to 200 mm and rolling widths up to 12,000 mm or more. The specific capacity depends on the material's yield strength and the machine's roller diameter and driving power.
What is the difference between 3-roll and 4-roll plate rolling machines?
A 3-roll plate rolling machine uses one top roll and two bottom rolls, requiring the plate to be pre-bent or repositioned for the leading edge. A 4-roll machine adds an additional side roll that grips and pre-bends the plate edge without removal, enabling faster setup, easier operation, and higher precision. 4-roll machines are ideal for high-volume production and tight-tolerance cylindrical work, while 3-roll machines are more cost-effective for general rolling tasks.
What minimum and maximum diameters can your rolling machines achieve?
The minimum rolling diameter is typically 1.2 to 1.5 times the top roller diameter, depending on plate thickness and material. Our machines can produce cylinders with diameters ranging from as small as 200 mm to virtually unlimited large diameters for gentle curves. We can recommend the optimal machine model and roller configuration to meet your specific diameter and curvature requirements.
Can your rolling machines produce cones and other non-cylindrical shapes?
Yes, our plate rolling machines are capable of producing cones, elliptical shapes, multi-radius curves, and other non-cylindrical profiles. Cone rolling is achieved by tilting or independently adjusting the side rolls to create a differential curvature across the plate width. CNC-controlled models offer programmable cone rolling with automatic compensation for precise taper angles and consistent results.
What CNC control features are available on your rolling machines?
Our CNC plate rolling machines feature advanced control systems with touchscreen HMI, automatic roller positioning, real-time curvature monitoring, and programmable rolling sequences. The CNC system stores multiple part programs, supports diameter and radius input, and provides automatic spring-back compensation. This ensures high repeatability, minimal operator intervention, and consistent quality across production batches.
What safety features do your plate rolling machines include?
All our rolling machines are equipped with comprehensive safety features including emergency stop buttons on both sides of the machine, foot pedal controls for hands-free operation, safety interlocks, overload protection, and CE-compliant safety guards. Larger models include light curtain barriers, anti-drop roller locks, and wired/wireless remote pendants to allow the operator to maintain a safe distance during rolling operations.
What is the typical lead time and warranty period?
Standard production lead time for our plate rolling machines is 30 to 75 days depending on the model, size, and configuration. We offer a 12-month warranty covering manufacturing defects on the entire machine, with extended warranty options available. Spare parts supply, technical documentation, and lifetime technical support are included as part of our comprehensive after-sales service commitment.
Do you provide installation, training, and after-sales service?
Yes, we provide full installation and commissioning services, hands-on operator training, and comprehensive after-sales support. Our engineers can travel to your facility for machine setup, alignment, calibration, and training. We also offer remote technical assistance via video call, preventive maintenance guidance, and fast spare parts delivery worldwide to keep your rolling machine running at peak performance.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1750 × 2439 mm |
| Brand | HARSLE |
| Function | Rolling |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 1 Year |
