63 Ton Electric Hydraulic Shop Press for Sale

Name: 63 Ton Electric Hydraulic Shop Press for Sale | HARSLE
SKU: HS20256175
Price: 8400 USD
Availability: InStock

Original price was: $9,600.Current price is: $8,400.Set

The 63 ton electric hydraulic shop press is a powerful and versatile machine designed for industrial metal forming, bending, straightening, and pressing applications. Featuring electric-hydraulic drive and durable welded steel construction, it delivers high accuracy and long service life. Ideal for automotive workshops, manufacturing plants, and metal fabrication shops, this press offers easy operation, low maintenance, and excellent efficiency, making it an essential tool for any heavy-duty pressing task.

100 in stock

Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.

Compare

Add to wishlist

SEND INQUIRY

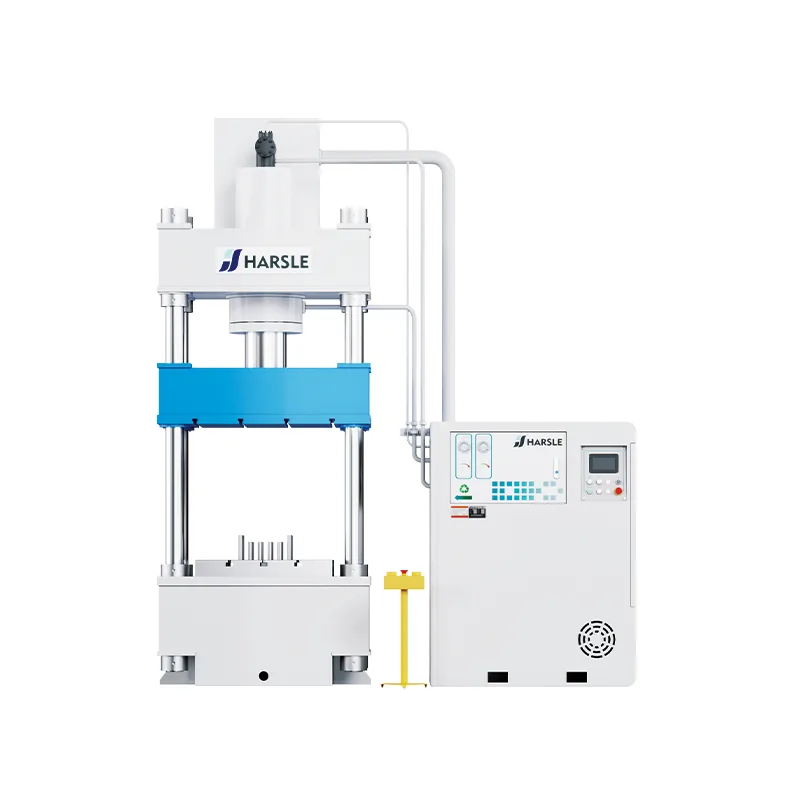

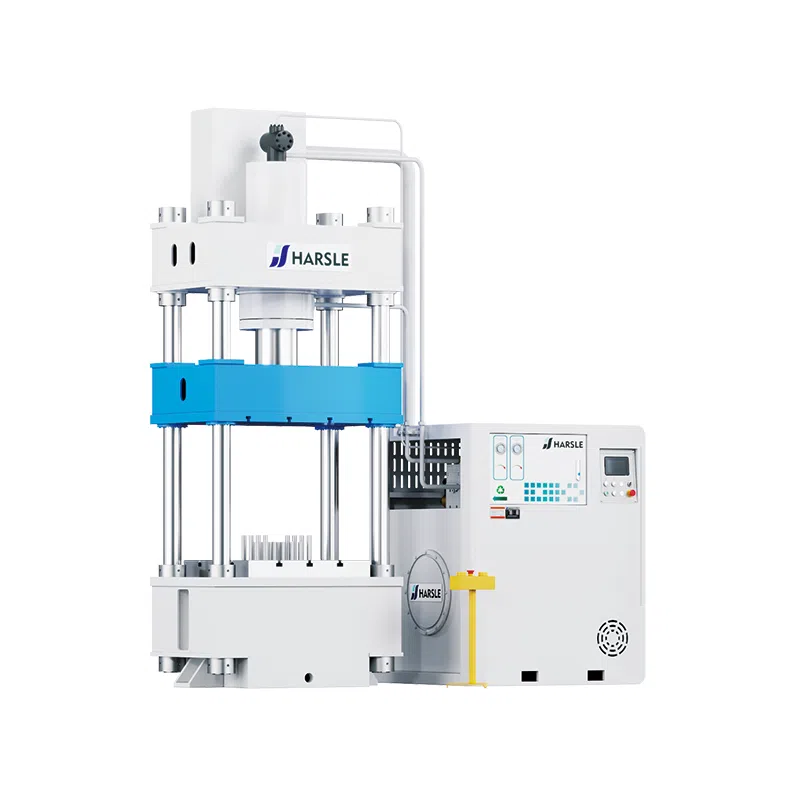

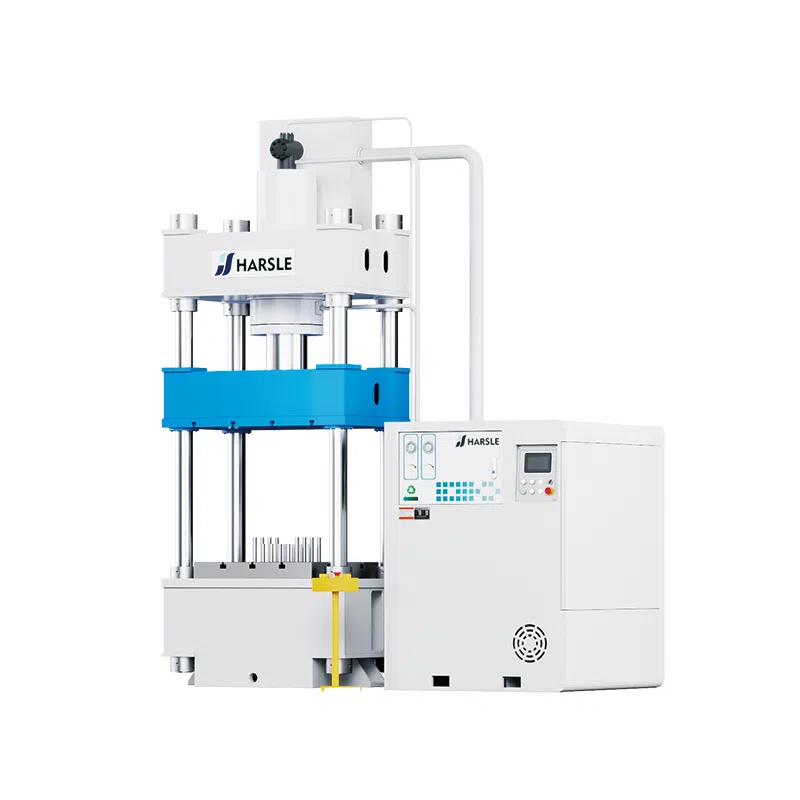

Y27 Four-Column Single-Movement Hydraulic Press

Item	Unit	Y27-200T	Y27-250T	Y27-315T	Y27-400T	Y27-500T	Y27-630T	Y27-800T	Y27-1000T	Y27-1250T	Y27-1600T	Y27-2000T	Y27-2500T	Y27-3000T
Nominal Force	KN	2000	2500	3150	4000	5000	6300	8000	10000	12500	16000	20000	25000	30000
Return Force	KN	240	400	600	500	900	850	900	1250	1250	2000	2000	2250	2250
Cushion Pressure	KN	400	400	630	630	1600	2000	2000	1600	1600	2400	2400	3000	3000
Cushion Stroke	mm	250	250	300	300	300	350	350	365	400	400	350	400	400
Daylight	mm	1120	1120	1200	1250	1500	1500	1500	1800	1800	2000	2100	2000	2500
Slide Stroke	mm	710	710	800	800	900	900	900	1000	1000	1200	1300	1100	1600
Table Height	mm	700	700	750	750	700	500	500	900	400	400	350	350	350
T Slot		Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Type		Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Servo Motor Power	KW	15	15	22	22	30	48	48	60	72	92	94	110	150
Worktable Size(L-R)	mm	900	1000	1200	1200	1400	1600	3200	3200	4000	4000	4500	4500	4500
Worktable Size(F-B)	mm	900	1000	1200	1200	1400	1600	2200	2300	2500	2500	2500	2500	2500
Cushion(L-R)	mm	660	700	800	820	900	1120	2250	2250	3370	3820	3750	3820	3820
Cushion(F-B)	mm	600	600	650	650	900	1120	1700	1800	1870	1870	1800	1700	1600
Descent Speed	mm/s	80	100	100	100	100	100	300	300	350	350	350	350	350
Pressing Speed	mm/s	5-12	4-10	5-12	4-10	4-10	5-12	8-22	12-30	12-30	12-30	12-30	12-30	12-30
Return Speed	mm/s	70	60	60	60	50	60	200	250	300	300	300	300	300
Length(L-R)	mm	2450	2600	2850	3150	3800	4150	5400	5400	6200	6200	6700	6700	6700
Width(F-B)	mm	1300	1300	1500	2300	2600	2600	2900	3000	3200	3200	3300	3300	3300
Weight	T	9.5	11	15.5		26	39	84	106	158	187	220	275	345

9 People watching this product now!

Description

The 63 ton electric hydraulic shop press is a robust and high-capacity solution for a wide range of metalworking operations. Built for demanding industrial applications, this press is ideal for bending, straightening, punching, and bearing installation tasks. Its electric-hydraulic system ensures smooth and consistent pressure output, reducing manual effort and increasing production efficiency.

Key Features:

Electric-Hydraulic Power System: Ensures steady, efficient force with minimal noise, perfect for extended use in busy workshop environments.
Heavy-Duty Frame: The press is built with high-strength welded steel for maximum durability and stability under full load.
Pressure Gauge & Control: Real-time pressure feedback allows for precise control during operation, enhancing safety and performance.
Adjustable Work Table: Allows flexible positioning of materials to accommodate various pressing heights and tasks.
User-Friendly Interface: Easy-to-use control panel simplifies operation and supports quick setup for different jobs.

This 63 ton shop press is widely used in automotive, aerospace, and heavy equipment repair industries. Its compact footprint combined with strong performance makes it a smart investment for manufacturers looking to improve workflow and reduce downtime.

WHAT WE OFFER

Product Features Overview

Trusted Global Partners

Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.

Why Choose HARSLE

Direct Manufacturer

Factory direct, no middlemen, ensuring the best prices for our customers.

3-Year Warranty

Enjoy peace of mind with a three-year warranty and free parts replacement.

Multilingual Support

Our multilingual team ensures efficient communication for all your needs.

Timely Delivery

The machines are delivered on time, ensuring our customers receive them promptly.

Quality Assurance

Comprehensive quality checks guarantee the quality of every machine.

Localized Service

We provide prompt, localized service in multiple countries for your convenience.

Testimonials

Hear What Our Customers Say

At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.

Rated 5 out of 5

Exceptional Quality and Performance!

We’ve been using HARSLE’s hydraulic press for three years and are very satisfied with its quality and the excellent after-sales service.

Noah Blake

Germany

Rated 5 out of 5

Outstanding Service Every Time!

We’ve used HARSLE’s hydraulic press for three years and are very satisfied with both the quality and the exceptional after-sales service.

Liam Reed

USA

Most Popular Questions

What is a hydraulic press and how does it work?

A hydraulic press is a machine that uses hydraulic cylinders to generate a compressive force. It operates based on Pascal's principle, where pressure applied to a confined fluid is transmitted equally in all directions. This allows a small force on a small-area piston to produce a much larger force on a large-area piston, enabling powerful forming, stamping, and pressing operations.

What tonnage options are available for your hydraulic presses?

Our hydraulic presses are available in a wide range of tonnage capacities, typically from 20 tons to over 10,000 tons. We can recommend the optimal tonnage based on your specific application, material type, part geometry, and production volume requirements.

What types of hydraulic presses do you offer?

We offer a comprehensive range including four-column hydraulic presses, C-frame hydraulic presses, H-frame hydraulic presses, deep drawing hydraulic presses, and servo hydraulic presses. Each type is designed for specific applications such as stamping, forging, molding, straightening, and deep drawing operations.

What materials can be processed with your hydraulic presses?

Our hydraulic presses can process a wide variety of materials, including mild steel, stainless steel, aluminum, copper, brass, titanium, composites, rubber, and plastics. The pressing force and tooling can be tailored to suit the specific material properties and forming requirements.

What safety features are included with your hydraulic presses?

Our hydraulic presses are equipped with comprehensive safety features, including light curtains, two-hand operation controls, emergency stop buttons, overload protection, safety interlocks, and protective guards. All machines are designed to comply with CE and other international safety standards.

What applications are hydraulic presses commonly used for?

Hydraulic presses are widely used for metal forming, stamping, punching, deep drawing, forging, powder compaction, rubber and plastic molding, straightening, and assembly press-fitting. They serve industries including automotive, aerospace, appliance manufacturing, and general metalworking.

Can your hydraulic presses be customized for our specific needs?

Absolutely. We offer extensive customization options, including custom tonnage, stroke length, table size, daylight opening, speed settings, die cushion systems, heating platens, and PLC/CNC control integration. Our engineering team will work with you to design a press that perfectly matches your production requirements.

What is the typical lead time and warranty period?

The standard lead time for hydraulic press production is typically 30 to 90 days, depending on the model, tonnage, and level of customization. We provide a 12-month warranty covering manufacturing defects, with extended warranty packages available upon request.

Do you provide installation and operator training?

Yes, we provide professional on-site installation, commissioning, and comprehensive operator training. Our experienced engineers will ensure the press is properly set up, calibrated, and your team is fully trained on safe operation, routine maintenance, and troubleshooting procedures.

What after-sales support and spare parts service do you offer?

We offer comprehensive after-sales support, including 24/7 technical assistance, remote diagnostics, on-site repair services, and a readily available inventory of spare parts such as hydraulic seals, valves, cylinders, and electrical components to minimize downtime and keep your press running efficiently.
