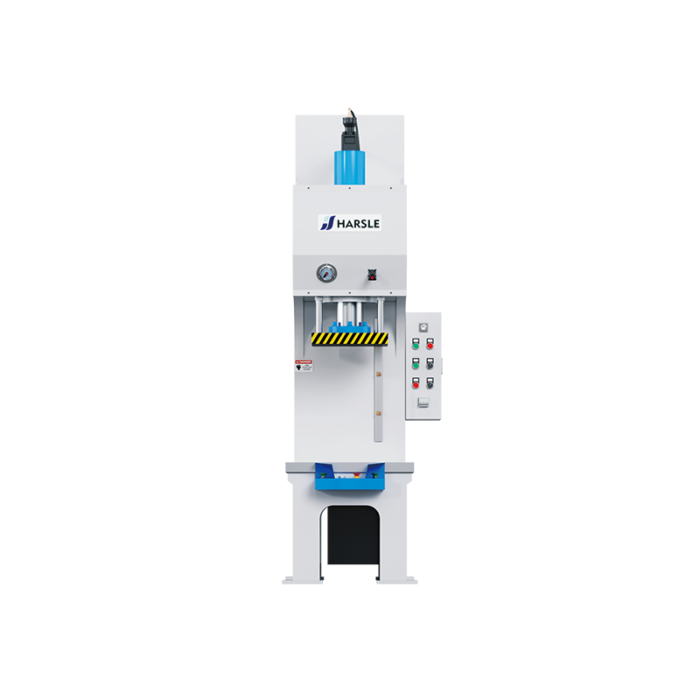

HARSLE C Frame Hydraulic Press for Industrial Use
Original price was: $9,600.$8,400Current price is: $8,400. Set
The C frame hydraulic press is designed for precision metal forming and high-efficiency production. Its open C-shaped frame allows easy access for large or irregular workpieces, improving workflow and operator convenience. Equipped with a robust hydraulic system, this press delivers consistent force for bending, punching, and shaping various metals. Ideal for automotive, aerospace, and general fabrication industries, it combines durability, accuracy, and user-friendly operation, making it a reliable choice for any workshop or production line that demands high performance and precision.
100 in stock
Note: Prices vary by model and configuration. Click "Send Inquiry" for a customized quote.
Y41 Single Column Hydraulic Press
| Item | Unit | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T |
| Nominal Force | KN | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 |
| Maximum Working Pressure | Mpa | 13 | 20 | 22.5 | 24.5 | 25.8 | 25.5 | 25.5 | 25.5 | 26.5 |
| Daylight | mm | 500 | 550 | 600 | 630 | 800 | 1000 | 1000 | 1000 | 1100 |
| Slide Stroke | mm | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 600 |
| Throat Depth | mm | 300 | 300 | 320 | 350 | 350 | 350 | 360 | 360 | 410 |
| Discharge Hole Diameter | mm | 70 | 70 | 70 | 80 | 80 | 100 | 120 | 120 | 120 |
| T Slot | ||||||||||
| Type | AC | AC | AC | AC | AC | AC | AC | AC | AC | AC |
| Capacity | KW | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 | 15 | 18.5 | 18.5/22 | 18.5/22 |
| Slide Size(L-R) | mm | 300 | 300 | 450 | 450 | 550 | 550 | 600 | 600 | 600 |
| Slide Size(F-B) | mm | 300 | 300 | 450 | 450 | 500 | 500 | 550 | 550 | 550 |
| Worktable Size(L-R) | mm | 600 | 600 | 700 | 700 | 800 | 800 | 800 | 800 | 1100 |
| Worktable Size(F-B) | mm | 500 | 500 | 550 | 650 | 650 | 650 | 660 | 660 | 800 |
| Descent | mm/s | 125 | 125 | 120 | 120 | 120 | 120 | 120 | 120 | 100 |
| Pressing | mm/s | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Return | mm/s | 110 | 110 | 100 | 100 | 90 | 90 | 90 | 90 | 95 |
| Hydraulic pad size(L-R)Optional | mm | / | / | / | 400 | 400 | 450 | 450 | 450 | 500 |
| Hydraulic pad size(F-B)Optional | mm | / | / | / | 400 | 400 | 450 | 450 | 450 | 500 |
| Oil Pump Name | mm | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump | Pressure compensation variable axial piston pump |
| Length | mm | 740 | 755 | 900 | 760 | 840 | 1000 | 1200 | 1200 | 1150 |
| Width | mm | 1140 | 1280 | 1370 | 1520 | 1570 | 1680 | 1780 | 1780 | 1800 |
| Height | mm | 1990 | 2200 | 2250 | 2550 | 2670 | 2800 | 3120 | 3120 | 3850 |
| Weight | kg | 1200 | 2000 | 2500 | 3000 | 4000 | 6800 | 9600 | 9600 | 11000 |
8
People watching this product now!
Description
The C frame hydraulic press from HARSLE is engineered to deliver reliable performance for heavy-duty metal forming tasks. Its open-frame design provides superior accessibility, making it easier to handle large, irregular, or custom-shaped workpieces. Perfect for bending, punching, shaping, and forming operations, this hydraulic press ensures consistent force distribution across the working area, reducing material deformation and enhancing precision.
Built with a robust hydraulic system, the C frame press delivers smooth, consistent pressure with adjustable stroke and tonnage settings. Operators can quickly set up and control the press for various applications, improving workflow efficiency. Its durable construction and quality components ensure long-term reliability and minimal maintenance requirements.
Key Features:
- Open C-shaped frame for maximum accessibility
- Adjustable hydraulic system for precise force control
- Heavy-duty steel construction for long-lasting durability
- Suitable for bending, punching, and forming diverse metal types
- User-friendly controls for easy operation and safety
Ideal for automotive, aerospace, and general fabrication industries, the HARSLE C frame hydraulic press combines power, accuracy, and ease of use. It is designed to enhance productivity while ensuring precise, high-quality results on every workpiece, making it an essential addition to any metalworking facility.
WHAT WE OFFER
Product Features Overview
Slider
Precision slider design ensures smooth, accurate movements, enhancing overall pressing quality and machine reliability.
Oil Cylinder
High-strength oil cylinder provides consistent, powerful force, ensuring stable, reliable hydraulic performance.
Touch Screen
Intuitive touch screen offers user-friendly operation, allowing precise adjustments and real-time monitoring.
IOT Module
The IOT module enables remote diagnostics, improving maintenance efficiency and minimizing unexpected downtime.
Light Curtain
Integrated light curtain enhances safety by automatically halting operations if any obstruction is detected.
Workbench
Durable workbench provides a stable platform, supporting precise alignment for a variety of pressing tasks.
Trusted Global Partners
Our valued partners span industries worldwide, contributing to innovative solutions and mutual growth. We’re proud to collaborate with these esteemed brands, enhancing service quality and expanding our global presence in metalworking technology.
Why Choose HARSLE
Direct Manufacturer
Factory direct, no middlemen, ensuring the best prices for our customers.
3-Year Warranty
Enjoy peace of mind with a three-year warranty and free parts replacement.
Multilingual Support
Our multilingual team ensures efficient communication for all your needs.
Timely Delivery
The machines are delivered on time, ensuring our customers receive them promptly.
Quality Assurance
Comprehensive quality checks guarantee the quality of every machine.
Localized Service
We provide prompt, localized service in multiple countries for your convenience.
Testimonials
Hear What Our Customers Say
At HARSLE, we believe in the power of collaboration. Our trusted partnerships with leading brands in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative solutions that meet the evolving needs of our clients. These partnerships not only allow us to share knowledge and expertise but also ensure that we provide high-quality machines and services. Our commitment to excellence is reflected in the strong relationships we have built, which ultimately benefit our customers. Join us in celebrating our valued partners who share our vision for quality and innovation.
★★★★★ Rated 5 out of 5
Exceptional Quality and Performance!
We’ve been using HARSLE’s hydraulic press for three years and are very satisfied with its quality and the excellent after-sales service.
Germany
★★★★★ Rated 5 out of 5
Outstanding Service Every Time!
We’ve used HARSLE’s hydraulic press for three years and are very satisfied with both the quality and the exceptional after-sales service.
USA
Most Popular Questions
What is a hydraulic press and how does it work?
A hydraulic press is a machine that uses hydraulic cylinders to generate a compressive force. It operates based on Pascal's principle, where pressure applied to a confined fluid is transmitted equally in all directions. This allows a small force on a small-area piston to produce a much larger force on a large-area piston, enabling powerful forming, stamping, and pressing operations.
What tonnage options are available for your hydraulic presses?
Our hydraulic presses are available in a wide range of tonnage capacities, typically from 20 tons to over 10,000 tons. We can recommend the optimal tonnage based on your specific application, material type, part geometry, and production volume requirements.
What types of hydraulic presses do you offer?
We offer a comprehensive range including four-column hydraulic presses, C-frame hydraulic presses, H-frame hydraulic presses, deep drawing hydraulic presses, and servo hydraulic presses. Each type is designed for specific applications such as stamping, forging, molding, straightening, and deep drawing operations.
What materials can be processed with your hydraulic presses?
Our hydraulic presses can process a wide variety of materials, including mild steel, stainless steel, aluminum, copper, brass, titanium, composites, rubber, and plastics. The pressing force and tooling can be tailored to suit the specific material properties and forming requirements.
What safety features are included with your hydraulic presses?
Our hydraulic presses are equipped with comprehensive safety features, including light curtains, two-hand operation controls, emergency stop buttons, overload protection, safety interlocks, and protective guards. All machines are designed to comply with CE and other international safety standards.
What applications are hydraulic presses commonly used for?
Hydraulic presses are widely used for metal forming, stamping, punching, deep drawing, forging, powder compaction, rubber and plastic molding, straightening, and assembly press-fitting. They serve industries including automotive, aerospace, appliance manufacturing, and general metalworking.
Can your hydraulic presses be customized for our specific needs?
Absolutely. We offer extensive customization options, including custom tonnage, stroke length, table size, daylight opening, speed settings, die cushion systems, heating platens, and PLC/CNC control integration. Our engineering team will work with you to design a press that perfectly matches your production requirements.
What is the typical lead time and warranty period?
The standard lead time for hydraulic press production is typically 30 to 90 days, depending on the model, tonnage, and level of customization. We provide a 12-month warranty covering manufacturing defects, with extended warranty packages available upon request.
Do you provide installation and operator training?
Yes, we provide professional on-site installation, commissioning, and comprehensive operator training. Our experienced engineers will ensure the press is properly set up, calibrated, and your team is fully trained on safe operation, routine maintenance, and troubleshooting procedures.
What after-sales support and spare parts service do you offer?
We offer comprehensive after-sales support, including 24/7 technical assistance, remote diagnostics, on-site repair services, and a readily available inventory of spare parts such as hydraulic seals, valves, cylinders, and electrical components to minimize downtime and keep your press running efficiently.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 2020 × 1750 × 2439 mm |
| Brand | HARSLE |
| Function | Forming |
| Lead Time | 45 Days |
| Payment Term | LC, TT |
| Price Term | EXW |
| Warranty | 1 Year |
