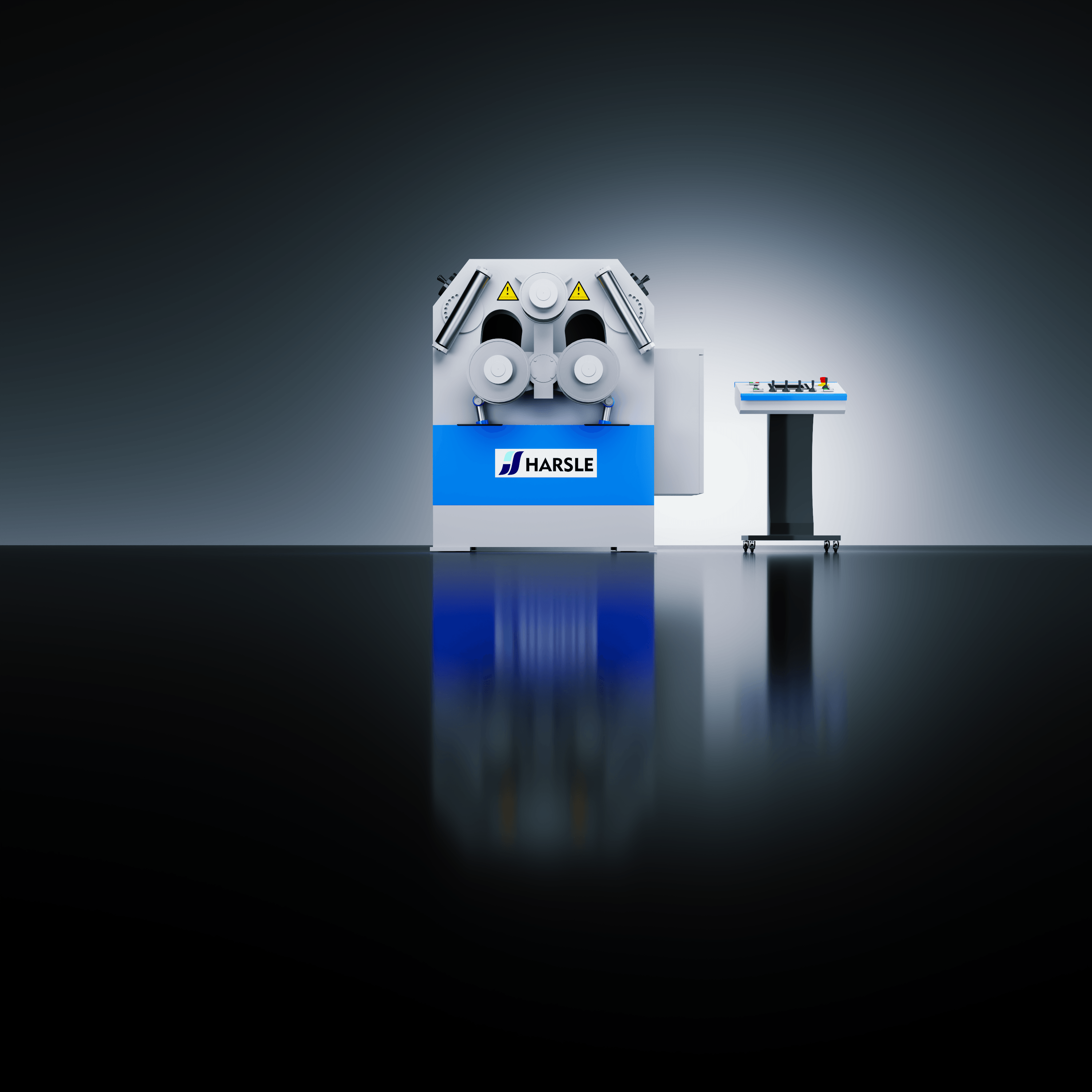

AngleRoll
Built for precise profile rolling.
Rolling Process

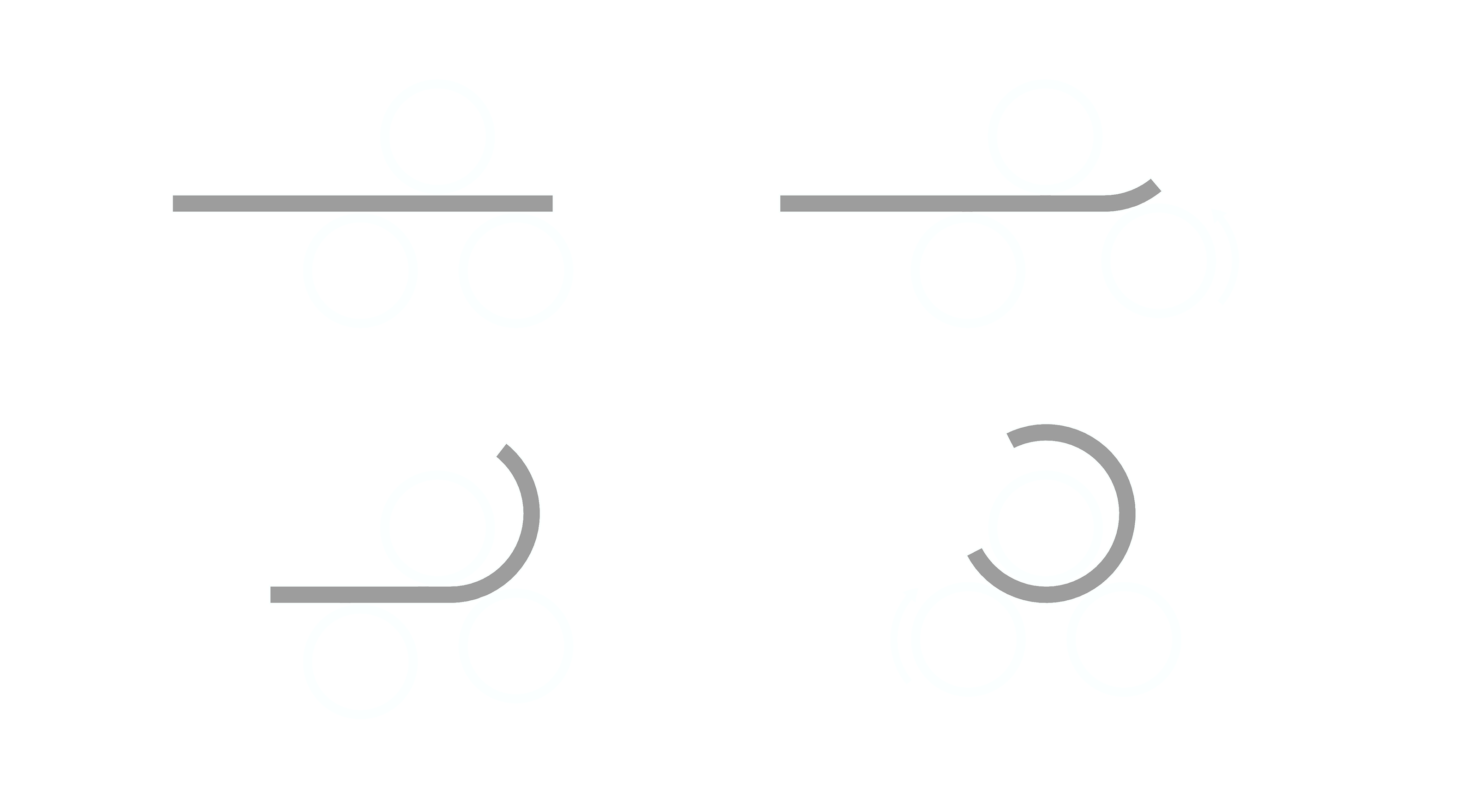

Profile Bending
The profile bending machine uses three driven rollers to apply continuous pressure on profiles, gradually forming the desired radius through controlled rolling motion.
Flexible Layout
Dual Structure

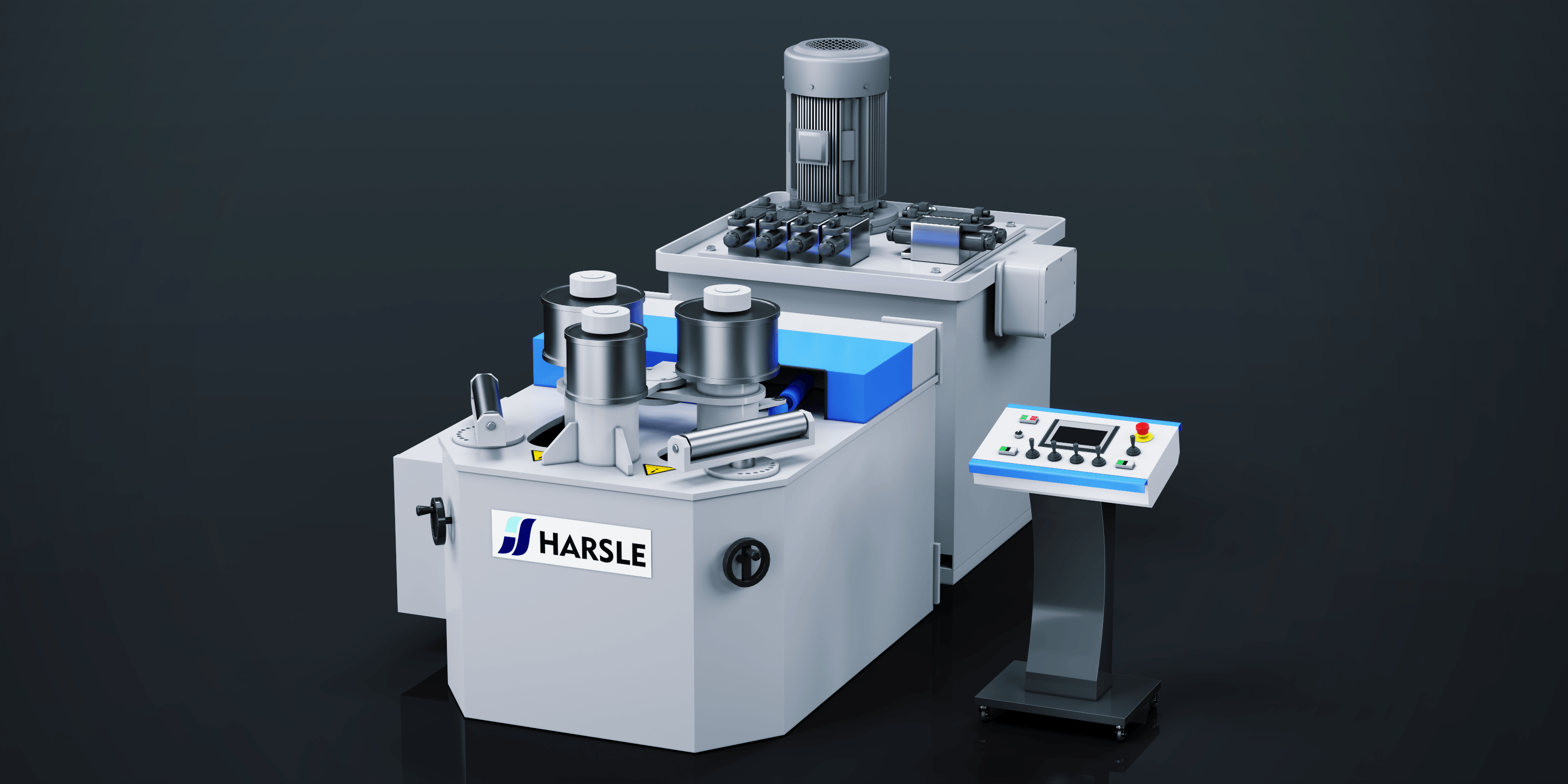

Horizontal Design
The horizontal structure offers easy material handling and is ideal for processing long and heavy profiles with stable support.
Vertical Design
The vertical structure saves floor space and is suitable for compact workshops, providing efficient bending for smaller or medium profiles.
Core System
Stable Rolling
Drive rolls and support rolls work together to ensure stable force transmission and consistent profile forming throughout the bending process.

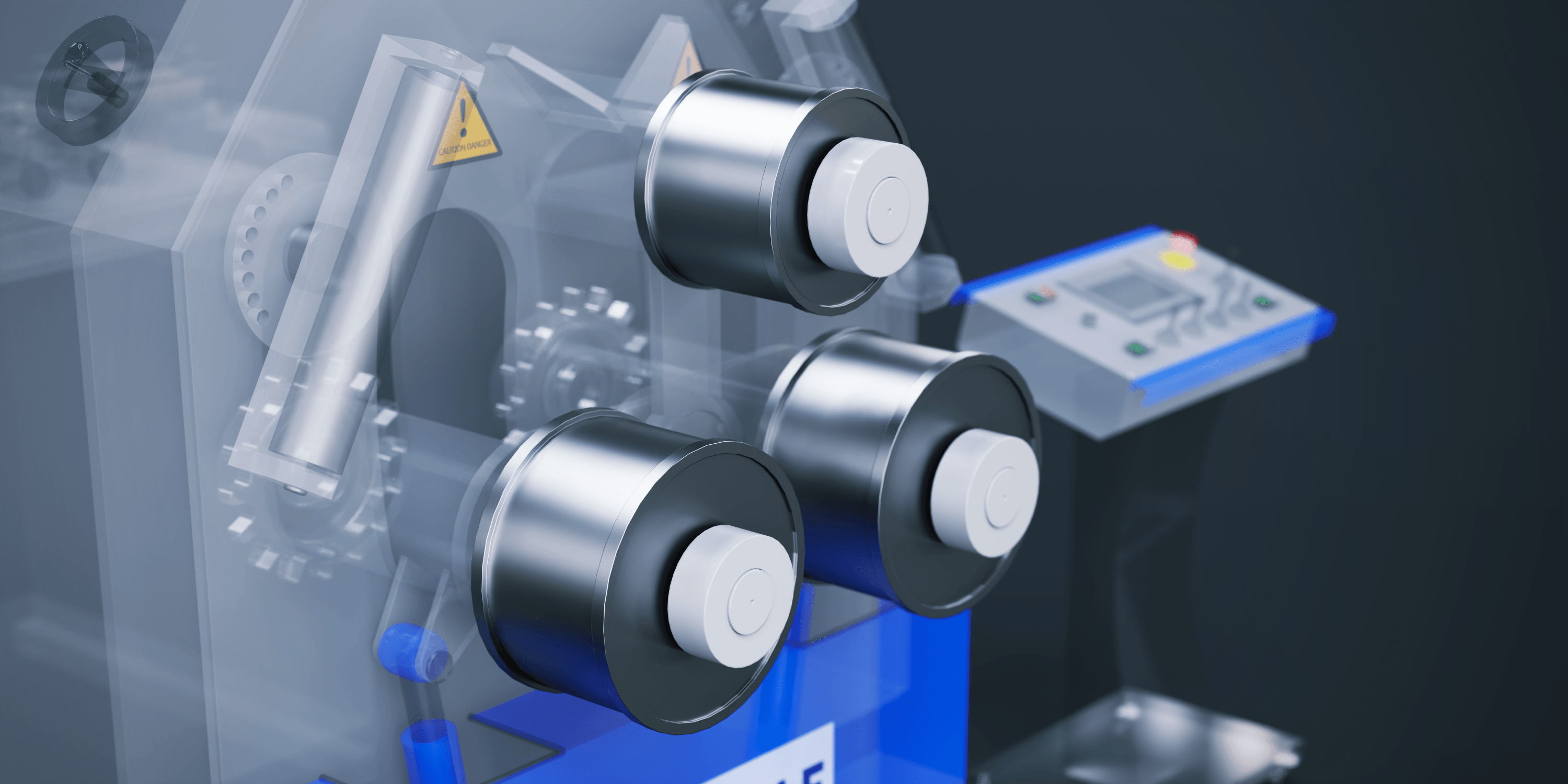

Stable Support
Drive Roll
The drive roll provides the main driving force, ensuring continuous movement and stable bending of profiles.

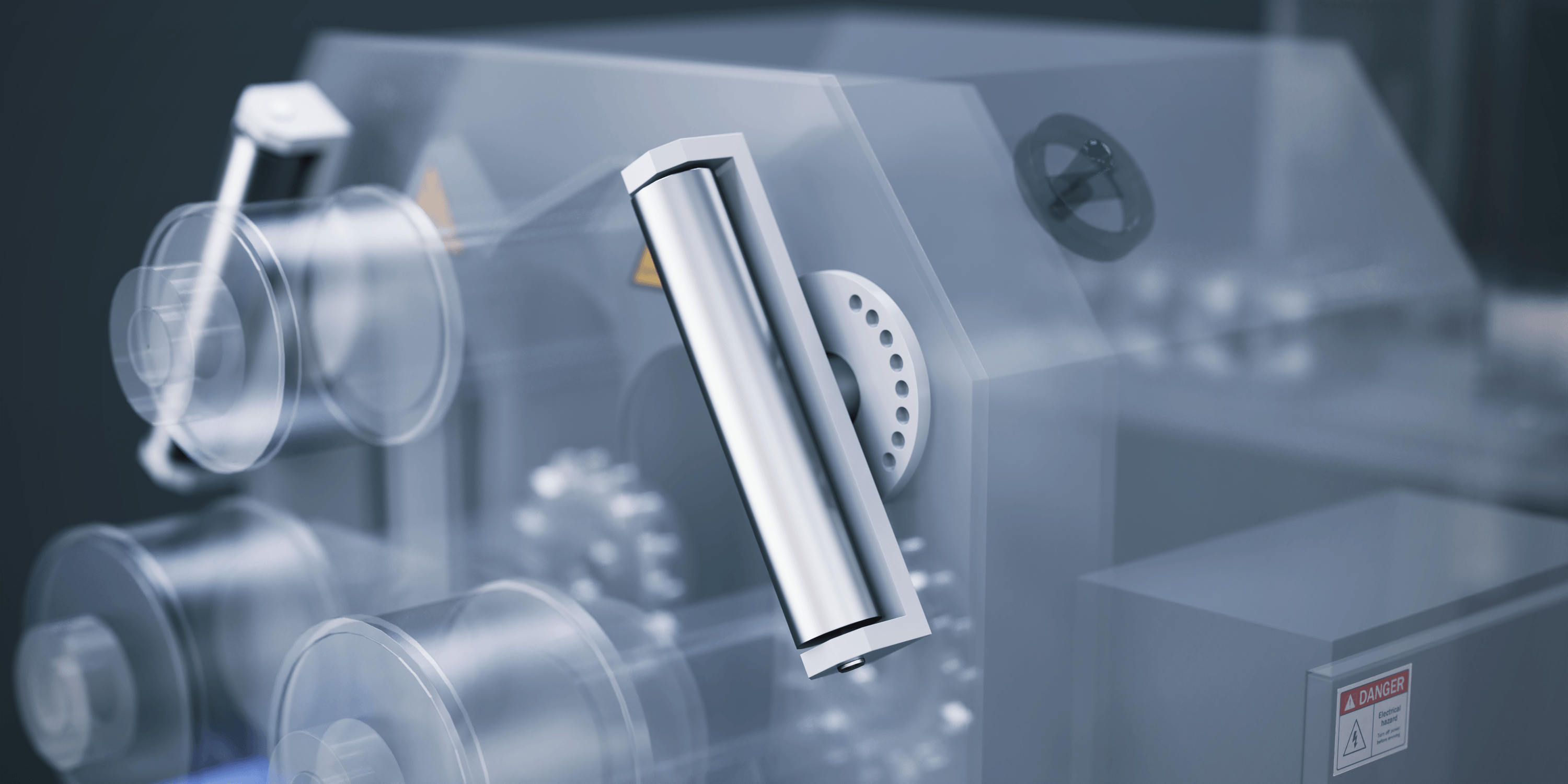

Stable Support
Support Roll
The support roll stabilizes the profile during bending, maintaining alignment and preventing deformation.
Precision System
Control & Tooling
The hydraulic system, control system, and tooling work together to ensure precise force control, accurate operation, and reliable profile forming.

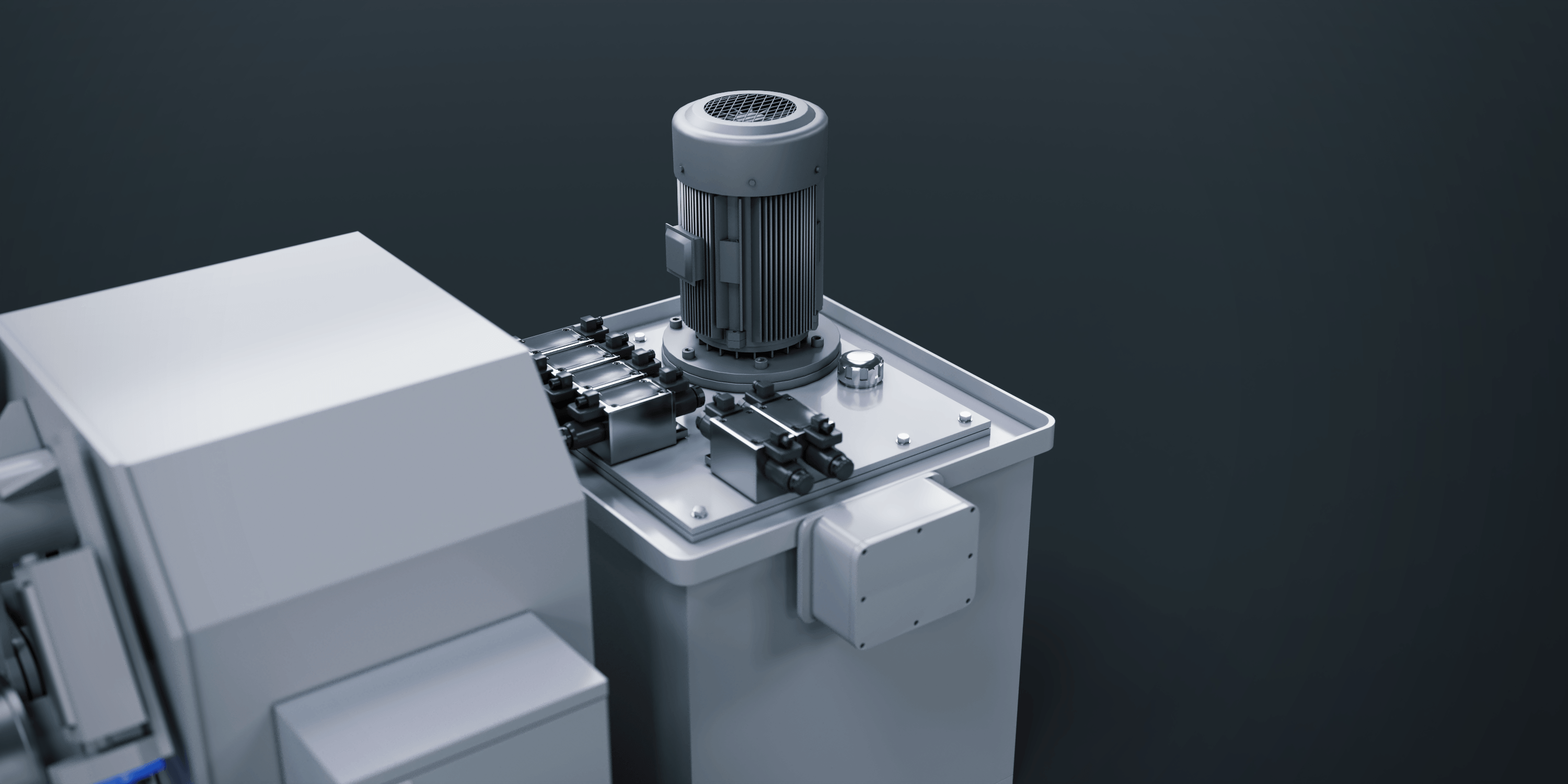

Power Control
Hydraulic System
The hydraulic system provides stable force output, ensuring smooth roll movement and reliable bending performance.

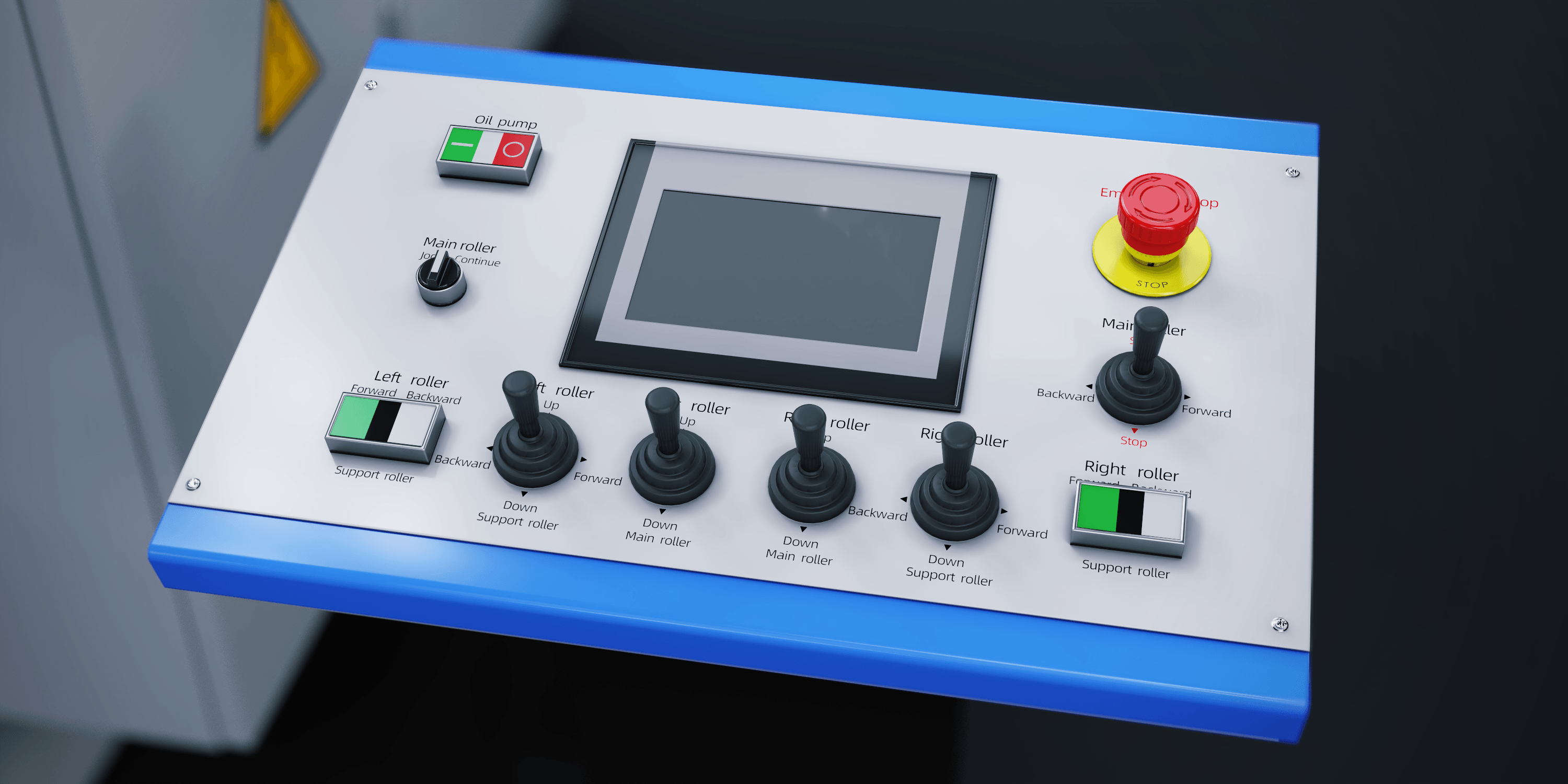

Smart Control
Control System
The control system enables precise parameter adjustment and user-friendly operation, improving efficiency and accuracy.

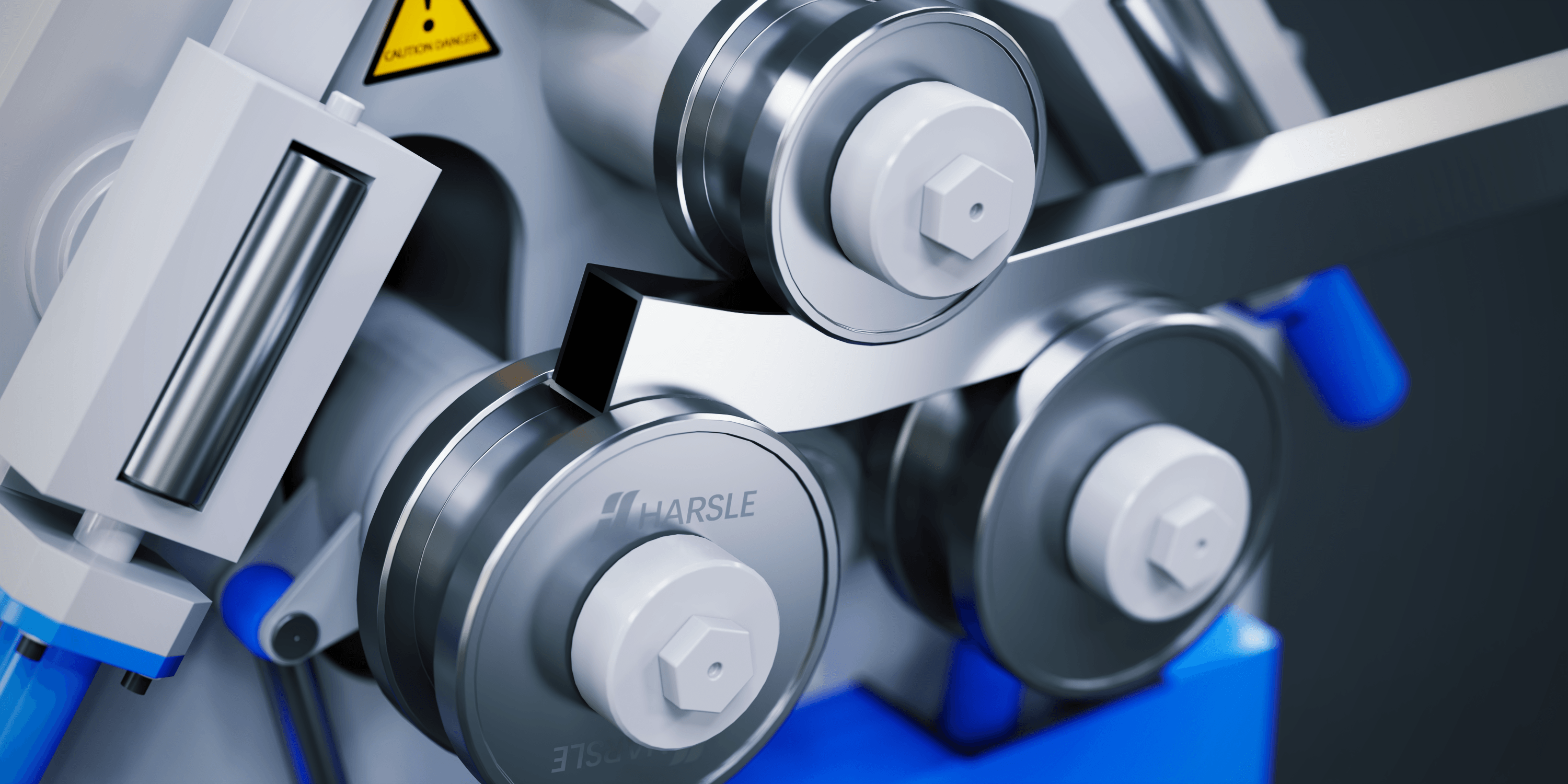

Forming Tools
Custom Molds
The tooling system ensures accurate profile shaping, supporting various materials and complex bending requirements.
01 / 03
Profile Bending
Shape Profiles with Precision
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
AngleRoll
06
06
AngleRoll
75
75
AngleRoll
180
180
AngleRoll
500
500
6 cm³
Profile Maximum Section Modulus
75 cm³
Profile Maximum Section Modulus
180 cm³
Profile Maximum Section Modulus
500 cm³
Profile Maximum Section Modulus
4~5 m/min
Bending speed
4~5 m/min
Bending speed
4~5 m/min
Bending speed
4~5 m/min
Bending speed
25 mpa
Hydraulic system pressure
25 mpa
Hydraulic system pressure
25 mpa
Hydraulic system pressure
25 mpa
Hydraulic system pressure
2 set
Cylinder quantity
8 set
Cylinder quantity
8 set
Cylinder quantity
8 set
Cylinder quantity
1 set
Motor quantity
2 set
Motor quantity
2 set
Motor quantity
2 set
Motor quantity
4 KW
Motor power
11+2.2 KW
Motor power
30+2.2 KW
Motor power
67+3 KW
Motor power
75 mm
Upper Roller Diameter
140 mm
Upper Roller Diameter
240 mm
Upper Roller Diameter
360 mm
Upper Roller Diameter
75 mm
Lower Roller Diameter
120 mm
Lower Roller Diameter
220 mm
Lower Roller Diameter
320 mm
Lower Roller Diameter
2200*1500*1500 mm
Dimension (L*W*H)
4000*2000*2000 mm
Dimension (L*W*H)
5500*2500*2300 mm
Dimension (L*W*H)
6200*3200*3000 mm
Dimension (L*W*H)
