TriRoll
Built for reliable, efficient plate rolling

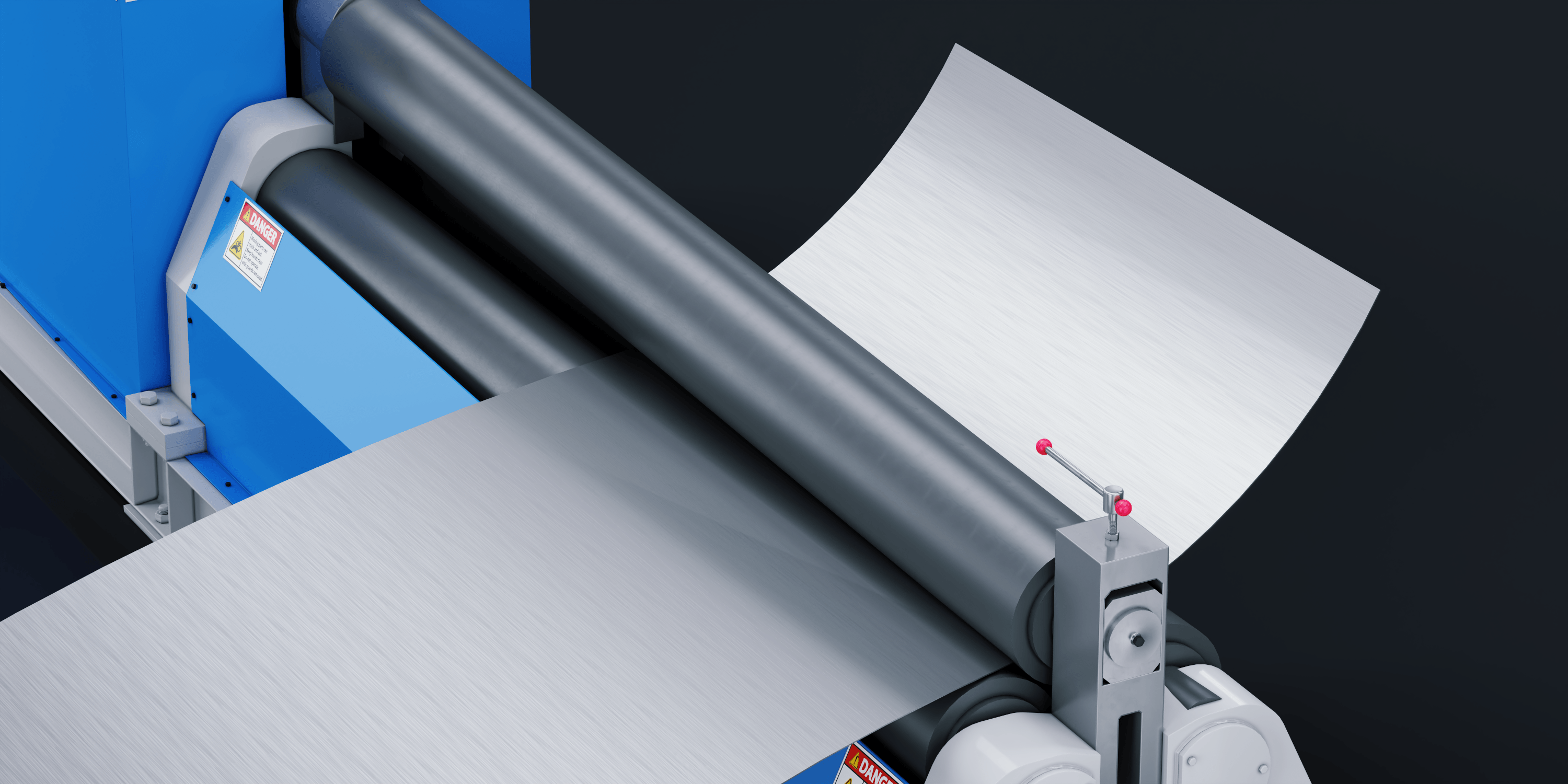

Rolling Process
Working Principle
The three-roll plate rolling machine bends metal sheets through the coordinated movement of one upper roll and two lower rolls, gradually forming the desired curvature by applying continuous pressure.
Core Power
Stable Performance
The three-roll structure and electromechanical system ensure stable force distribution and reliable power output for precise and efficient rolling.

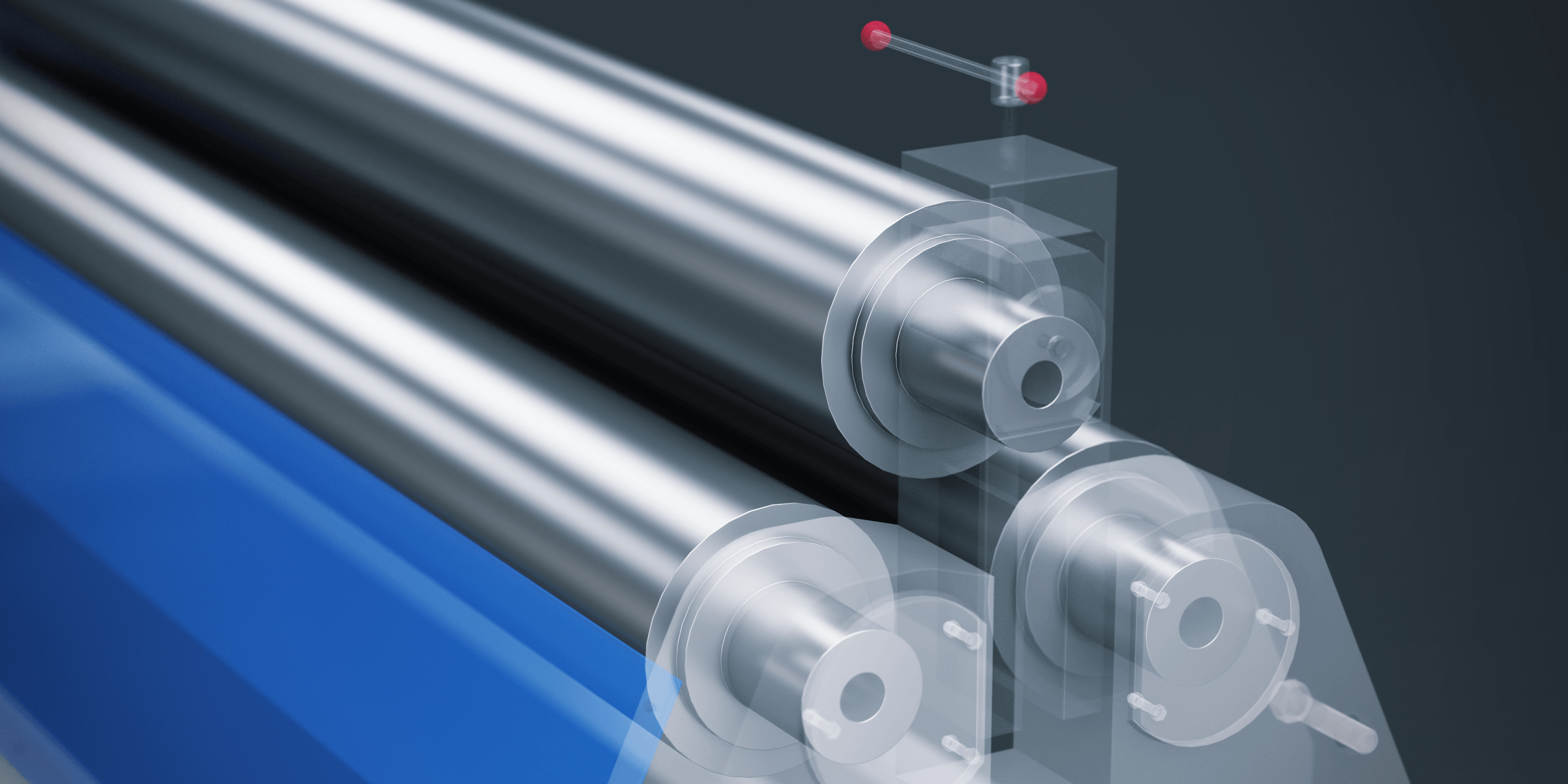

Rolling Core
Triple Rolls
The three-roll structure delivers continuous bending through coordinated movement, ensuring smooth forming and precise curvature control.

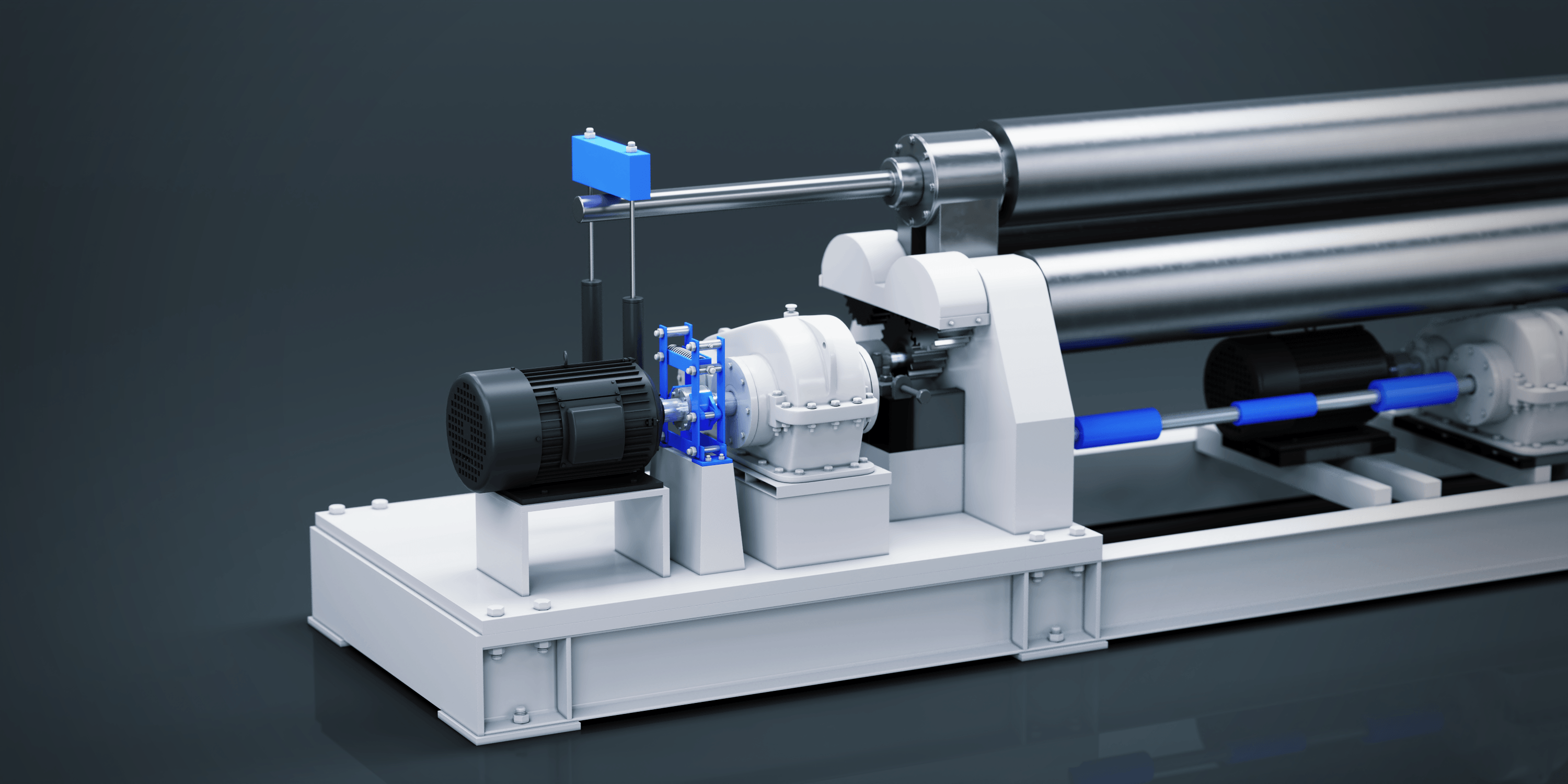

Drive Control
Power System
The electromechanical system provides stable power transmission and precise control, ensuring smooth operation and consistent rolling performance.

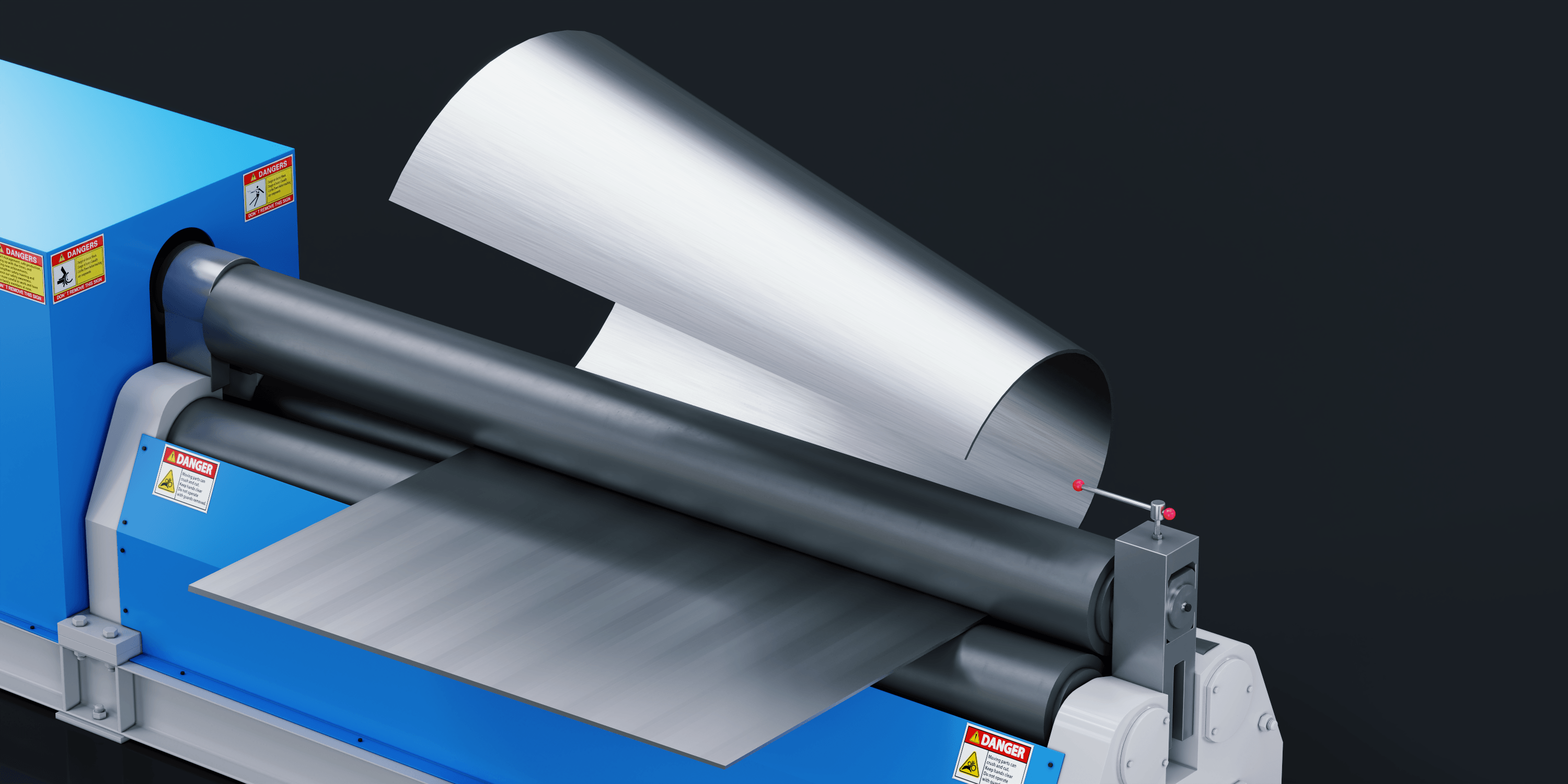

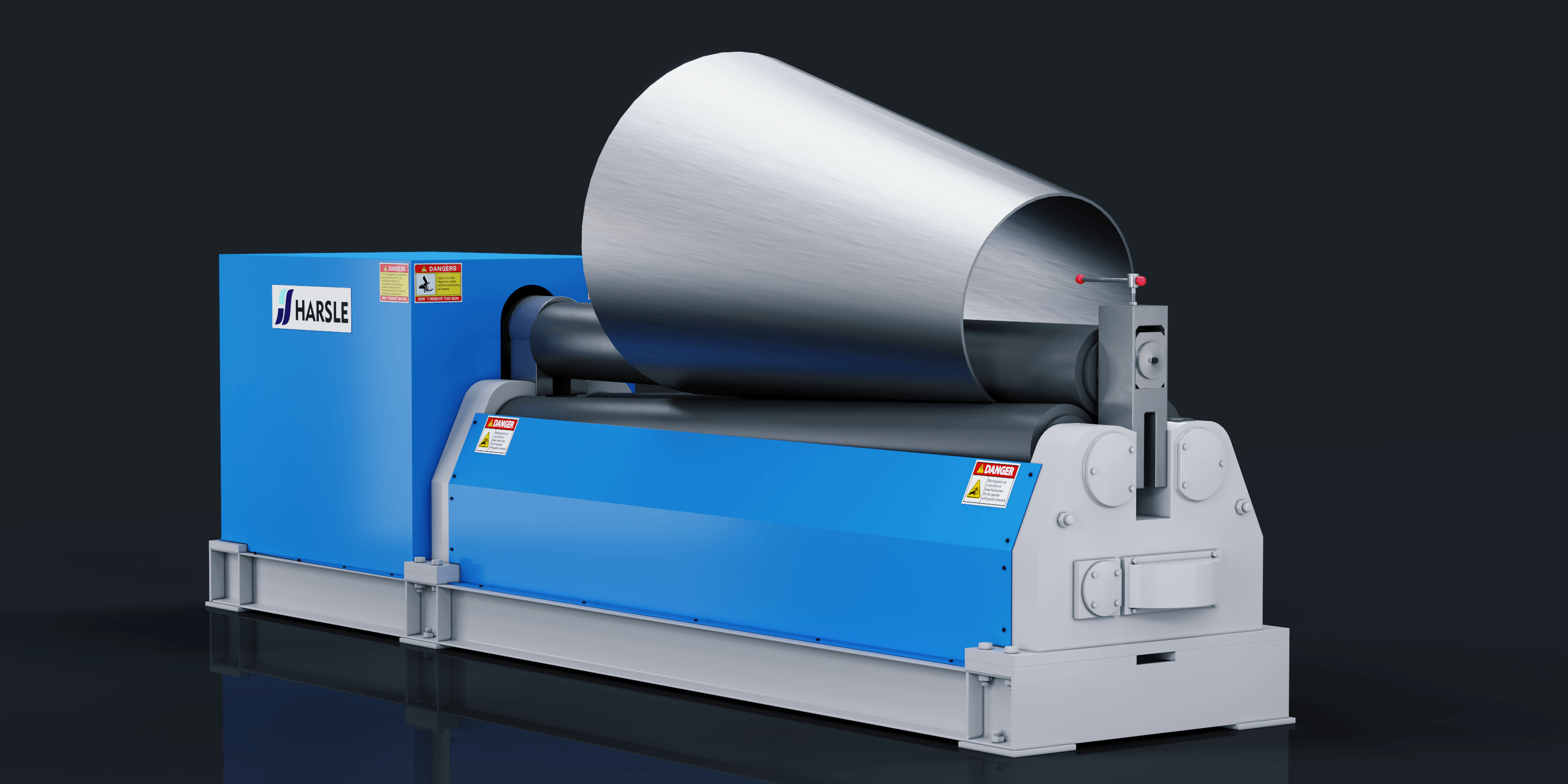

Flexible Forming
Cone Rolling
The cone rolling function supports efficient processing of conical workpieces.
Handles conical forming for wider application flexibility
Ensures smooth cone curvature with stable rolling accuracy
Forming Core
Stable Rolling
The upper and lower rolls work together to deliver balanced force and stable motion, ensuring smooth rolling and consistent forming accuracy.

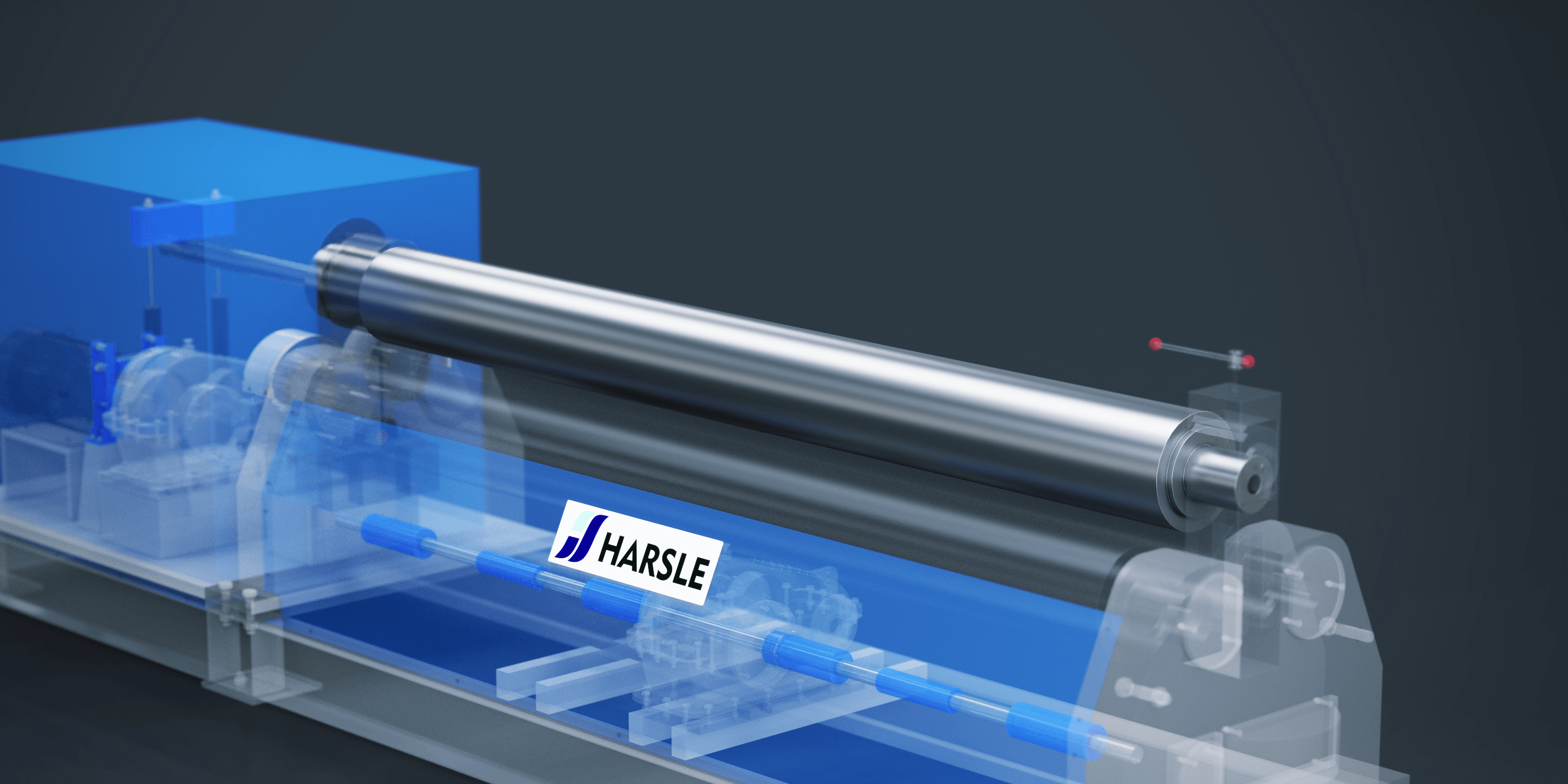

Primary Drive
Up Roll
The upper roll applies main pressure and drives the rolling process, playing a key role in forming accuracy and overall stability.

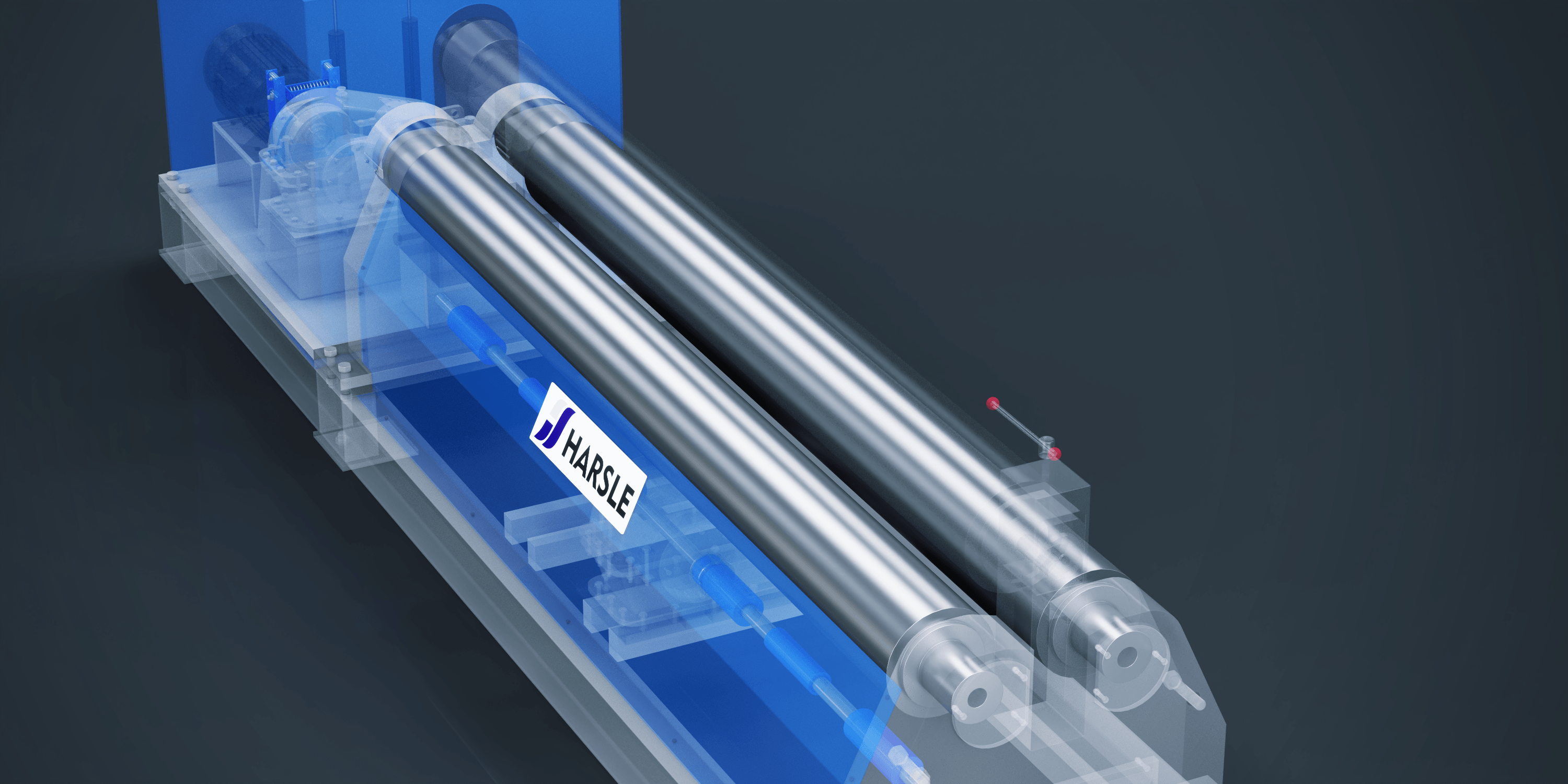

Support Base
Lower Roll
The lower rolls support and position the plate, enabling stable feeding and precise control of rolling radius.
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
TriRoll
0420
0420
TriRoll
1020
1020
TriRoll
3020
3020
TriRoll
4020
4020
4 mm
Rolling Thickness
10 mm
Rolling Thickness
30 mm
Rolling Thickness
40 mm
Rolling Thickness
2000 mm
Max Rolling Sheet Length
2000 mm
Max Rolling Sheet Length
2000 mm
Max Rolling Sheet Length
2000 mm
Max Rolling Sheet Length
150 mm
Top Roller Diameter
220 mm
Top Roller Diameter
370 mm
Top Roller Diameter
450 mm
Top Roller Diameter
120 mm
Lower Rollers Diameter
160 mm
Lower Rollers Diameter
270 mm
Lower Rollers Diameter
360 mm
Lower Rollers Diameter
200 mm
Central Distance Between Lower Rollers
260 mm
Central Distance Between Lower Rollers
480 mm
Central Distance Between Lower Rollers
600 mm
Central Distance Between Lower Rollers
200 mm
Min Rolling Diameter
360 mm
Min Rolling Diameter
700 mm
Min Rolling Diameter
850 mm
Min Rolling Diameter
4 m/min
Rolling Speed
4 m/min
Rolling Speed
4 m/min
Rolling Speed
4 m/min
Rolling Speed
2.2+1.1 KW
Motor Power
7.5+2.2 KW
Motor Power
22+7.5 KW
Motor Power
37+18.5 KW
Motor Power
3400*650*1000 mm
Dimension (L*W*H)
3800*850*1260 mm
Dimension (L*W*H)
4300*1550*1700 mm
Dimension (L*W*H)
4800*1900*2200 mm
Dimension (L*W*H)
