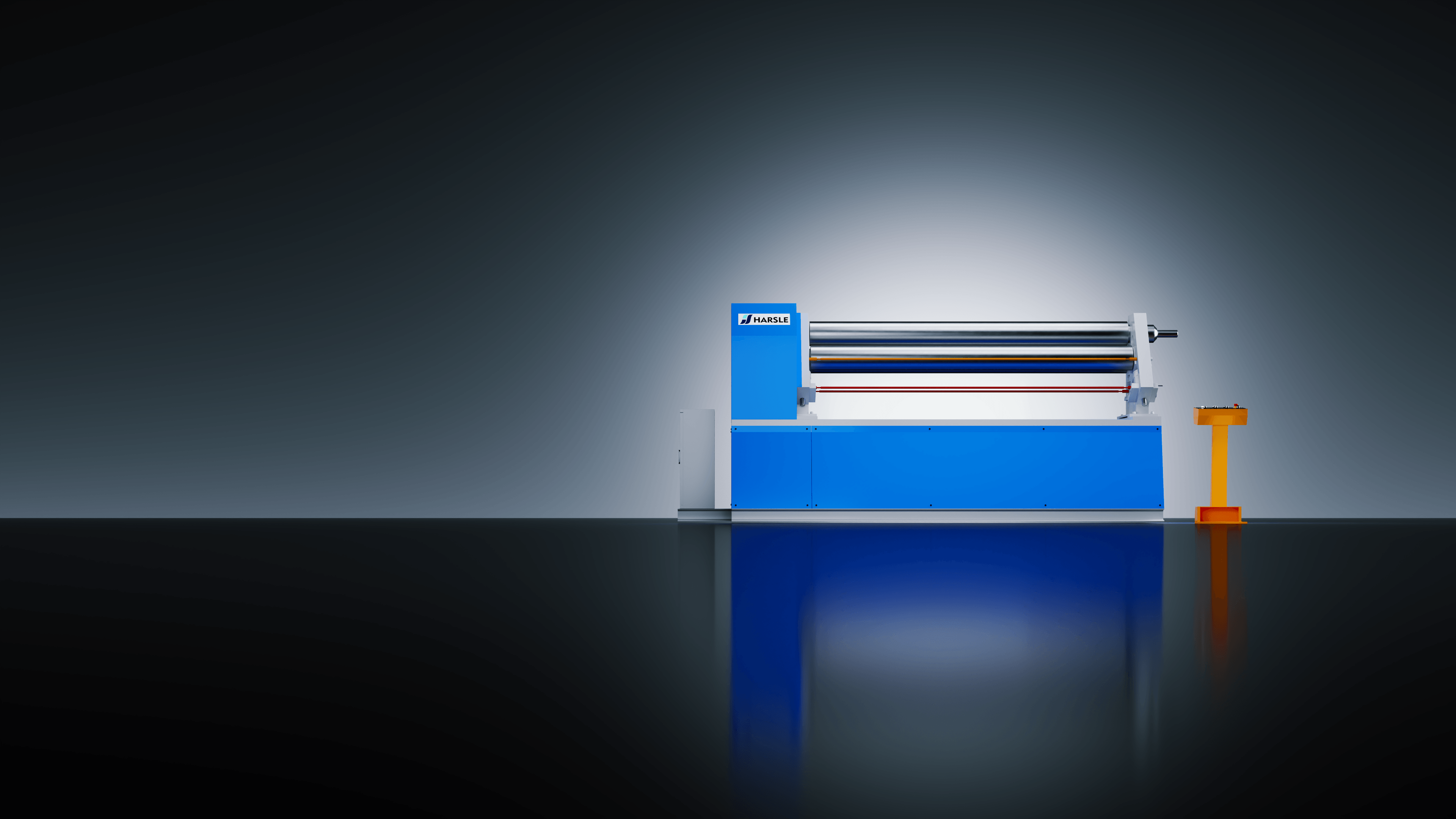

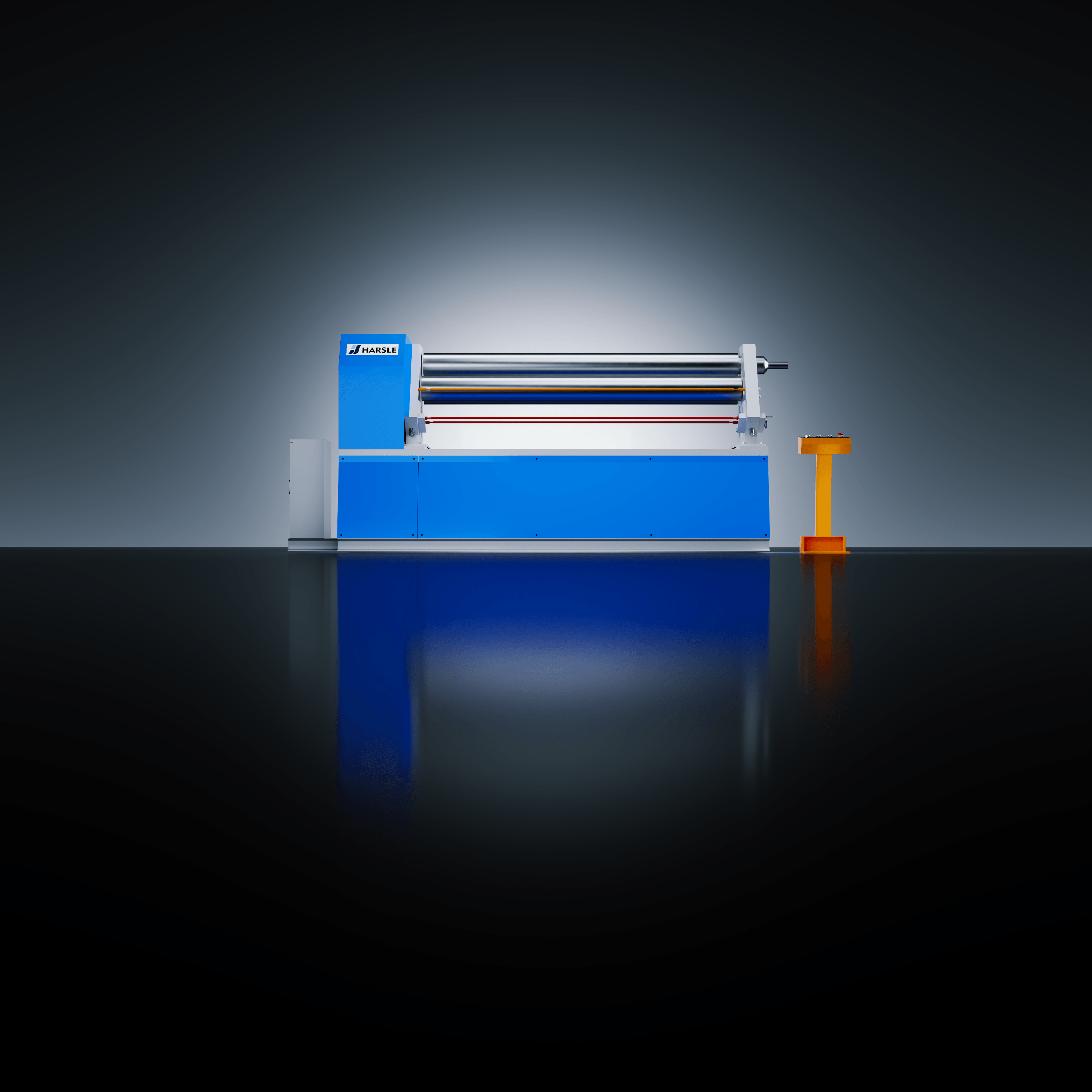

AsyRoll
Built for flexible, efficient plate rolling.
Offset Design
Asymmetric Rolling
The asymmetric three-roll design uses an offset lower roll to enable plate feeding and bending in a single setup, improving efficiency and simplifying operation.

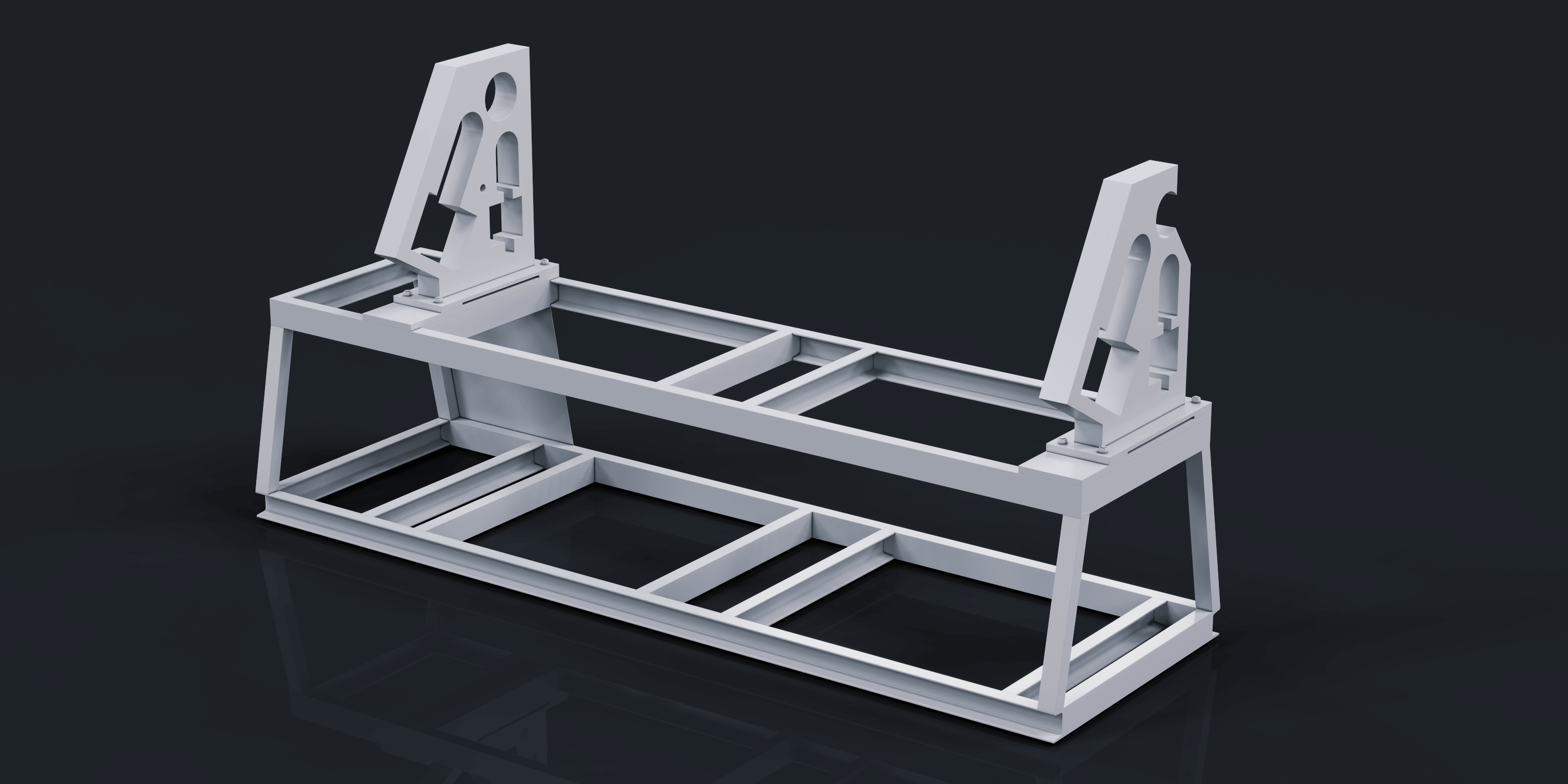

Rigid Structure
Stable Frame
The robust frame structure ensures high rigidity and stability, supporting accurate rolling performance under various working conditions.
High Rigidity
The reinforced frame design minimizes deformation, ensuring stable operation and consistent rolling accuracy.
Stable Operation
The solid structure reduces vibration during rolling, improving forming quality and machine reliability.
Core Parts
Stable Rolling
Key rolling components ensure smooth power transmission and precise control, supporting stable and efficient plate forming.

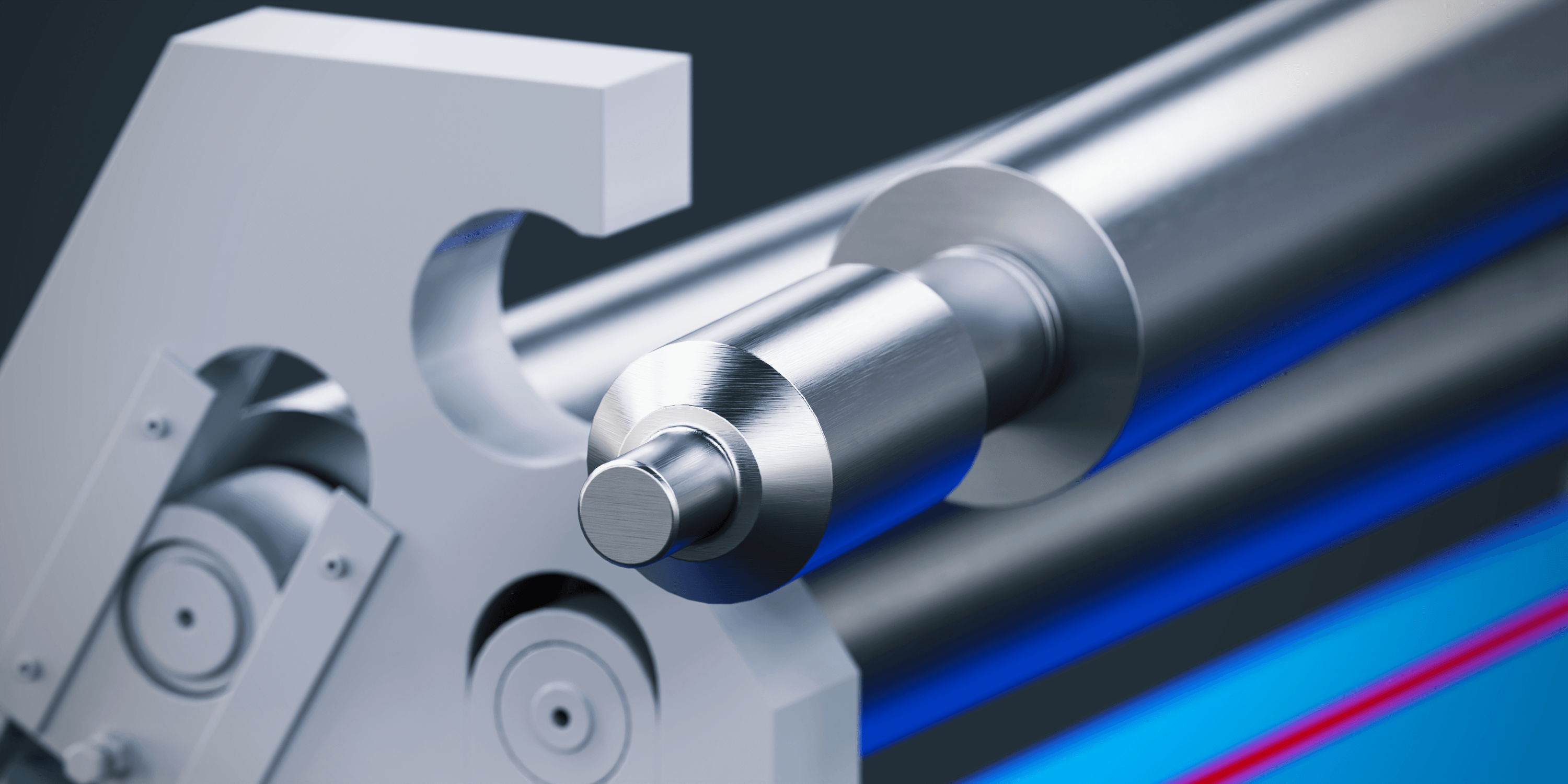

The unique design allows the upper roll to be easily removed, making material loading and unloading fast and convenient.
The hand crank device allows precise manual adjustment, providing flexible control during rolling operations.
Flexible Options
Custom Upgrades

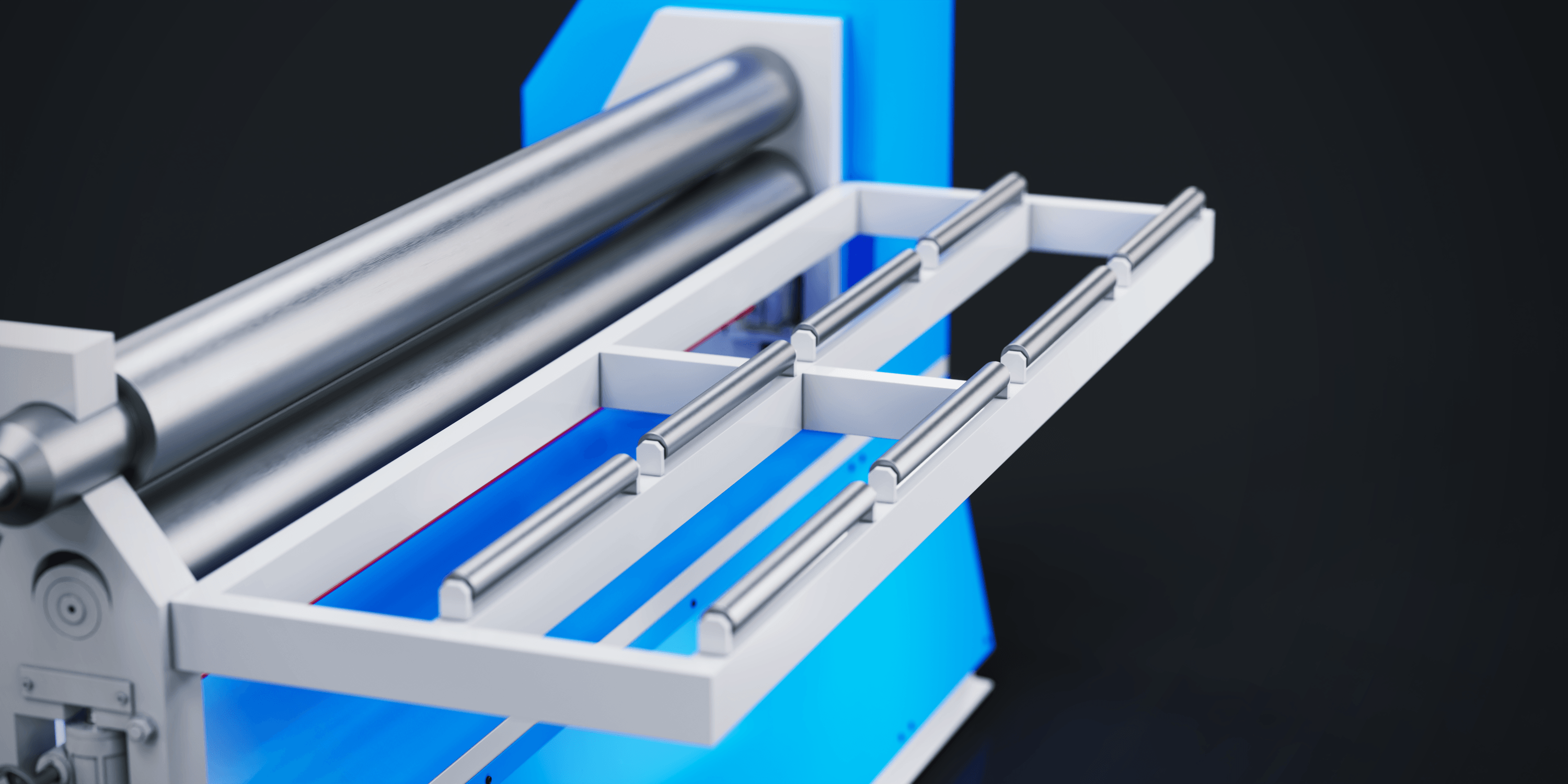

Stabilizes the plate during rolling, preventing lateral movement and improving forming accuracy.

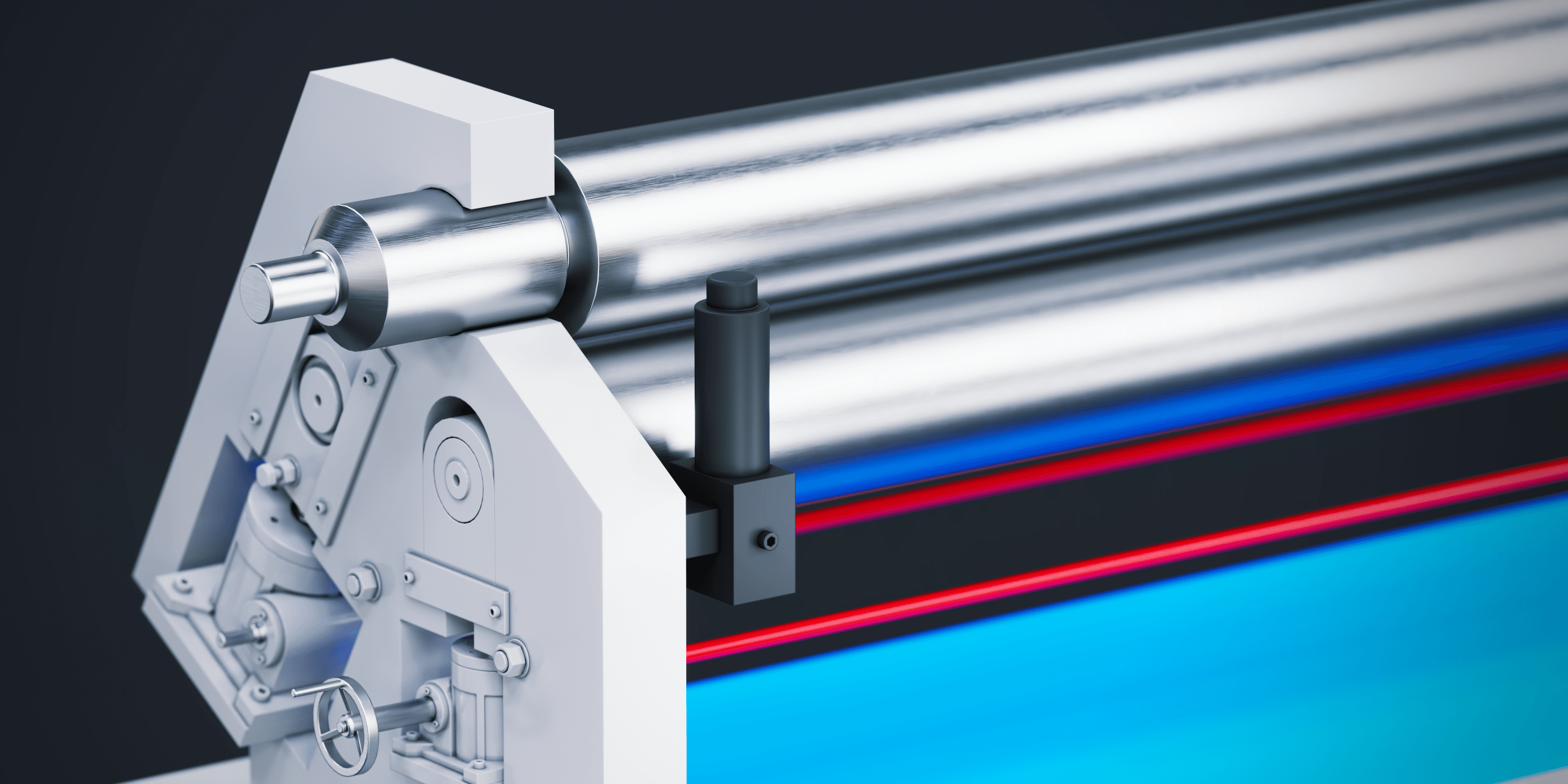

Enables efficient rolling of tapered workpieces, supporting flexible cone forming operations.

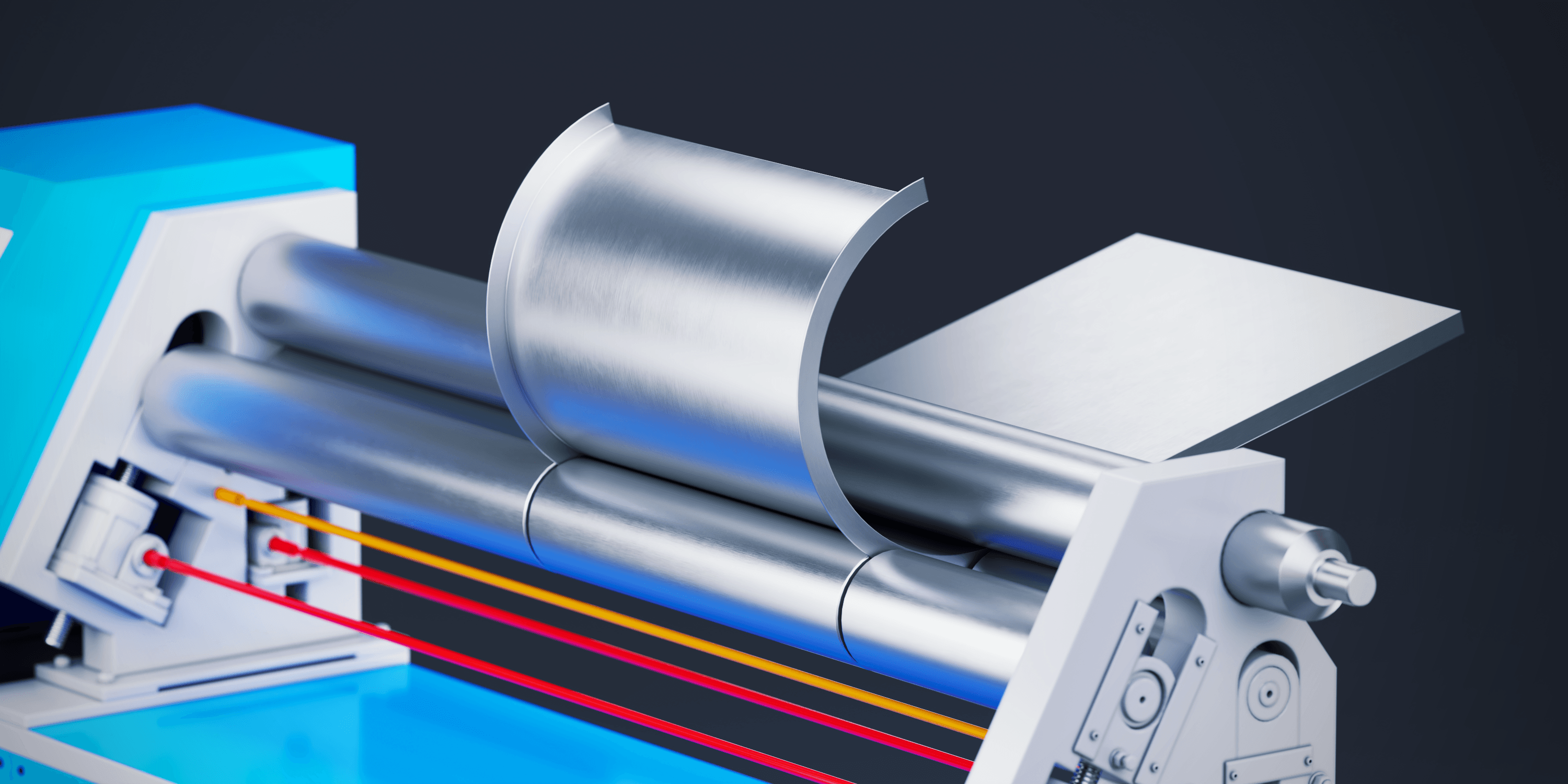

Designed for processing profiles and special shapes, ensuring stable rolling of complex sections.

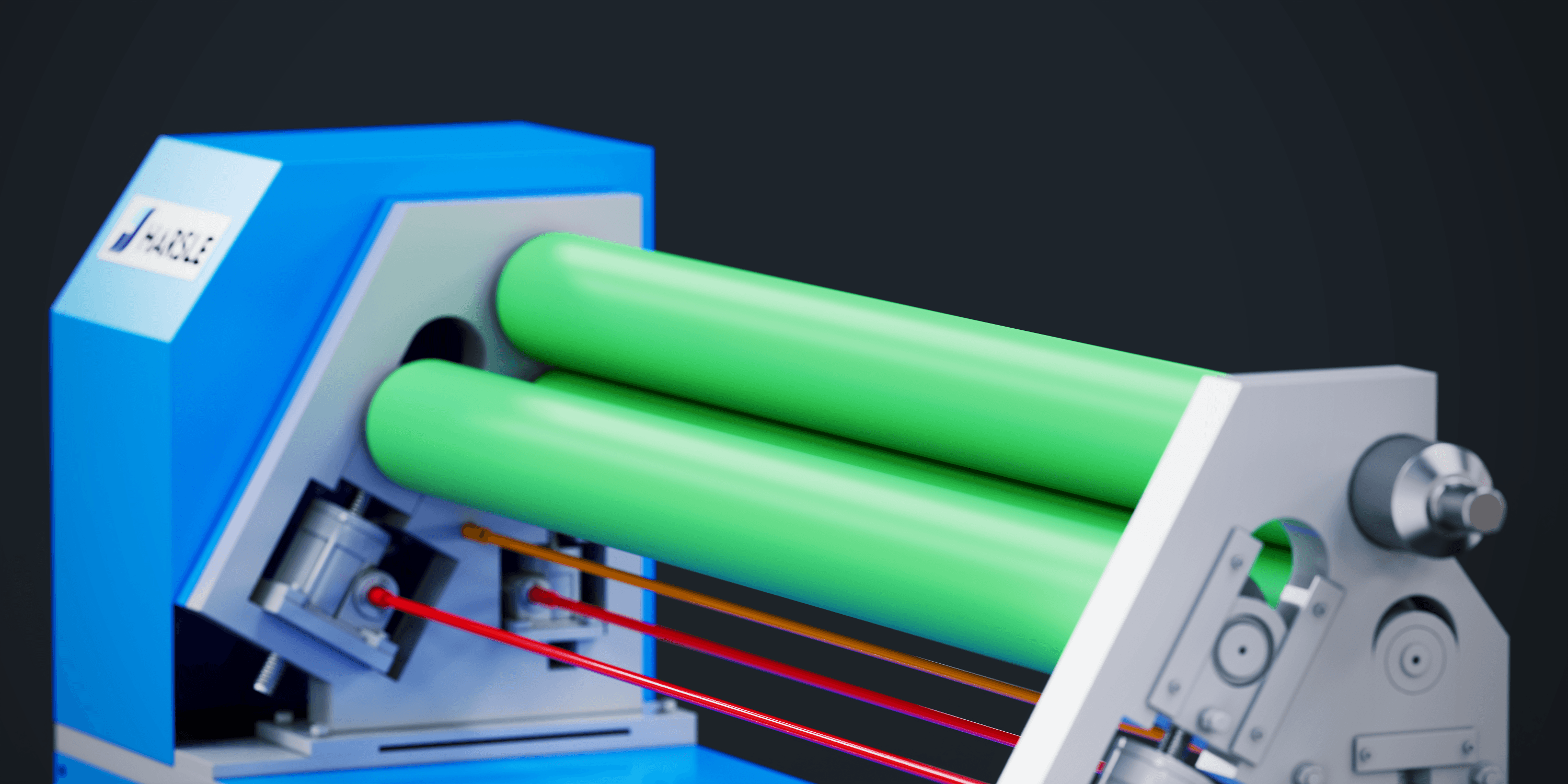

Protects the material surface, reducing scratches and ensuring high-quality finishing.
Easy Operation
Flexible Rolling for Everyday Jobs
Industries We Serve
Powering Metal Fabrication
Powering Metal Fabrication
Across Every Sector
HARSLE serve a wide range of industries, delivering the precision, efficiency, and reliability needed for diverse metalworking applications.
Automotive
Automotive
View Applications
Aerospace
Aerospace
View Applications
Construction & Electronics
Construction & Electronics
View Applications
Energy & Power
Energy & Power
View Applications
Wide Range Machinery
Wide Range Machinery
View Applications
HVAC & Ventilation
HVAC & Ventilation
View Applications
Technical Data
Specifications
All models at a glance — compare side by side
AsyRoll
0210
0210
AsyRoll
0410
0410
AsyRoll
0420
0420
AsyRoll
0620
0620
2 mm
Max Rolling Thickness
4 mm
Max Rolling Thickness
4 mm
Max Rolling Thickness
6 mm
Max Rolling Thickness
1000 mm
Max Rolling Sheet Width
1000 mm
Max Rolling Sheet Width
2000 mm
Max Rolling Sheet Width
2000 mm
Max Rolling Sheet Width
95 mm
Top Roller Diameter
120 mm
Top Roller Diameter
140 mm
Top Roller Diameter
160 mm
Top Roller Diameter
95 mm
Lower Roller Diameter
120 mm
Lower Roller Diameter
140 mm
Lower Roller Diameter
160 mm
Lower Roller Diameter
95 mm
Side Rollers Diameter
120 mm
Side Rollers Diameter
140 mm
Side Rollers Diameter
160 mm
Side Rollers Diameter
130 mm
Min Rolling Diameter
180 mm
Min Rolling Diameter
200 mm
Min Rolling Diameter
300 mm
Min Rolling Diameter
4 m/min
Rolling Speed
4 m/min
Rolling Speed
4 m/min
Rolling Speed
4 m/min
Rolling Speed
1.5 KW
Motor Power
3 KW
Motor Power
4 KW
Motor Power
5.5 KW
Motor Power
1900*850*1100 mm
Dimension (L*W*H)
1950*950*1100 mm
Dimension (L*W*H)
2900*1100*1400 mm
Dimension (L*W*H)
3300*1200*1600 mm
Dimension (L*W*H)
