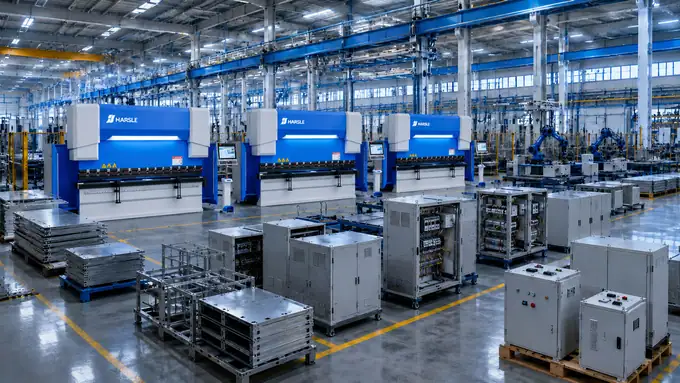

Complete Electrical Enclosure Manufacturing Line
Turnkey Sheet Metal Line for Control Panels, MCC Cabinets, Distribution Boxes & Switchgear Enclosures
- 1.0–2.5mmTypical Sheet Thickness
- 4-SideAuto Panel Bender
- IP54–65Protection Class Ready
- TurnkeyLine Engineering
Market Trend
Why Electrical Enclosure Manufacturing Is Growing
Global demand for LV switchgear, motor control centers, and custom panel enclosures is reshaping sheet metal factories. These drivers define today’s electrical enclosure production lines.
Electrical enclosure factories must deliver consistent door gaps, gasket-ready flanges, and repeatable box geometry across every batch. HARSLE designs complete manufacturing lines for panel builders and switchgear OEMs — from sheet shearing and laser blanking through automatic panel bending, bracket forming, surface treatment, and final assembly — scaled to your enclosure sizes and daily capacity.

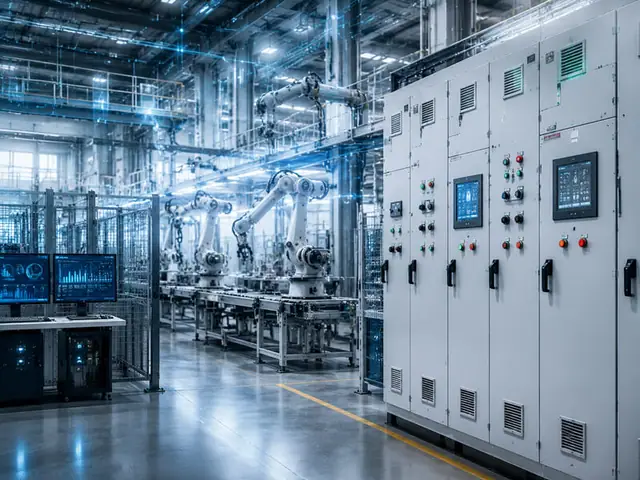

Industrial Automation & MCC Growth
PLC panels, motor control centers, and machine-tool electrical cabinets require standardized sheet metal housings — pushing factories toward dedicated enclosure lines with stable daily output.

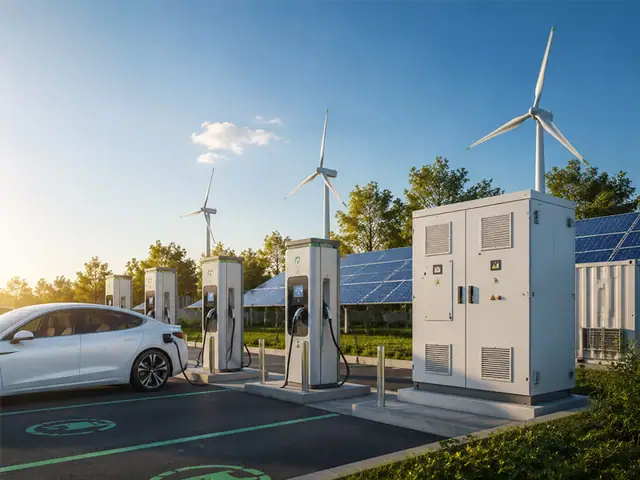

EV Charging & Renewable Distribution
Charging stations, solar combiner boxes, and battery PCS cabinets need outdoor-rated distribution enclosures — manufactured on the same laser, bending, and coating line as indoor control panels.

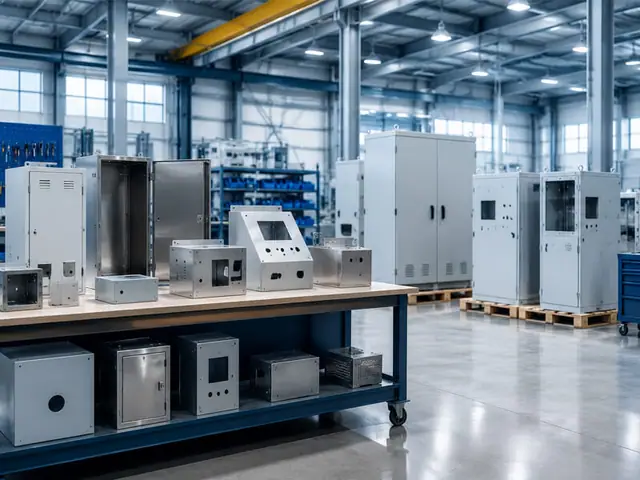

Custom Enclosure & Small-Batch Demand
Panel builders increasingly need multiple enclosure sizes, door layouts, cable entries, and mounting plate options — driving demand for flexible lines that can switch models quickly without long setup times.

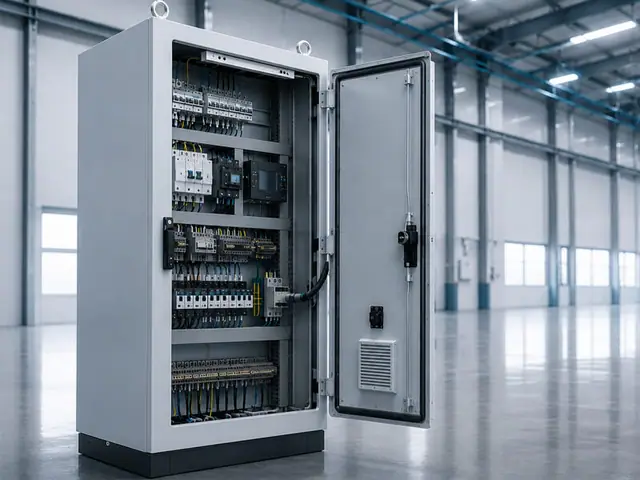

IP / NEMA & IEC 61439 Compliance
Projects demand IP54, IP65, and NEMA-type enclosures with controlled door gaps and gasket grooves. Integrated deburring, coating, and QC stations support panel-builder certification requirements.
Manufacturing Flow
Electrical Enclosure Manufacturing Process
From galvanized sheet to a finished, gasket-ready electrical enclosure — the standard HARSLE sheet metal line flow for control cabinet and distribution box factories. Select a step to see what happens at each station.
Step 01 / 09Electrical Enclosure
Sheet Preparation
Electrical enclosure production starts with cold-rolled galvanized steel, stainless steel, or aluminum sheet. Material is sheared to line-ready blanks and inspected for flatness before cutting and forming.
- Cold-rolled galvanized steel most common for LV cabinets
- Typical thickness: 1.0mm – 2.5mm for enclosure bodies
- Degreasing and surface inspection before cutting
Step 02 / 09Electrical Enclosure
Fiber Laser Cutting
Fiber laser cutting produces enclosure body blanks, hinged doors, mounting plates, and cable gland cutouts with ±0.1mm accuracy — the base process for control panels and distribution boxes.
- Door, side panel, and back plate blanking
- Cable entry, window, and hinge cutouts
- Galvanized, stainless steel and mild steel
Step 03 / 09Electrical Enclosure
CNC Turret Punching
Optional but high-efficiency for batch door production — the turret punch forms repeated mounting holes, ventilation louvers, and knockout patterns on identical enclosure panels.
- Door vent grids and component mounting holes
- Knockout tabs for cable glands and breakers
- Best for high-volume distribution box batches
Step 04 / 09Electrical Enclosure
Panel Bending & Forming
The core step in electrical enclosure lines: automatic panel benders form four-side box bodies, doors, and covers in one pass; press brakes handle DIN rail channels, brackets, and stiffeners.
- Panel bender: one-pass U-box and cabinet body forming
- Press brake: mounting channels, flanges, and brackets
- ±0.1° angle control for gasket-ready door flanges
Step 05 / 09Electrical Enclosure
Welding & Frame Joining
Spot, MIG, TIG, or laser welding joins frame corners, stiffeners, and plinths where bolted construction is not used — ensuring rigidity for floor-standing switchgear and MCC cabinets.
- Frame corner and stiffener welding
- Low-distortion laser weld for visible seams
- Weld points ground flush before coating
Step 06 / 09Electrical Enclosure
Grinding & Deburring
All laser-cut edges and weld seams are deburred and ground smooth — critical for gasket sealing, safe wiring access, and uniform powder coating on electrical enclosures.
- Burr-free edges on door and body panels
- Flush weld grinding to prevent dust traps
- Surface prep before phosphating or coating
Step 07 / 09Electrical Enclosure

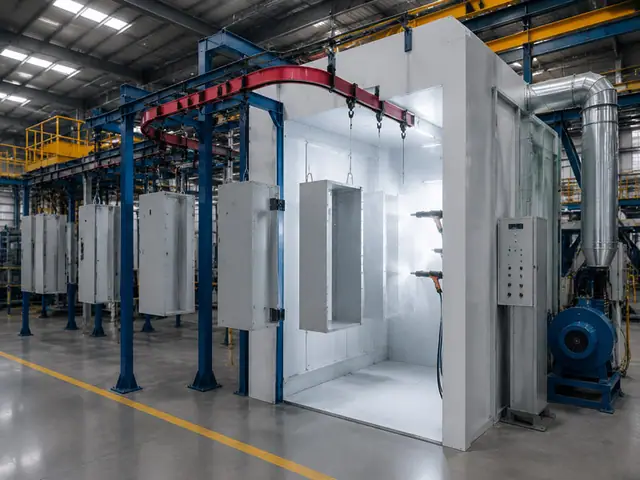

Powder Coating
Electrostatic powder coating with curing oven delivers corrosion protection for indoor panels (RAL7035) and outdoor switchgear enclosures — typically 60μm+ film with salt-spray tested finishes.
- RAL7035 / RAL7032 standard electrical cabinet colors
- Pre-treatment: degreasing and phosphating
- 500+ hour salt spray corrosion resistance
Step 08 / 09Electrical Enclosure

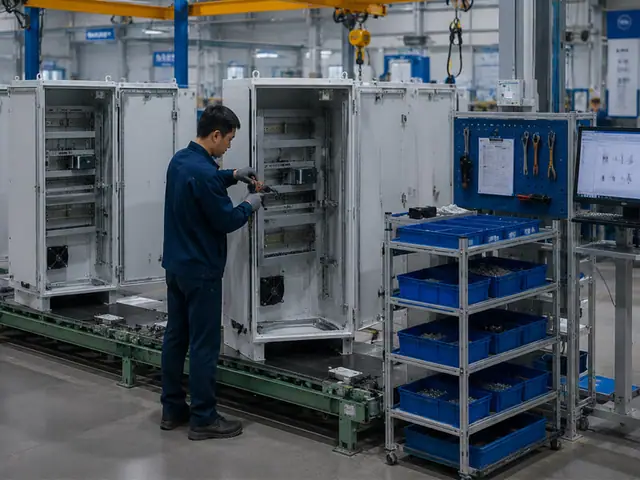

Hardware Assembly
Doors receive hinges, locks, and gaskets; bodies receive DIN rails, mounting plates, and earthing studs. Door-to-body gap (typically 2–3mm) is checked before wiring integration.
- Hinges, locks, gaskets, and door stays fitted
- DIN rail 35mm and internal mounting plate installed
- Door gap, lock function, and earth continuity checked
Step 09 / 09Electrical Enclosure

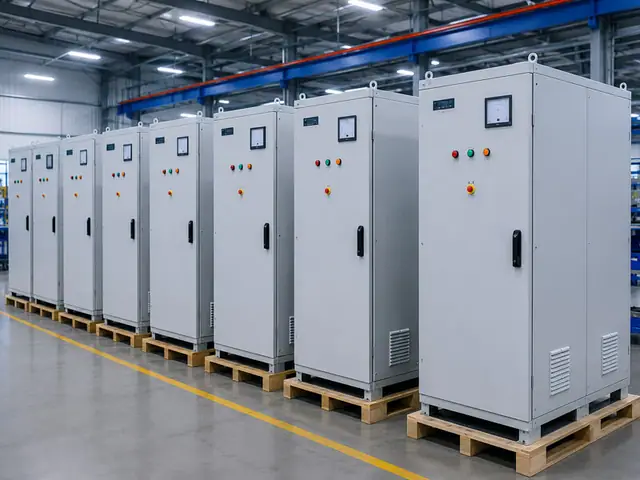

Finished Electrical Enclosure
Completed control cabinets, distribution boxes, and switchgear housings pass dimensional QC and are packed for panel builders, switchgear OEMs, and electrical contractors worldwide.
- Dimensional check against customer drawings
- IP / NEMA gasket and seal fit verification
- Export crate packing with serial number traceability
Equipment Solutions
Machines for Electrical Enclosure Lines
Six machines arranged for electrical enclosure lines — shearing and laser blanking first, panel bender as the core forming station, then brake, punch, and weld support.
Shearing
Guillotine Shearing Machine
HARSLE QC11Y / QC12Y Series
Front-end of the enclosure line — shears galvanized and stainless coils into flat blanks sized for laser cutting and panel bending stations downstream.
- Galvanized Sheet to Line-Ready Blanks
- Clean Edge · Minimal Sheet Distortion
- Steady Feed for 1.0–2.5mm Enclosure Sheet
Laser Cutting
Fiber Laser Cutting Machine
HARSLE EcoCut / ProCut Series
Blanks enclosure bodies, hinged doors, mounting plates, and gland cutouts before forming — standard first processing step after shearing on every electrical cabinet line.
- Control Panel Body & Door Blanking
- Cable Gland & Hinge Cutouts
- ±0.1mm Accuracy · Low Material Waste
Core Equipment
Panel Bender for Electrical Enclosures
HARSLE AutoBend Series
The defining machine of an electrical enclosure line — automatically forms four-side box bodies, switch cabinet shells, and distribution box covers in one pass with minimal labor.
- Control Box & Distribution Cabinet Forming
- Four-Side Bend · Consistent Flange Width
- 3–5× Faster Than Multi-Step Press Brake
Press Brake
CNC Press Brake
MasterBend Series — DA69T / DA66T
Complements the panel bender — forms DIN rail mounting channels, internal brackets, plinths, and long stiffeners that panel benders do not handle in one cycle.
- DIN Rail Channel & Mounting Bracket Bending
- Plinth & Stiffener Forming
- Automatic Crowning for Long Panels
CNC Punching
CNC Turret Punch Press
HARSLE D-ES300 Servo Turret Series
Optional high-output station for batch door and side panel punching — vent louvers, component mounting holes, and knockout patterns on identical MCC and distribution box panels.
- Door Vent & Mounting Hole Patterns
- Breaker Knockout & Louver Forms
- Auto-Index Turret · ±0.05mm Accuracy
Laser Welding
Laser Welding Machine
HARSLE SmartWeld Series
Joins welded-frame enclosures, stiffeners, and plinth assemblies with clean, low-distortion seams — reducing grinding time before powder coating on switchgear housings.
- Frame Corner & Stiffener Welding
- Flush Seams · Less Post-Grind Work
- Galvanized & Stainless Enclosure Steel
Product Range
Products We Help Manufacture
From compact junction boxes to floor-standing switchgear — one HARSLE line covers the full electrical enclosure product range for panel builders and OEMs.
- 01

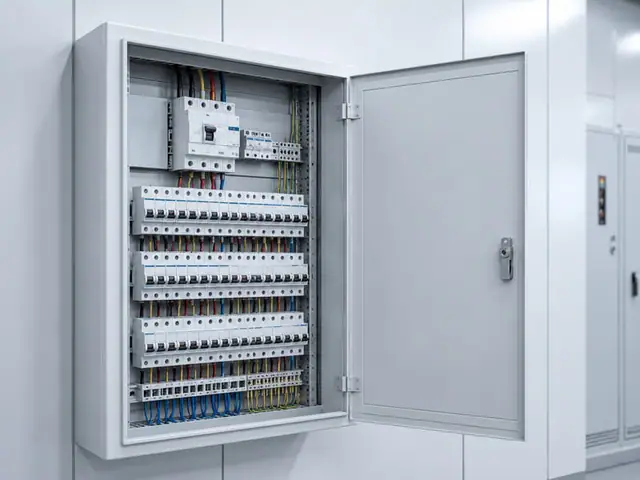

LV Distribution Board
- 02

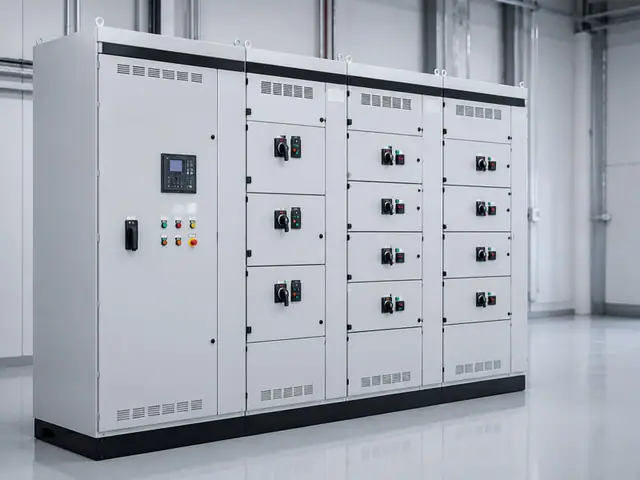

MCC Panel Enclosure
- 03

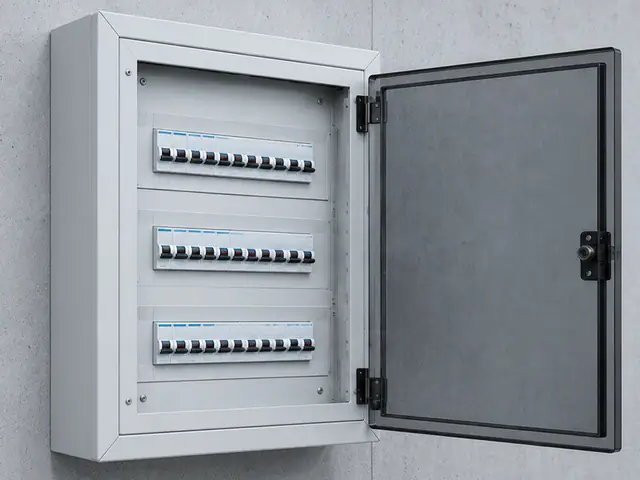

Wall-Mount Distribution Box
- 04

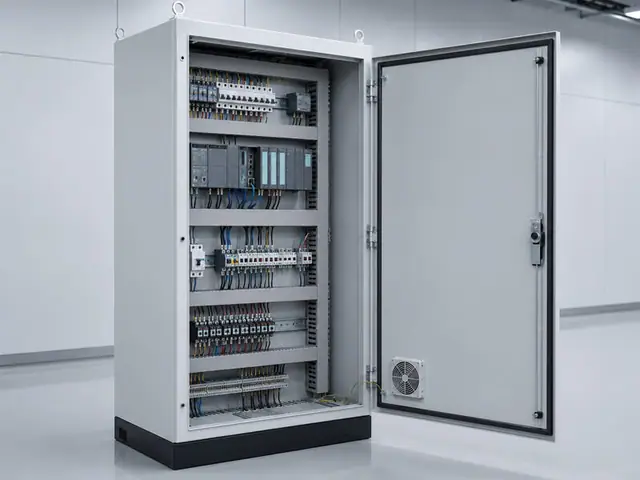

PLC Control Panel Cabinet
- 05

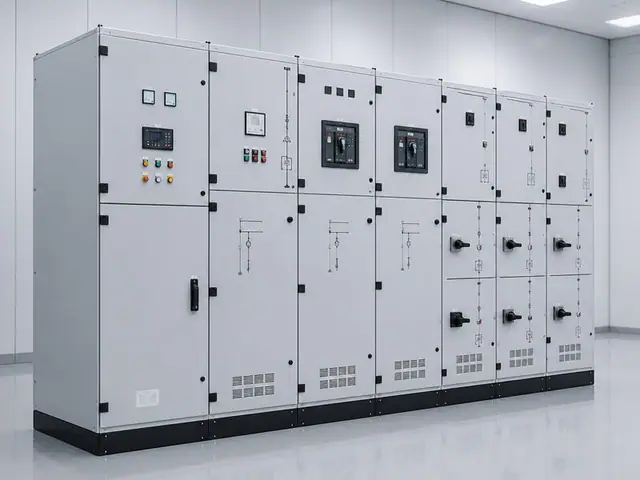

Switchgear Cubicle
- 06
Outdoor Weatherproof Cabinet
- 07

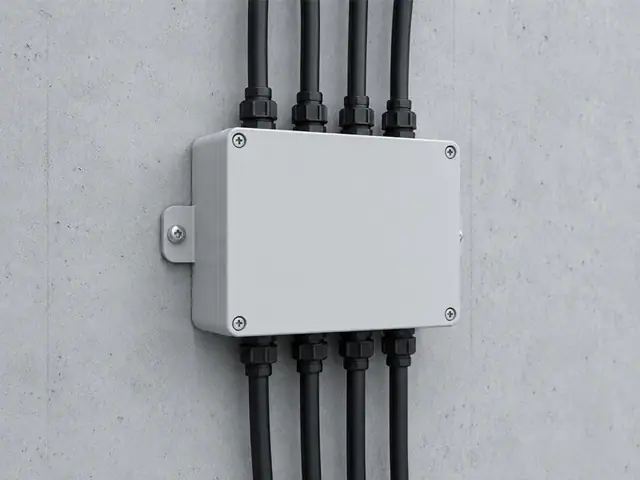

Cable Junction Box
- 08

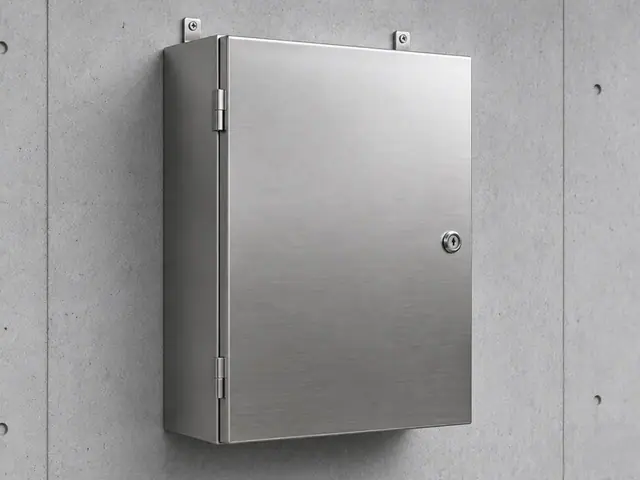

Stainless Steel Enclosure
Our Advantages
Why Choose HARSLE
Purpose-built for electrical enclosure factories — panel bender-centric forming, gasket-ready flanges, and IEC / NEMA project support.
Enclosure Batch Production
Panel Builder Scale
Lines tuned for repetitive distribution box and MCC models — stable takt time from shearing through packing for OEM and contract panel builders.
Electrical Panel Bender Line
Core Forming Station
HARSLE panel benders are engineered for control boxes and switch cabinets — four-side forming with consistent flange width for gasket and door alignment.
Turnkey Enclosure Factory
Layout · Equipment · Install
One partner delivers shearing, laser, panel bender, press brake, coating line layout, and commissioning — matched to your enclosure sizes and daily output target.
IP / NEMA Project Support
Gasket-Ready Finishing
Deburring, coating, and assembly stations configured to support IP54, IP65, and NEMA-type enclosures with controlled door gaps and seal groove quality.
Multi-Model Flexibility
H × W × D · Door Type
Same line handles wall-mount boxes, floor-standing cabinets, and custom depths — quick program change on panel bender and laser for mixed batch runs.
Galvanized & Stainless Ready
CR Steel · SS304 · Aluminum
Process the three standard electrical enclosure materials on one integrated line — from 1.0mm galvanized distribution boxes to 2.5mm stainless outdoor cabinets.
Factory Planning
Electrical Enclosure Production Line Layout
Standard HARSLE electrical enclosure line layout — shearing, laser blanking, panel bending (core), press brake, optional punching, welding, coating, assembly, and export packing.
Electrical Enclosure Production Flow
- 01Sheet Storage & ShearingLine-ready enclosure blanks
- 02Fiber Laser CuttingBodies, doors, mounting plates
- 03Panel BendingBox bodies, doors, covers
- 04Press Brake FormingDIN channels and brackets
- 05CNC Turret PunchingDoor vents and knockouts
- 06Laser Welding AreaFrame and stiffener joining
- 07Grinding & CoatingDeburring and powder finish
- 08Enclosure Assembly & QCHinges, locks, DIN rails
- 09Finished Enclosure PackingExport-ready electrical cabinets
See It In Action
Video Center
Watch HARSLE panel benders, press brakes, and laser cutters processing electrical enclosure panels in real production environments.
-
HARSLE Genius Press Brake
MasterBend press brake forming DIN rail channels, mounting brackets, and stiffeners for MCC and distribution board enclosures.
-
Panel Bender — Electrical Enclosures
HARSLE panel bender forming four-side distribution box bodies and switch cabinet shells — core equipment on electrical enclosure lines.
-
Laser Cutting — Enclosure Panels
Fiber laser blanking control panel doors, gland cutouts, and enclosure side panels before panel bending on the line.
Global Footprint
Shipments & Customer Stories
Every shipment and customer story HARSLE publishes appears here automatically. Filter by machine or country.
- 1,209Shipments published
- 118Destination countries
- 118Customer stories
- LiveUpdated as we ship
![UAE-Flexbend 25050 Press Brake]()
ShippedUAE-Flexbend 25050 Press Brake![Iran-Flexbend8032 Press Brake]()
ShippedIran-Flexbend8032 Press Brake![Mexico-MasterBend 20040 Press Brake]()
ShippedMexico-MasterBend 20040 Press Brake![Australia-PrimeShear 0632 Guillotine Shear With feeding table]()
ShippedAustralia-PrimeShear 0632 Guillotine Shear With feeding table![USA-Masterbend 30050 Press Brake]()
ShippedUSA-Masterbend 30050 Press Brake![USA-MasterBend 20032 Press Brake]()
ShippedUSA-MasterBend 20032 Press Brake![Brazil-Masterbend 17032 CNC Press Brake]()
ShippedBrazil-Masterbend 17032 CNC Press Brake![Russia-TiltPunchJ21-200T Punching Machine]()
ShippedRussia-TiltPunchJ21-200T Punching Machine![Ireland-QuadRoll 2516 Rolling Machine]()
ShippedIreland-QuadRoll 2516 Rolling Machine![USA-DualPolish DMV1000 Deburring Machine]()
ShippedUSA-DualPolish DMV1000 Deburring Machine![Guatemala-QuadRoll 1630 Rolling Machine]()
ShippedGuatemala-QuadRoll 1630 Rolling Machine![Serbia-MasterBend 6332 CNC Press Brake]()
ShippedSerbia-MasterBend 6332 CNC Press Brake![USA-E-Bend Pro 7025 Electric Press Brake]()
ShippedUSA-E-Bend Pro 7025 Electric Press Brake![Brazil-Flexbend 17032 Press Brake]()
ShippedBrazil-Flexbend 17032 Press Brake![Zimbabwe-FlexBend 300T4000 CNC Press Brake]()
ShippedZimbabwe-FlexBend 300T4000 CNC Press Brake![Brazil-PrimeShear 0860 Guillotine Shear]()
ShippedBrazil-PrimeShear 0860 Guillotine Shear![Argentina-EasyBend 8032 Hydraulic Press Brake]()
ShippedArgentina-EasyBend 8032 Hydraulic Press Brake![USA-MasterBend 17040 CNC Press Brake]()
ShippedUSA-MasterBend 17040 CNC Press Brake![Switzerland-PrimeShear 1232 Guillotine Shear]()
ShippedSwitzerland-PrimeShear 1232 Guillotine Shear![Venezuela-Ecobend 17025 CNC Press Brake]()
ShippedVenezuela-Ecobend 17025 CNC Press Brake![Indonesia-Q11D-13X2500 Mechanical Guillotine Shearing Machine]()
ShippedIndonesia-Q11D-13X2500 Mechanical Guillotine Shearing Machine![Algeria-Ecobend 6325 CNC Press Brake]()
ShippedAlgeria-Ecobend 6325 CNC Press Brake![Finland-Flexbend 80T2000 CNC Press Brake]()
ShippedFinland-Flexbend 80T2000 CNC Press Brake![Brazil-Autobend 2000 Panel Bender]()
ShippedBrazil-Autobend 2000 Panel Bender
No shipments match this filter yet.
![HARSLE Press Brake Software Upgrade Unlocks US Client Potential]()
StoryHARSLE Press Brake Software Upgrade Unlocks US Client Potential![HARSLE Panel Bender Fast Setup Wins United States Praise]()
StoryHARSLE Panel Bender Fast Setup Wins United States Praise![HARSLE Tube Bending Machine Training Boosts Thailand Output]()
StoryHARSLE Tube Bending Machine Training Boosts Thailand Output![HARSLE Engineer Support Wins United States Client Praise]()
StoryHARSLE Engineer Support Wins United States Client Praise![On-Site Engineer Support Secures Lebanese Long-Term Deal]()
StoryOn-Site Engineer Support Secures Lebanese Long-Term Deal![Lebanese Client Applauds HARSLE Press Brake Quality]()
StoryLebanese Client Applauds HARSLE Press Brake Quality![CSA-Compliant Shearing Machine Delights Canadian Client]()
StoryCSA-Compliant Shearing Machine Delights Canadian Client![Successful Factory Acceptance Test for Chile Client]()
StorySuccessful Factory Acceptance Test for Chile Client![High Efficiency Bending Solution Improves Greece Output]()
StoryHigh Efficiency Bending Solution Improves Greece Output![Smooth Tube Bender Delivery Experience for Seville Customer]()
StorySmooth Tube Bender Delivery Experience for Seville Customer![Seville Client Applauds Press Brake Technical Support]()
StorySeville Client Applauds Press Brake Technical Support![USA Customer Applauds HARSLE Professional Installation Service]()
StoryUSA Customer Applauds HARSLE Professional Installation Service![Arizona Endorses HARSLE’s Superior Machine Performance]()
StoryArizona Endorses HARSLE’s Superior Machine Performance![HARSLE Machines Delight Lebanon with High Performance]()
StoryHARSLE Machines Delight Lebanon with High Performance![Sioux Falls Success: Enhanced Production with HARSLE]()
StorySioux Falls Success: Enhanced Production with HARSLE![HARSLE Machine Success with United States Loyal Customer]()
StoryHARSLE Machine Success with United States Loyal Customer
No stories match this filter yet.
FAQ
Frequently Asked Questions
Common questions about building a electrical enclosure manufacturing line.
What materials can be processed?
HARSLE lines process cold-rolled galvanized steel (most common for LV cabinets), 304/316 stainless steel (corrosive environments), and aluminum (lightweight outdoor boxes). Thickness typically ranges from 1.0mm to 2.5mm for enclosure bodies.
What enclosure sizes and depths are supported?
Lines support compact junction boxes (200×300mm) through floor-standing switchgear cabinets (2000mm+ height). Width, depth, door type (single/double), and plinth height are configured to your CAD drawings and IEC 61439 project requirements.
Can ventilation and knockout panels be produced?
Yes. The CNC turret punch press produces vent grids, round hole patterns, and louver forms on doors and side panels. Fiber laser cutting handles cable entry cutouts, window openings, and complex outer contours in the same line.
Is a panel bender or turret punch required for enclosure production?
A panel bender is essential for electrical enclosure lines producing control boxes and distribution cabinets — it forms four-side bodies in one cycle. Add a turret punch when batch door production requires high-speed vent, mounting hole, and breaker knockout patterns. Small factories may use laser-only plus panel bender without a punch press.
Can IP54 / IP65 rated enclosures be produced on this line?
Yes. With controlled bend accuracy, deburred edges, quality powder coating, and correct gasket/hinge assembly, the line supports IP54 indoor and IP65 outdoor enclosures. Final IP testing is performed per project specification after assembly.
Can the production line be customized?
Yes. Lines are customized by enclosure size range (junction box vs. floor-standing), material type, daily output, and whether you need a turret punch or robotic panel bender cell. HARSLE engineers adjust machine models and layout to your floor plan.
What equipment is required for electrical enclosure production?
Standard HARSLE electrical enclosure line: (1) guillotine shearing, (2) fiber laser cutting, (3) automatic panel bender, (4) CNC press brake, (5) CNC turret punch — optional, (6) welding, (7) deburring and powder coating, (8) hardware assembly and QC, (9) packing. Configuration varies by product mix and daily output.
Can HARSLE design an enclosure factory layout?
Yes. Our engineers provide layout drawings optimized for enclosure material flow — from shearing and laser cutting through bending, coating, and assembly — with capacity planning based on your target daily output.
Do you provide machine recommendations?
Yes. Our team recommends suitable machine models and specifications according to your material thickness, enclosure dimensions, target output, and automation requirements.
Do you provide installation and operator training?
Yes. HARSLE provides on-site installation, line commissioning, and hands-on training for panel bender, laser, and press brake operators. Global after-sales support covers spare parts and technical assistance in 100+ countries.
Get Started
Request a Quote
Start Your Electrical Enclosure Manufacturing Line Today — Tell us your enclosure sizes, material, and target daily output — HARSLE engineers will deliver a panel-bender-centered line layout and turnkey proposal.
- Machine SelectionModel, series and options matched to your parts
- Technical SupportBend feasibility checked on your drawings
- Detailed QuotationPrice, lead time, shipping and installation
- 24-Hour ResponseA real engineer replies within one business day
Tip: mention your material, thickness, largest part size and yearly volume for the most accurate quote.
