Laser auto focus problem is one of the most common issues that can affect القطع بالليزر quality, efficiency, and machine reliability. If your القطع بالليزر head fails to adjust focus automatically, you may notice incomplete cuts, excessive slag, rough edges, or inconsistent cutting performance. In this article, I’ll walk you through the most common causes of a laser auto focus problem and explain how to diagnose it step by step. By following these troubleshooting methods, you can quickly identify the source of the issue, minimize downtime, and restore optimal cutting performance.

Understanding How the Laser Auto Focus System Works

Before diagnosing a fault, I always make sure I understand how the auto focus system operates.

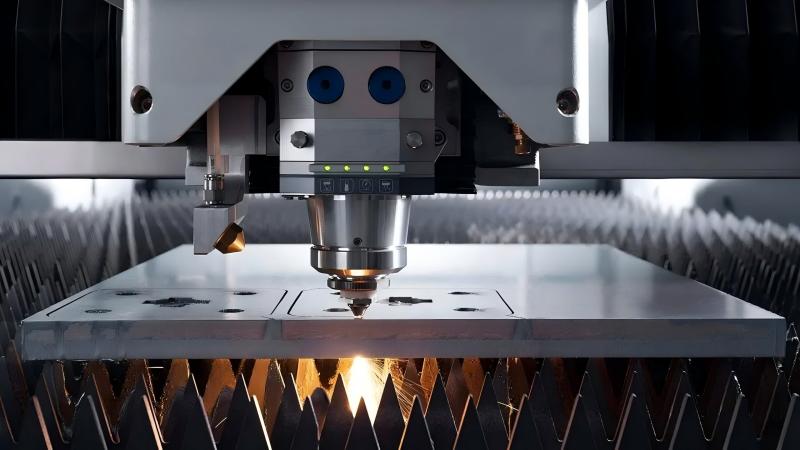

The laser cutting head automatically adjusts the focal position based on material thickness and cutting parameters. The system typically consists of:

• Auto focus motor
• Focus lens assembly
• محرك سيرفو
• Height control sensor
• Control software
• Signal cables and connectors

When any of these components fail, a laser auto focus problem may occur.

Common Causes of Laser Auto Focus Problem

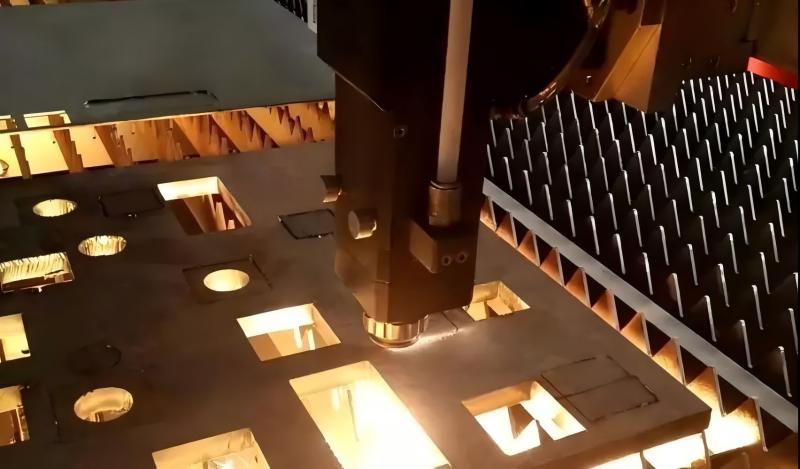

Auto Focus Motor Failure

The focus motor controls the vertical movement of the lens. If the motor becomes damaged or overloaded, the cutting head may fail to respond to focus commands.

تشمل الأعراض الشائعة ما يلي:

• No focus movement
• Unusual motor noise
• ارتفاع درجة حرارة المحرك
• Focus position alarm

Dirty or Damaged Focus Lens

Contaminated lenses can affect laser transmission and interfere with the auto focus system’s calibration.

Signs of lens contamination include:

• Reduced cutting quality
• Burn marks on the lens
• Increased spatter
• Inconsistent focal position

Sensor or Height Controller Malfunction

The capacitive height sensor continuously measures the distance between the nozzle and the workpiece.

If the sensor fails, the machine may experience:

• Unstable focus adjustments
• Frequent height alarms
• Nozzle collisions
• Irregular cutting performance

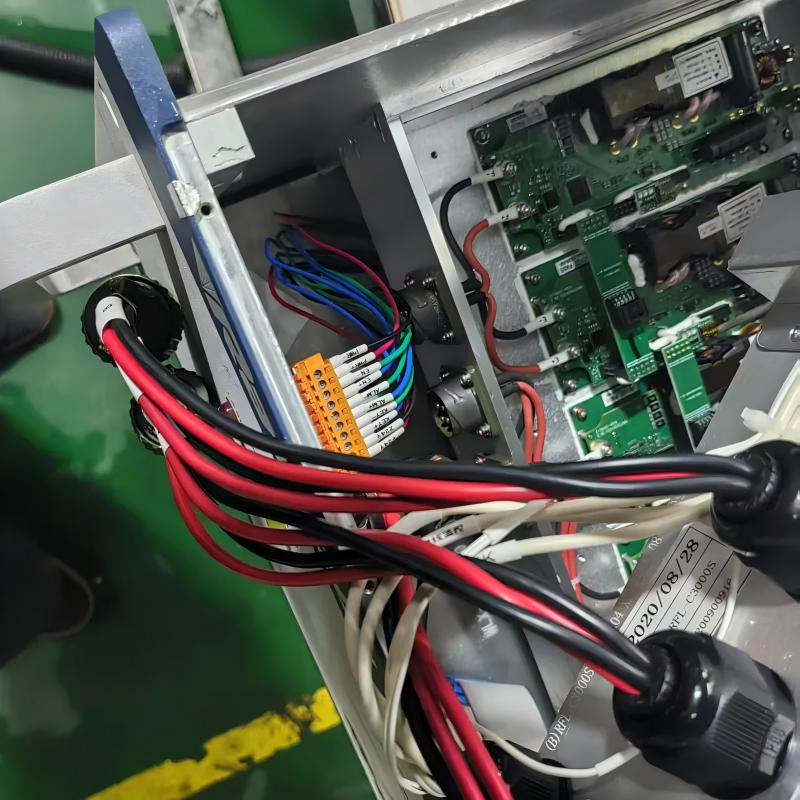

Loose Electrical Connections

Loose cables or damaged connectors can interrupt communication between the controller and the auto focus unit.

This often causes:

• Intermittent focus movement
• Communication alarms
• Unexpected stopping
• Positioning errors

Incorrect Software Parameters

Improper focus settings can create the appearance of a hardware failure even when all components are functioning normally.

Incorrect parameters may include:

• Focus offset values
• Material database settings
• Calibration values
• Servo tuning parameters

Step-by-Step Guide to Diagnose Laser Auto Focus Problem

Step 1: Check System Alarm Messages

I always begin by reviewing alarm information on the CNC controller.

Look for messages related to:

• Focus motor faults
• Servo drive errors
• Height controller alarms
• Communication failures

Alarm codes often provide the fastest path to identifying the root cause.

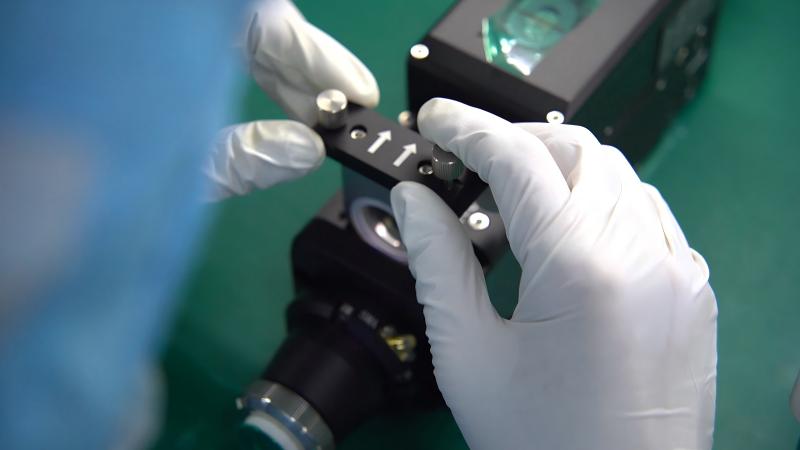

Step 2: Inspect the Focus Lens Assembly

Turn off the machine and remove the protective lens and focus lens for inspection.

تحقق من:

• تراكم الغبار
• التلوث النفطي
• Scratches
• Cracks

Clean the optics using approved lens-cleaning materials and replace damaged components immediately.

Step 3: Test Auto Focus Motor Operation

Activate the manual focus adjustment function from the control panel.

Observe whether:

• The motor moves smoothly
• The focus position changes correctly
• Abnormal noises occur
• Error messages appear

If the motor fails to respond, inspect the motor wiring and drive system.

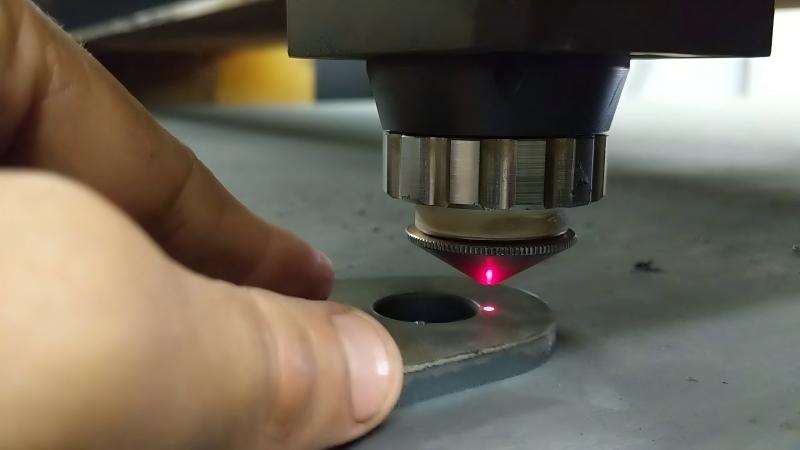

Step 4: Verify Height Sensor Performance

The height sensor plays a critical role in maintaining focus accuracy.

To test the sensor:

1. Check sensor indicator lights.
2. Verify cable connections.
3. Perform a height calibration procedure.
4. Monitor sensor feedback values.

Unstable readings may indicate contamination or sensor failure.

Step 5: Inspect Electrical Connections

Carefully examine all cables connecting the cutting head and controller.

Pay attention to:

• Loose plugs
• أسلاك تالفة
• Bent pins
• Corrosion

Electrical issues are often responsible for intermittent laser auto focus problem symptoms.

Step 6: Review Auto Focus Parameters

Access the machine’s parameter settings and compare them with manufacturer recommendations.

Verify:

• Focus position offsets
• Material-specific focus values
• Servo settings
• Calibration data

If necessary, restore factory settings and recalibrate the focus system.

Step 7: Perform a Cutting Test

After completing inspections and adjustments, perform a test cut using a known material.

Evaluate:

• جودة الحافة
• Kerf consistency
• Slag formation
• Cutting penetration

Successful cutting results confirm that the auto focus system is functioning correctly.

Preventive Maintenance Tips for Auto Focus Systems

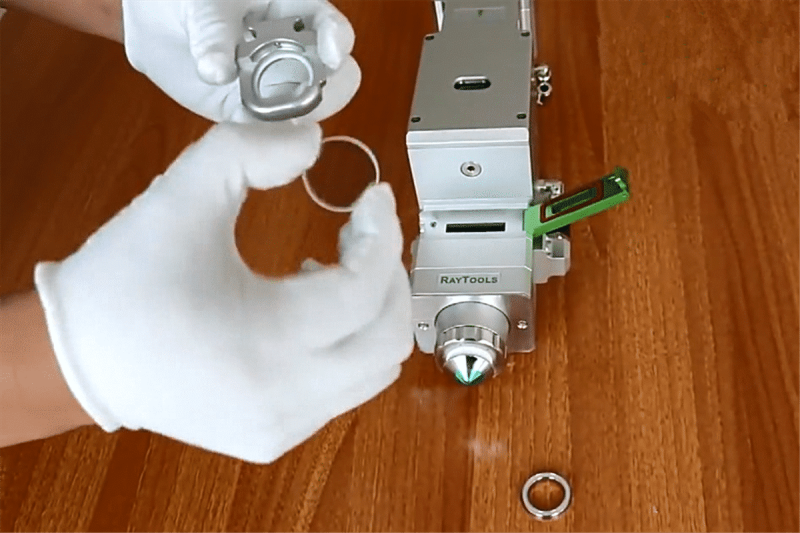

Clean Optical Components Regularly

Regular lens cleaning prevents contamination from affecting focus accuracy.

I recommend inspecting optics daily in high-production environments.

Monitor Sensor Condition

Keep the height sensor clean and free from dust, slag, and metal particles.

Routine cleaning helps maintain stable focus control.

Inspect Wiring and Connectors

Check electrical connections during scheduled maintenance intervals.

Early detection of cable wear can prevent unexpected failures.

Update Software and Parameters

Manufacturers frequently release software updates that improve system stability and performance.

Keeping software current helps reduce troubleshooting issues.

الأسئلة الشائعة

خاتمة

أ laser auto focus problem can significantly affect cutting quality, production efficiency, and machine reliability. Fortunately, most issues can be diagnosed systematically by checking alarm messages, inspecting optics, testing the focus motor, verifying sensor operation, examining electrical connections, and reviewing software parameters.

By following this step-by-step troubleshooting guide and implementing regular preventive maintenance, you can reduce downtime, improve cutting consistency, and keep your laser cutting system operating at peak performance. If you need additional technical assistance, contact the HARSLE support team for professional guidance and troubleshooting support.
