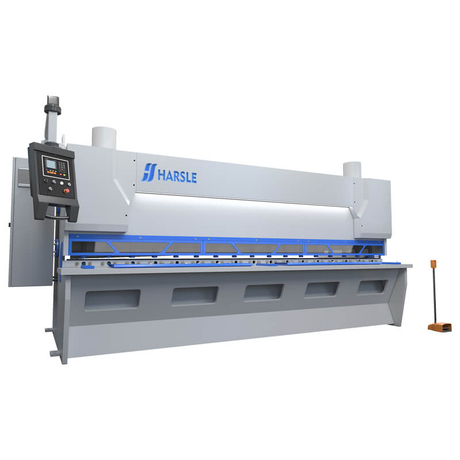

4mm Hydraulic Swing Beam Shearing Machine

Views: 25     Author: Site Editor     Publish Time: 2023-05-30      Origin: Site Inquire

Shearing Machine

Hydraulic Shearing Machine

A hydraulic swing beam shearing machine, also known as a hydraulic guillotine shear, is a type of industrial machine used for cutting sheet metal and plate materials. It is commonly used in various metalworking industries such as fabrication shops, automotive manufacturing, and construction.

The machine consists of a robust frame with a movable upper blade and a stationary lower blade. The swing beam design allows the upper blade to pivot from a vertical position to an inclined position, where it moves down to cut the material against the fixed lower blade. The swinging motion of the beam provides a mechanical advantage, allowing for efficient and precise shearing.

Here are some key features and components of a hydraulic swing beam shearing machine:

1. Hydraulic System: The machine is powered by a hydraulic system that controls the movement of the upper blade. It uses hydraulic cylinders and a hydraulic pump to generate the necessary force for cutting.

2. Cutting Capacity: Hydraulic swing beam shearing machines are available in various sizes and cutting capacities, ranging from a few millimeters to several centimeters. The cutting capacity depends on factors such as the machine's power, blade length, and material being cut.

3. Back Gauge: A back gauge is an adjustable stop that positions the sheet metal or plate for accurate and repeatable cuts. It can be manually adjusted or equipped with motorized controls for precise positioning.

4. Blade Gap Adjustment: The blade gap refers to the distance between the upper and lower blades. It can be adjusted to accommodate different material thicknesses, ensuring clean and burr-free cuts.

5. Control System: Modern hydraulic swing beam shearing machines often have user-friendly control panels. These panels allow operators to set parameters such as cutting length, cutting angle, and back gauge position. Some machines may also have programmable features for automated cutting operations.

6. Safety Features: To ensure operator safety, shearing machines are equipped with safety devices such as safety light curtains, emergency stop buttons, and protective guards. These features help prevent accidents and injuries during machine operation.

Hydraulic swing beam shearing machines are known for their versatility, accuracy, and high productivity. They are commonly used for cutting materials like steel, aluminum, stainless steel, and various alloys. These machines are essential in metal fabrication processes, where precise and clean cuts are required for manufacturing various components and products.

Shearing Machine

Main Features

● The streamlined welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.

● The motors for the back gauge are controlled by inverter, which can achieve high positioning accuracy 0.05mm of the backgauge by changing the frequency and voltage of motor.

● Top blade with two cutting edges and bottom blade with four cutting edges (6CrW2Si).

● X axis(Backgauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs.

● Pressing foot can fix the metal sheet during cutting operation which can eliminate operation error.

● Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders.

● Foot switch with emergency button can stop the machine immediately when accident happens.

● Adjusting knife gap between upper and bottom blades can achieve better cutting performance.

● Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.

Technical Parameters

No. Item Unit 4*2500
1 Max cutting thickness mm 4
2 Max cutting length mm 2500
3 Throat depth mm 150
4 Cutting angle ° (degree) 1°30'
5 Cutting speed Cutting times/minutes 14
6 Cutting Blade length mm 1300*2
quantity pcs 2(upper)+2(bottom)
7 Backgauge travel mm 500
speed mm/sec 180
accuracy mm ±0.02
8 Front arms length mm 800
quantity pcs 3
9 Spring pressure cylinder pcs 10
10 Main motor KW 5.5
11 Control system \ E21S
12 Dimension (L*W*H)mm 3040*1550*1550
13 Weight kg 3300

Product Details

Shearing Machine4X2500_02Shearing MachineShearing Machine
