80 Ton Eccentric Deep Throat Punching Machine Factory

Views: 29     Author: Site Editor     Publish Time: 2023-09-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Deep Throat Punching Machine


Punching Machine

A punching machine, also known as a punch press, is a piece of machinery used in manufacturing and metalworking processes. It's designed to punch holes, slots, or other shapes in materials such as metal, plastic, paper, or fabric. These machines are a crucial part of various industries and are used for a wide range of applications, including creating parts for products like automotive components, electronic devices, and appliances.


Features:

1. Operation: Punching machines operate by using a punch and die set. The punch is the tool that creates the hole or shape, and the die is the counterpart that provides the necessary support and shape to the material being punched.


2. Types of Punching Machines:

Mechanical Punch Presses: Operated using a mechanical mechanism, typically using a flywheel to store and release energy for the punching action.

Hydraulic Punch Presses: Utilize hydraulic systems to generate the force needed for punching. They are known for their high force capabilities and accuracy.

Pneumatic Punch Presses: Use compressed air to power the punching action, suitable for lighter applications.


3. Applications:

Creating holes in metal sheets for bolts, screws, or other fasteners.

Forming specific shapes or profiles in sheet metal for various products.

Perforating materials for filtration purposes.

Manufacturing electrical enclosures, brackets, and other components.


4. Safety Precautions:

Operators should receive proper training in the use of punching machines.

Always wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection.

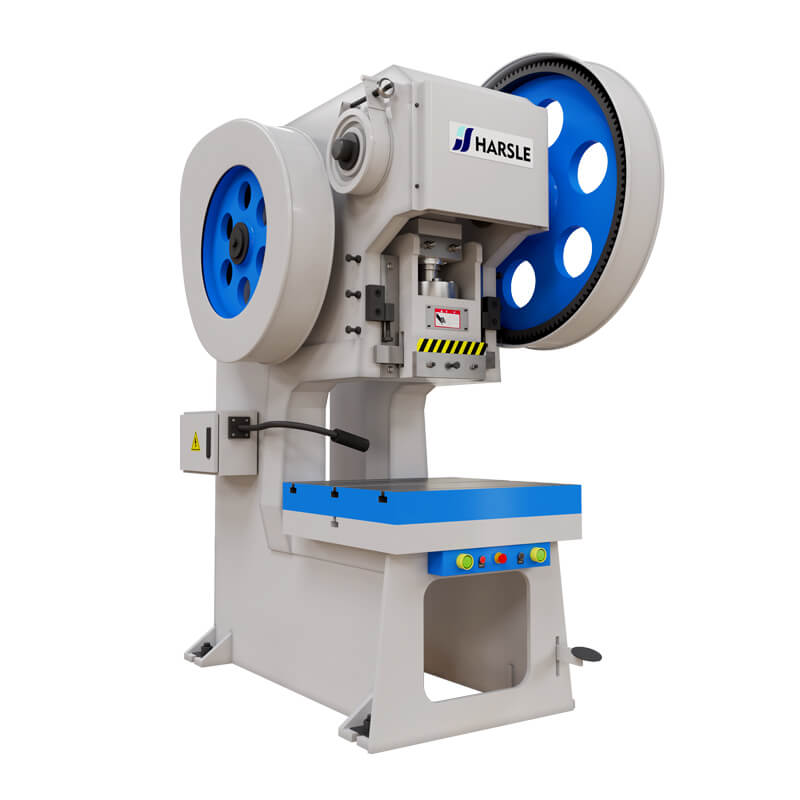

Deep Throat Punching Machine

Main Features

● Deep throat type design can put large size stamping mold and work with larger working area compared with common power press machine.

● With a rigid turn-key clutch, the press has single or continuous operation standards.

● The punch press uses a single type brake. The sliding block is equipped with a press-down type safety device that can be pressed down to protect the entire machine.

● Avoid being damaged in case of overpressure.

● The machine has the advantages of high universality, high precision, reliable performance and convenient operation.


Technical Parameters

No. Item. Unit J21S-80T
1 Nominal Force KN 800
2 Slide Storke MM 115
3 Number of Stroke times/min 45
4 Closed Height mm 410
5 Closed Height Adjustment mm 60
6 Throat Depth mm 500
7 Column Distance mm 360
8 Table Size Front and Back mm 500
Left and Back mm 750
9 Slide Bottom Size Front and Back mm 250
Left and Back mm 300
10 Shouk Dimension Diameter mm 60
Depth mm 100
11 Thickness of Table mm 90
12 Dimension Front and Back mm 1600
Left and Back mm 1300
Height mm 2600
13 Motor kw 7.5
14 Weight kg 4800


Product Details

Deep Throat Punching MachineDeep Throat Punching MachineDeep Throat Punching MachineDeep Throat Punching Machine
