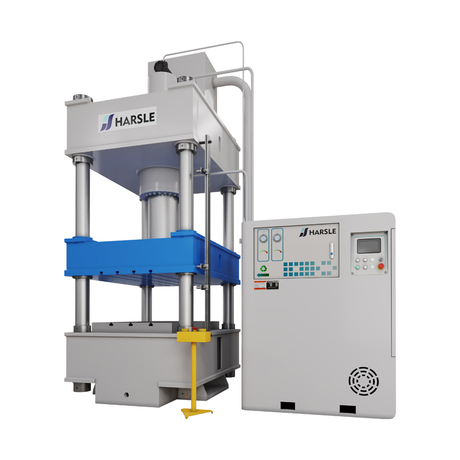

Factory Wholesale 630 Tons Hydraulic Press Machine For Sale. A hydraulic press is a machine that uses liquid as the working medium and is made according to Pascal's principle to transfer energy to realize various processes. The hydraulic press generally consists of three parts: the machine (host), the power system and the hydraulic control system. Hydraulic presses are classified into valve hydraulic presses, liquid hydraulic presses, and engineering hydraulic presses.
● Computer optimized structure design; four-column structure: simple, economic and practical.
● Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points,Hydraulic integrated system is adopted seperate control unit.
● Independent electrical control, reliable,audio-visual and convenient for maintenance.
● Centralized button control system,with adjustment,hand and semi-auto operation modes at operator’s choice(semi-automatic has two type tech:set-stroke single and set-pressure single).
● The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.
| No. | Item | Unit | Y27-630T | |
| 1 | Nominal Force | KN | 6300 | |
| 2 | Return force | KN | 850 | |
| 3 | Working pressure | Mpa | 25 | |
| 4 | Cushion pressure | KN | 2500 | |
| 5 | Daylight of slide | mm | 900 | |
| 6 | Stroke | Upper slide | mm | 900 |
| Cushion | mm | 350 | ||
| 7 | Worktable size | L-R | mm | 1600 |
| F-B | mm | 1600 | ||
| 8 | Cushion size | L-R | mm | 1120 |
| F-B | mm | 1120 | ||
| 9 | Speed of slide | Descent | mm/s | 130 |
| Pressing | mm/s | 5~12 | ||
| Return | mm/s | 85 | ||
| 10 | Table height above floor | mm | 500 | |
| 11 | Dimension | Front and Back | mm | 4150 |
| Left and Right | mm | 2600 | ||
| 12 | Motor power | kw | 2*22 | |
