QC11K-20x2500 shearing machine with P40 manufacturers

Views: 27     Author: Site Editor     Publish Time: 2023-04-25      Origin: Site


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

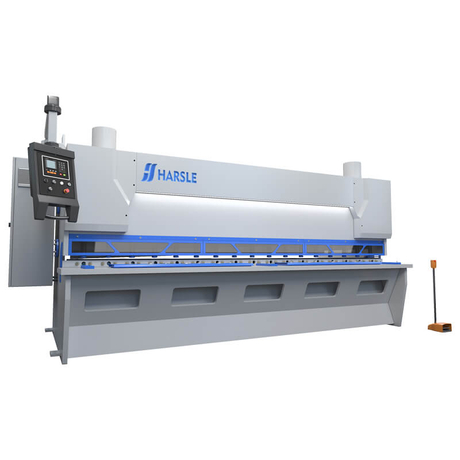

CNC Hydraulic Guillotine Shearing Machine with ELGO P40, QC11K-20×2500 shearing machine manufacturers. The shearing machine is a machine that uses one blade to reciprocate linear motion relative to the other blade to cut the plate. With the help of the moving upper blade and the fixed lower blade, a reasonable blade gap is used to apply shearing force to the metal plates of various thicknesses, so that the plates are broken and separated according to the required size. Shearing machine is a kind of forging machinery, and its main function is the metal processing industry. Products are widely used in aviation, light industry, metallurgy, chemical industry, construction, ships, automobiles, electric power, electrical appliances, decoration and other industries to provide the required special machinery and complete sets of equipment.

Main features

●The streamlined welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.

●The motors for backgauge are controlled by servo motor, which can achieve high accuracy and fast speed.

●Top blade with four cutting edges and bottom blade with four cutting edges (6CrW2Si).

●Knife gap and cutting angle can be programmed by CNC Controller ELGO P40 only by inputting material thickness.

●Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders.

●Foot switch with emergency button can stop the machine immediately when accident happens.

●Multi-Language controller operational interface will be easy for customers from all over the world.

●Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.

sheet metal shear for sale

Technical Parameters
No. Item Unit 20*2500
1 Max cutting thickness mm 20
2 Max cutting length mm 2500
3 Throat depth mm 200
4 Cutting angle(adjustable) mm 30'-3°
5 Cutting speed Cutting times/minutes 10~20
6 Cutting Blade length mm 1300*2
quantity pcs 2(upper)+2(bottom)
7 Backgauge travel mm 800
speed mm/sec 200
accuracy mm ±0.01
8 Front arms length mm 800
quantity pcs 3
9 Spring pressure cylinder pcs 10
10 Main motor KW 22
11 Control system / P40
12 Dimension (L*W*H)mm 3400*2260*2520
13 Weight kg 15800
Product details

sheet metal shear for sale

sheet metal shear for sale

sheet metal shear for sale
