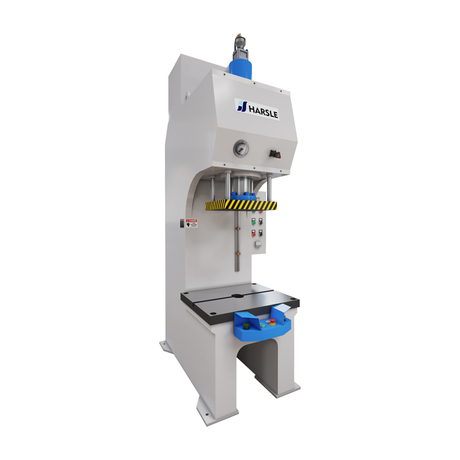

Top Level Y32 160 Ton Hydraulic Press Machine Price

Views: 57     Author: Site Editor     Publish Time: 2023-04-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Hydraulic press description

Top Level Y32 160 Ton Hydraulic Press Machine Price. A hydraulic press is a machine that uses liquid as the working medium and is made according to Pascal's principle to transfer energy to realize various processes. The hydraulic press generally consists of three parts: the machine (host), the power system and the hydraulic control system. Hydraulic presses are classified into valve hydraulic presses, liquid hydraulic presses, and engineering hydraulic presses.

Main features

● Computer optimized design, 3-beam, 4-column structure, simple but with high performance price ratio.

● Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.

● Independent electrical control, reliable, audio-visual and convenient for maintenance.

● Centralized button control system, with adjustment, hand and semi-auto operation modes at operator's choice.

● Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.

● The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements. The frame is entirely welded with steel plates and treated to relive stress by tempering.

 Hydraulic Press

Technical Parameter

No. Item Unit Y32-160T
1 Nominal Force KN 1600
2 Knockout force KN 250
3 Max opening height mm 1000
4 Slide stroke mm 500
5 Knockout stroke mm 200
6 Worktable size L-R mm 800
F-B mm 800
7 Speed Fast down mm/s 80
Working mm/s 6~15
Return mm/s 80
8 Table height above floor mm 550
9 Dimension Front and Back mm 2400
Left and Right mm 1300
Height mm 3200
10 Motor power kw 15


Product details

 Hydraulic Press Hydraulic Press Hydraulic Press Hydraulic Press
