160T3200 6+1 Axis Press Brake with DA58T

5 39 Reviews

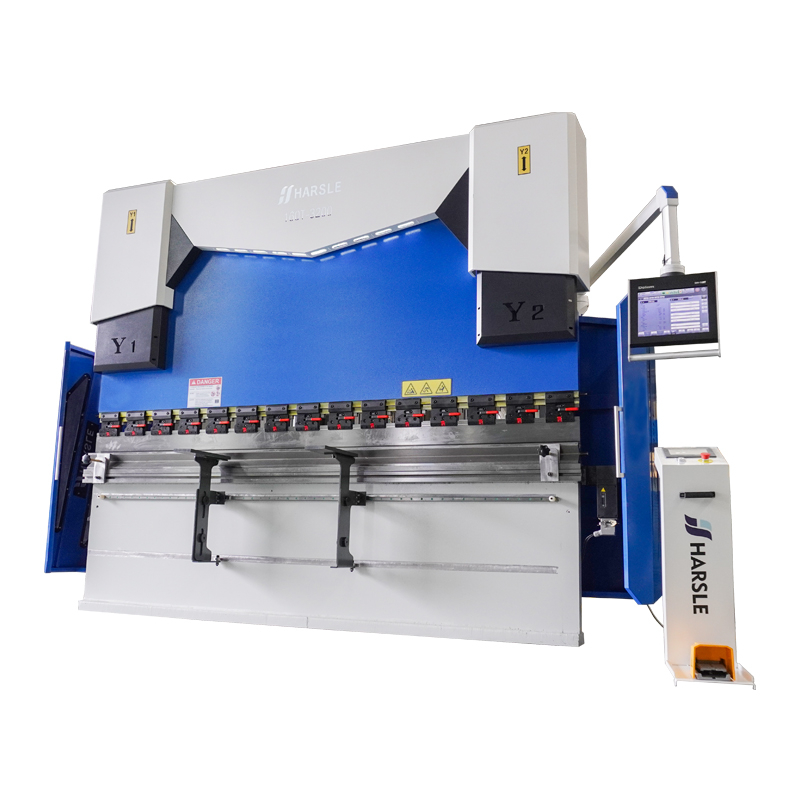

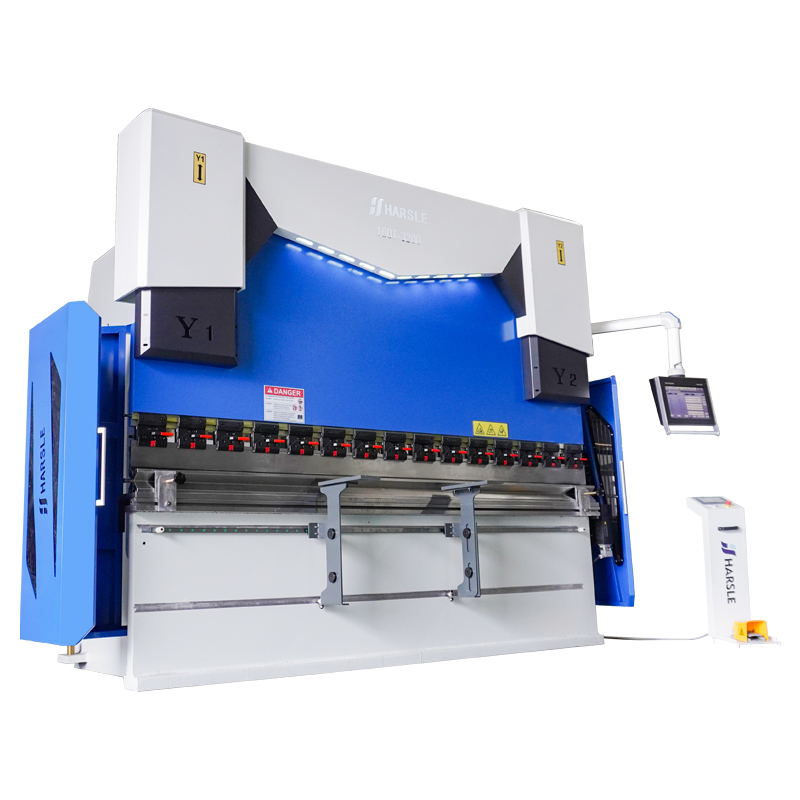

SMART WE67K-160T/3200 Press Brake with DELEM DA58T and 6+1 Axis
Price: $ 49800 / set
Discount Price: $ 43500 / set
  • WE67K

  • HARSLE

  • Smart Press Brake

SKU:
Availability:
Quantity:

Product Description

Press Brake 6+1 Axis

HARSLE WE67K-160T3200 press brake machine includes the working area LED lighting, CNC motorized crowning system, adjustable stop fingers that can not only move in a left and right direction but can also be fine-adjusted vertically, which ensures bending accuracy within the controlled range, its front part is with tempering and other special treatments for long service life, the pedal switch built-in Z-axis control, you can touch the screen to modify and control Z1/Z2 axis, so that the backgauge can achieve 6-axis control, which is also the key for more flexible bending.

Main Features

● The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the CNC press brake.

● WE67K Series CNC press brake is redesigned based on users’ preference to increase productivity and keep the costs at minimum level with high bending accuracy and low-cost maintenance.

● High quality and repetitive bending accuracy is obtained by using synchronized cylinder and proportional valves

● Bending angle calculation and back gauge position calculation can be achieve by inputting metal sheet material information, sheet size and punch and die size.

● Crowning system can work with CNC controller automatically to achieve higher bending accuracy and linearity. Hydraulic crowning and motorized crowing system are optional.

● CNC back gauge with several axes can work with different shape work-pieces well.


Technical Parameters

No.ItemUnit160T/3200
1Bending forceKn1600
2Bending Lengthmm3200
3Columns distancemm2700
4Throat depthmm400
5Cylinder stroke(Y1,Y2)mm200
6Die loading height(Daylight)mm420
7Y-axis down speedmm/sce180
8Y-axis return speedmm/sce120
9Y-axis working speedmm/sce4~15adjustable)
10Y-axis accuracymm±0.01
11Work-piece linearitymm0.3/m
12Max. Back gauge distancemm500
13X-axis and R-axis speedmm/sec400
14X-axis and R-axis accuracymm±0.01
15Front sliding armspcs2
16Bending angle accuracy(')≤±18
17Back gauge finger stopperpcs4
18Main motorKW11
19DimensionLength(mm)3200
Width(mm)1600
Height(mm)2500
20Weightkg11000


Product Details

Press Brake 6+1 AxisPress Brake 6+1 AxisPress Brake 6+1 AxisPress Brake 6+1 AxisPress Brake 6+1 AxisPress Brake 6+1 AxisPress Brake 6+1 Axis
