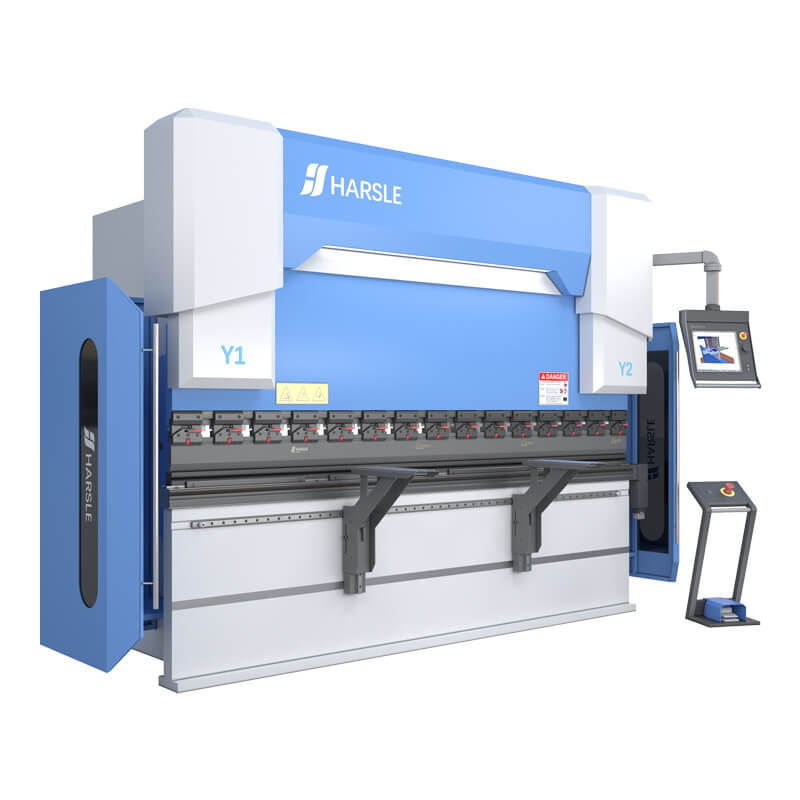

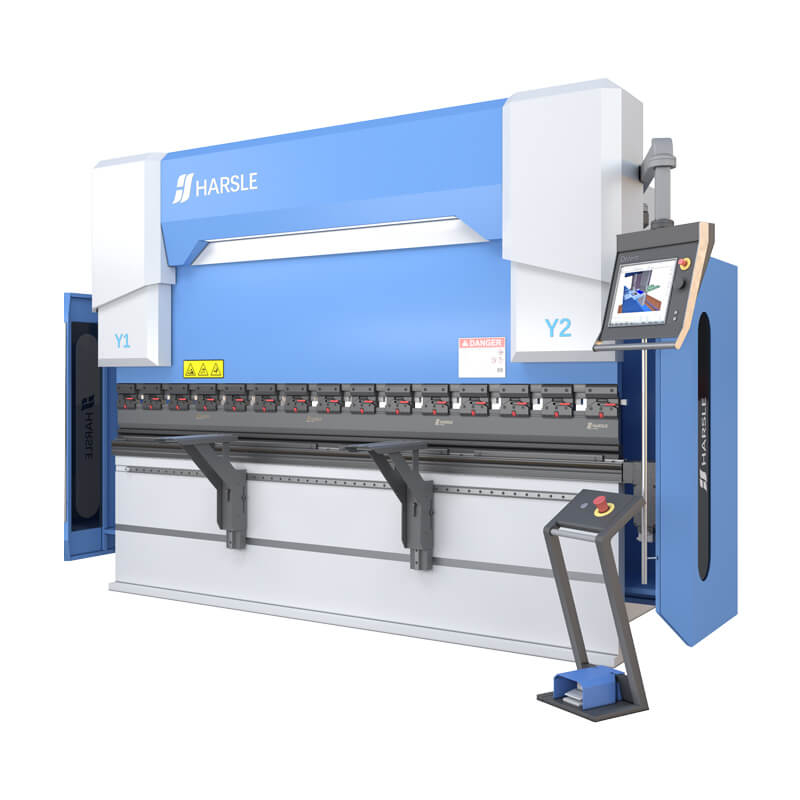

CNC Electro-hydraulic Press Brake Machine with DA-66T

5 105 Reviews
  • WE67K-TOUCH

  • HARSLE

Availability:
Quantity:
CNC Electro-hydraulic Press Brake Machine with DA-66T
CNC Electro-hydraulic Press Brake Machine with DA-66T
CNC Electro-hydraulic Press Brake Machine with DA-66T

Features

The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling. Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile than ever.

Product Description

CNC hydraulic press brakeChina press brake manufacturerpress brake for saleDA-66T Press brakeCNC Bending machineservo press brake machine2D Bending programmingCNC Press brakeCNC hydraulic press brakeGenius-press-brake

Specification

Model

63T/1500

63T/2500

110T/3200

100T/4000

125T/3200

125T/4000

160T/3200

160T/4000

250T/3200

250T/4000

Bending Length

mm

1500

2500

3200

4200

3200

4000

3200

4000

3200

4000

Bending Capacity

KN

630

630

1100

1100

1250

1250

1600

1600

2500

2500

Column Distance

mm

1100

2060

2700

3300

2700

3300

2700

3300

2700

3300

Gap

mm

370

370

400

400

400

400

400

400

400

400

Daylight Opening

mm

350

350

400

400

400

400

400

400

400

400

Stroke

mm

200

200

200

200

200

200

200

200

200

200

Table Height

mm

880

880

880

880

880

880

880

880

880

880

Table Width

mm

150

150

200

200

200

200

200

200

200

200

Fast Approach Speed

mm/s

200

200

200

200

200

200

200

200

200

200

Max. Bending Speed

mm/s

10

10

10

10

10

10

10

10

10

10

Return Speed

mm/s

160

160

160

160

160

160

140

140

140

140

Motor Power

KW

5.5

5.5

7.5

7.5

11

11

11

11

15

15

Length

mm

1825

2825

3500

4500

3500

4500

3500

4500

3500

4500

Width

mm

1650

1650

1650

1650

1650

1650

1650

1650

1730

1730

Height

mm

2600

2430

2540

2540

2540

2540

2580

2580

2580

2580

Weight

kg

4600

5600

8000

950

8500

90000

10000

12000

15000

17000


Model

300T/3200

300T/4000

300T/5000

400T/4000

400T/5000

400T/6000

500T/4000

500T/5000

500T/6000

600T/6000

Bending Length

mm

3200

4000

5000

4000

5000

6000

4000

5000

6000

6000

Bending Capacity

KN

3000

3000

3000

4000

4000

4000

5000

5000

5000

6000

Column Distance

mm

2600

3150

4050

3150

4050

5050

3050

4050

5050

5050

Gap

mm

400

400

400

400

400

400

400

400

400

400

Daylight Opening

mm

400

400

400

400

400

400

610

610

610

650

Stroke

mm

200

200

200

320

320

320

320

320

320

320

Table Height

mm

880

880

880

880

880

880

990

990

990

990

Table Width

mm

250

250

250

250

250

250

300

300

300

300

Fast Approach Speed

mm/s

80

80

80

80

80

80

75

75

75

80

Max. Bending Speed

mm/s

8

8

8

8

8

8

8

8

8

8

Return Speed

mm/s

85

85

85

80

80

80

75

75

75

80

Motor Power

KW

18.5

18.5

18.5

30

30

30

37

37

37

40

Length

mm

3300

4300

5300

4300

5300

6400

4500

5500

6500

6500

Width

mm

1950

1950

1950

2100

2100

2100

2700

2700

2700

2700

Height

mm

2670

2670

2620

3100

3100

3170

5000

5000

5000

5000

Weight

kg

20000

22000

26000

27000

32000

38000

40000

45000

55000

65000
