WE67K
HARSLE
| Quantity: | |
|---|---|
|
| |
Product Description

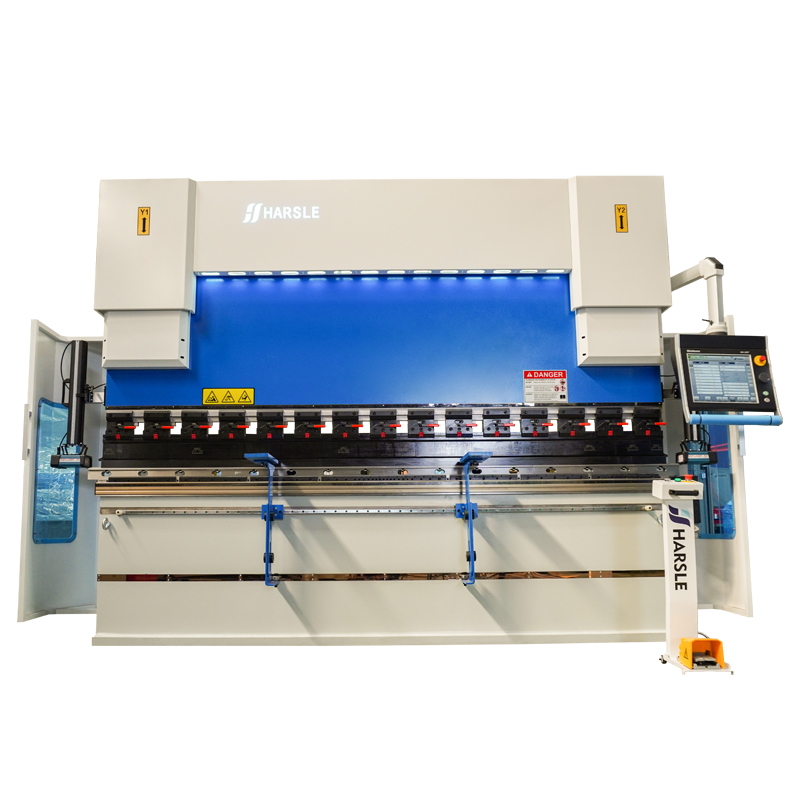

HARSLE Genius press brake is a high-performance machine used for bending and shaping metal sheets with precision and accuracy. It is equipped with advanced DA69T touch controller that allows for easy programming and operation. With its robust construction and innovative features, this press brake can handle a wide range of metal bending applications, from simple to complex shapes. The HARSLE CNC press brake is designed to deliver exceptional performance and productivity while ensuring maximum safety and operator comfort. It is suitable for use in various industries, including automotive, aerospace, construction, and manufacturing.
Main Features
● The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the CNC press brake.
● WE67K Series CNC press brake is redesigned based on users’ preference to increase productivity and keep the costs at minimum level with high bending accuracy and low-cost maintenance.
● Bending angle calculation and back gauge position calculation can be achieve by inputting metal sheet material information, sheet size and punch and die size.
● Crowning system can work with CNC controller automatically to achieve higher bending accuracy and linearity. Hydraulic crowning and motorized crowing system are optional.
● CNC back gauge with several axes can work with different shape work-pieces well.
Technical Parameters
| No. | Item | Unit | 100T/3200 |
| 1 | Bending force | kW | 100 |
| 2 | Bending length | mm | 3200 |
| 3 | Columns distance | mm | 2700 |
| 4 | Throat depth | mm | 400 |
| 5 | Cylinder stroke(Y1,Y2) | mm | 200 |
| 6 | Die loading height(Daylight) | mm | 420 |
| 7 | Y-axis down speed | mm/sec | 180 |
| 8 | Y-axis return speed | mm/sec | 120 |
| 9 | Y-axis working speed | mm/sec | 4~15(adjustable) |
| 10 | Y-axis accuracy | mm | ±0.01 |
| 11 | Working-piece linearity | mm | 0.3/m |
| 12 | Max. Back gauge distance | mm | 500 |
| 13 | X-axis and R-axis speed | mm/sec | 400 |
| 14 | X-axis and R-axis accuracy | mm | ±0.01 |
| 15 | Front sliding arms | pcs | 2 |
| 16 | Bending angle accuracy | ( ' ) | ≤±18 |
| 17 | Back gauge finger stopper | pcs | 4 |
| 18 | Main motor | KW | 7.5 |
| 19 | Dimension | Length(mm) | 3300 |
| Width(mm) | 1580 | ||
| Height(mm) | 2400 | ||
| 20 | Weight | kg | 8500 |
