Y32
HARSLE
| Quantity: | |
|---|---|
Product Description
Specification
Item | Unit | Y32 Door Embossing Machine | ||||||
6000T | 4500T | 3600T | 3000T | 2500T | 2000T | |||
Nominal force | KN | 60000 | 45000 | 36000 | 30000 | 25000 | 20000 | |
Return force | KN | 500 | 435 | 435 | 435 | 425 | 425 | |
Max. Pressure of Main Cylinder | MPa | 25 | 25 | 25 | 25 | 25 | 25 | |
Ram Stroke | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
Max. Opening Height | mm | 600 | 600 | 600 | 600 | 600 | 600 | |
Stroke speed of slide | Descent | mm/s | 100-120 | 100-120 | 100-120 | 100-120 | 100-120 | 100-120 |
Pressing | mm/s | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | |
Return | mm/s | 100-120 | 100-120 | 100-120 | 100-120 | 100-120 | 100-120 | |
Dimension of working table | L-R | mm | 2100 | 2000 | 1600 | 1500 | 1500 | 1480 |
F-B | mm | 4000 | 3000 | 2600 | 2500 | 2500 | 2200 | |
Video
Download
Features

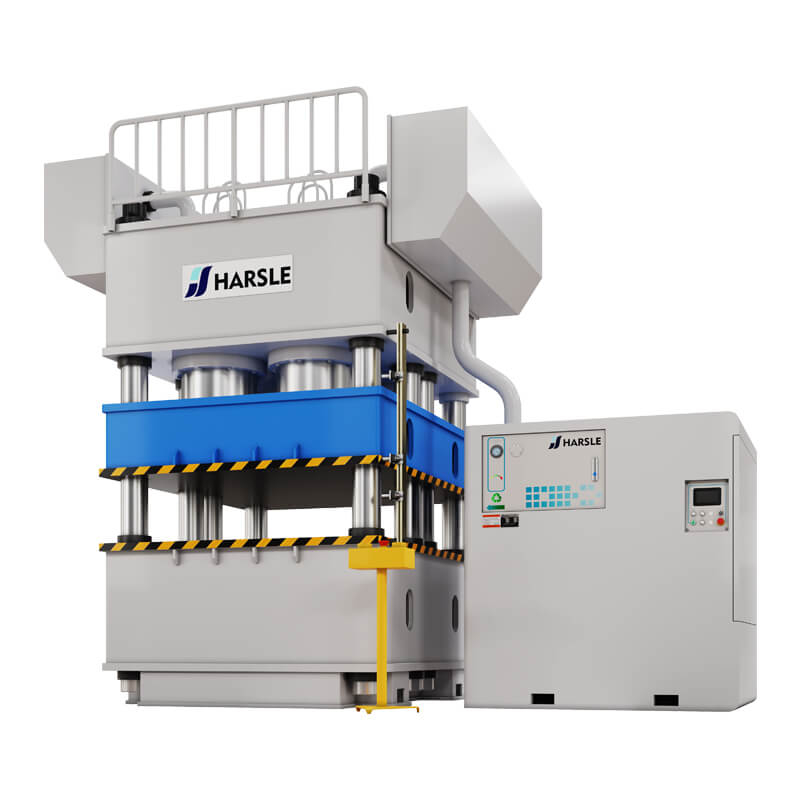

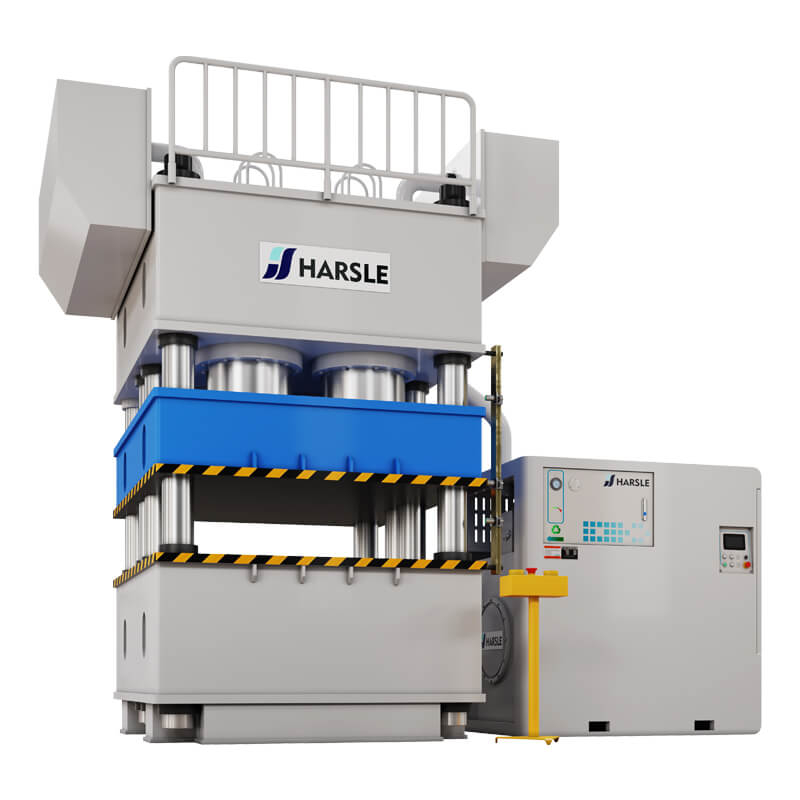

Hydraulic stainless steel metal door embossing machine is a multi-column and multi-cylinder structure, economical and practical, with high pressing accuracy. It has an independent hydraulic pump station and electrical control system. The hydraulic control adopts the integrated system of cartridge valve, with compact structure, reliable action, good sealing performance, long service life and easy installation and maintenance. The oil pressure is displayed by a digital display electric contact pressure gauge, and the upper limit of oil pressure can be set arbitrarily within the permissible range according to needs. The electrical system is centrally controlled by push-buttons, and the working pressure and stroke can be adjusted according to needs within the specified range.
