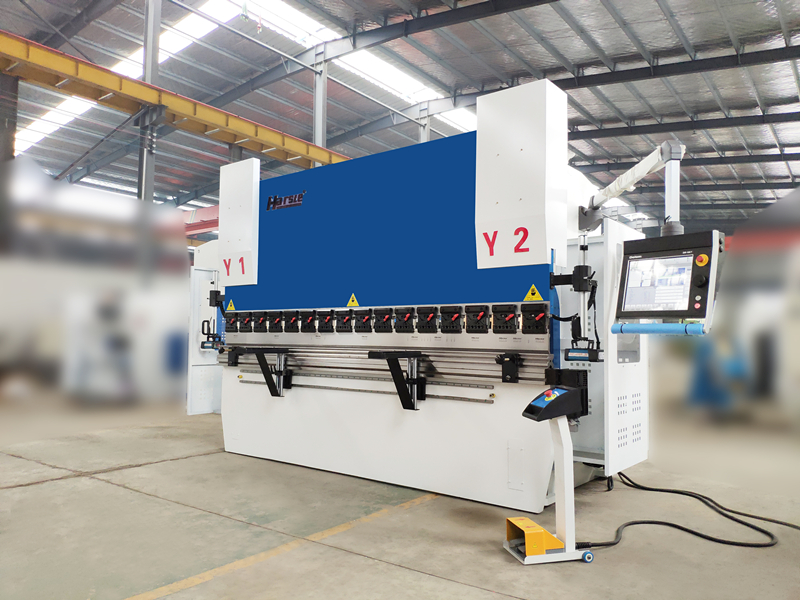

WE67K-110T3200 8-Axis CNC Press Brake Machine With DA-66T
You are here: Home » Showroom » Video Gallery » Press Brake » WE67K-110T3200 8-Axis CNC Press Brake Machine With DA-66T

WE67K-110T3200 8-Axis CNC Press Brake Machine With DA-66T

Views: 103     Author: Site Editor     Publish Time: 2018-10-30      Origin: Site Inquire

Features

In this CNC press brake system, the Y1 and Y2 axes operate as independent double acting hydraulic systems. Both axes share the same oil supply, but the flow to the valves as well as true position(s) of the ram are entirely and separately controlled by computer command.


Features:

● HARSLE Delem DA-66T 8-Axis Control

Y1,Y2,X1,X2,R1,R2,Z1,Z2-Axis for backgauge

DELEM Profile T Offline Software

Programmable Axis Speeds

Programmable Ram Opening

German Voith Hydraulic Pump

German Rexroth Hydraulic Valve

AMADA type double-side fast clamp

Bumping and Hemming Programming

DSP Laser Protector

Control Diagnostics

Graphic Simulation


The bending machine is a machine that can bend thin plates. Its structure mainly includes a bracket, a worktable and a clamping plate. The worktable is placed on the bracket. The worktable is composed of a base and a pressure plate. The base is composed of a seat shell, a coil and a cover plate, the coil is placed in a recess of the seat shell, and the top of the recess is covered with a cover plate. When in use, the coil is energized by the wire, and after the electricity is energized, a gravitational force is generated on the pressure plate, so as to realize the clamping of the thin plate between the pressure plate and the base. Due to the use of electromagnetic force clamping, the pressing plate can be made into various workpiece requirements, and the workpiece with side walls can be processed, and the operation is also very simple.
