Product Description

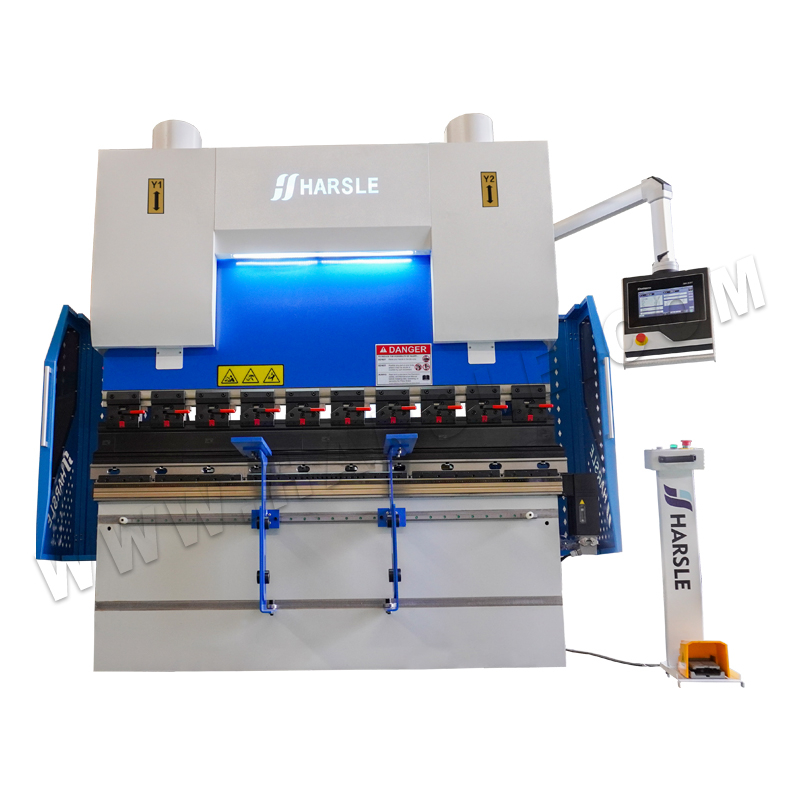

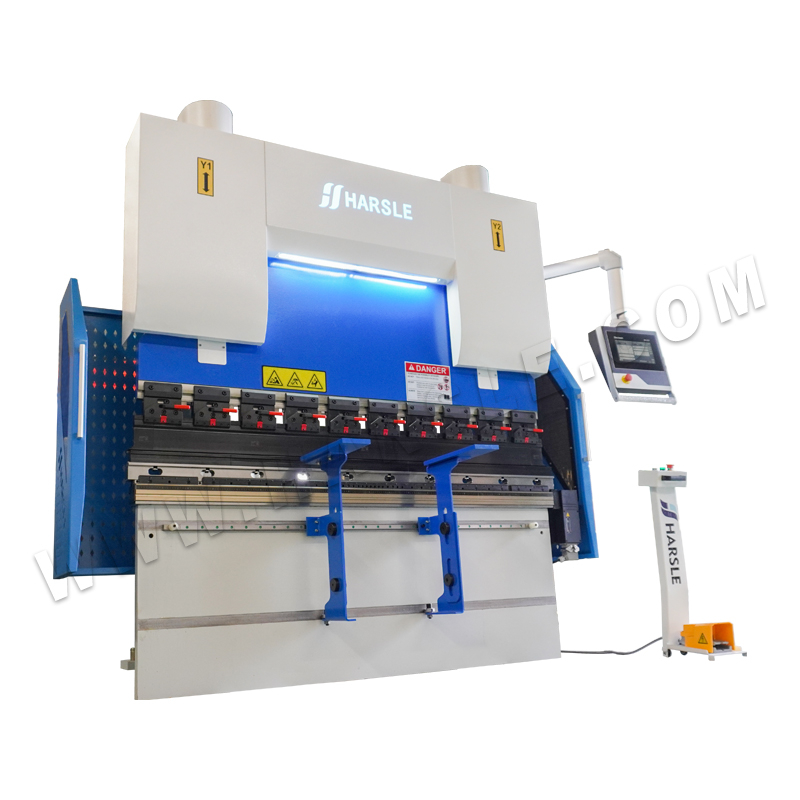

The equipment adopts a spindle power box to transmit bending pressure, heavy-duty ball screw and bearing, ultra-long life design, and sealed protection design to ensure key parts are not affected by external dust. The punch and die can be selected according to different processed products, with special treatments for long and durable service; the dual-axis backgauge (X+R) maximumly meets all bending requirements.
The bending machine is equipped with the DELEM DA53T control system, which is reliable and powerful, and simple to operate, helping companies to produce efficiently. HARSLE is committed to providing innovative solutions for high-precision processing.
Main Features
● HARSLE Servo Electric Press Brakes are no-hydraulic, flexible, reliable, and advanced bending machines. This next-generation machine idea combines green-eco-friendly machines with productivity, accuracy, flexibility, and reliability. The new concept offers low power consumption, less maintenance, and no hydraulic oil for operation.
● HARSLE Electric Press Brakes come with an advanced CNC controller, fast and accurate punch and die clamping, and a multi-axis back gauge system. Operators easily make perfect sheet metal parts at very low cost
●HARSLE utilizes the most stringent manufacturing technologies during production to manufacture the highest quality machines. Standard HARSLE electric press brake comes with a 3D graphical CNC controller offering simple operation, quick and easy 3D or numerical part programming easy setup of the machine, and auto calculation of the bend sequence.
Technical Parameters
No. | Item | Unit | 43T/2000 |
1 | Bending force | KN | 430 |
2 | Bending length | mm | 2000 |
3 | Columns distance | mm | 1400 |
4 | Throat depth | mm | 410 |
5 | Die loading height (Daylight) | mm | 470 |
6 | Y-axis stroke | mm | 200 |
7 | X-axis stroke | mm | 500 |
8 | R-axis stroke | mm | 140 |
9 | Z1/Z2-axis stroke | mm | 400 |
10 | Y-axis down speed | mm/sec | 180 |
11 | Y-axis return speed | mm/sec | 180 |
12 | Y-axis working speed | mm/sec | 50 |
13 | X-axis moving speed | mm/sec | 500 |
14 | R-axis moving speed | mm/sec | 200 |
15 | Z1/Z2-axis moving speed | mm/sec | 600 |
16 | Y-axis accuracy | mm | ±0.01 |
17 | X-axis accuracy | mm | ±0.02 |
18 | R-axis accuracy | mm | ±0.1 |
19 | Z1/Z2-axis accuracy | mm | ±0.1 |
20 | Y axis servo motor | KW | 6.5 |
21 | Power | kVA | 15 |
22 | Dimension | mm | 2020*1388*2439 |
23 | Weight | kg | 3300 |
