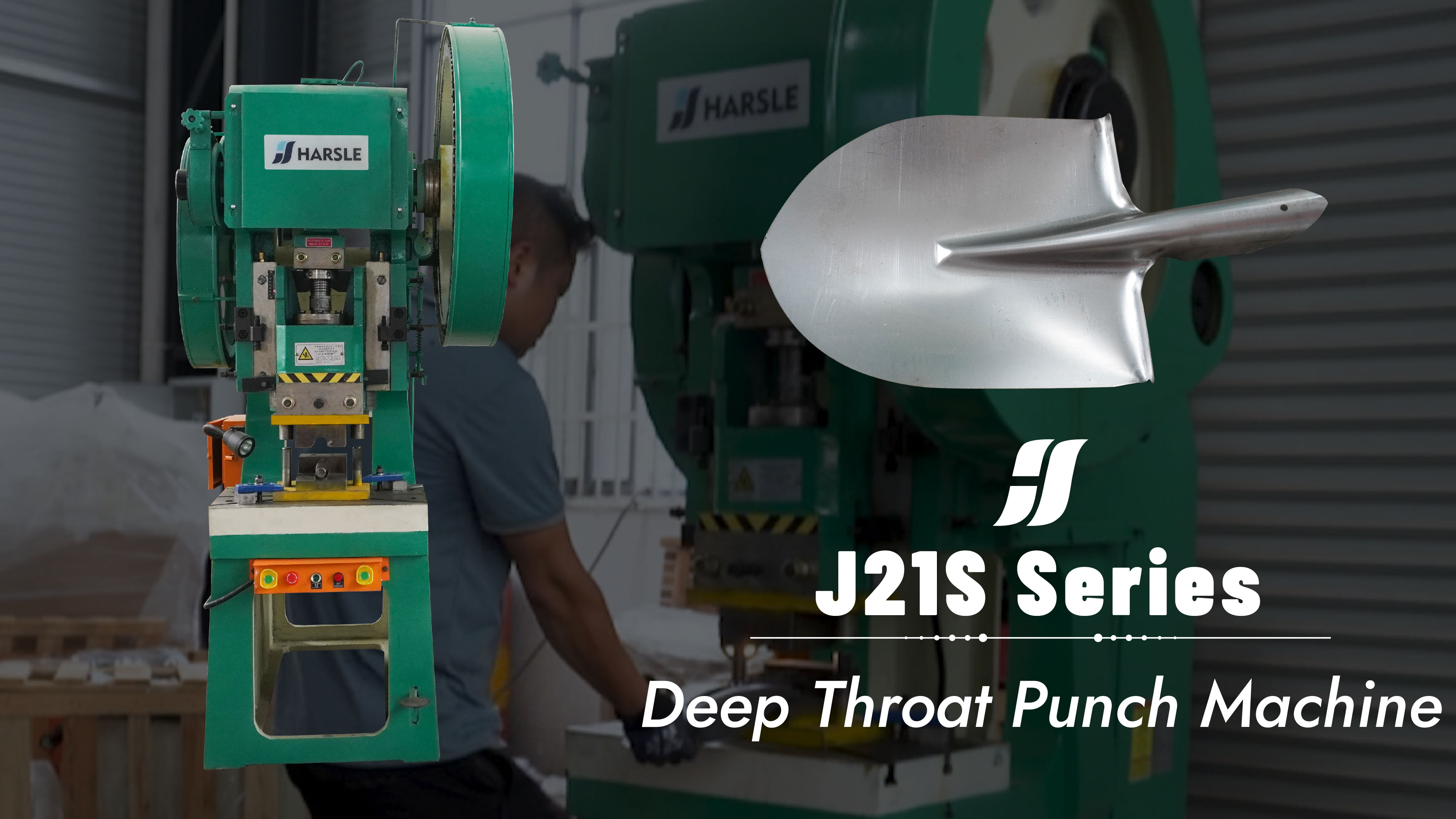

The HARSLE J21S series C-frame fixed bolster punch machine deepens the throat, and its throat depth is significantly deeper than the general punching machine. The HARSLE J21S series deep-throat punch machine has a large workspace, and it can finish the forming in one punch without the plate turning around. It is widely used for the machining of large size plates, and the machine adopts steel plates welded machine body with high strength and rigidness, and adopts the rigid rotating key type clutch which is convenient to operate and service, the machine has reliable performance and works smoothly. In the shovel production line, the HARSLE J21S series deepthroat machine mainly handles the rounding and marking of shovel heads to ensure the coordinated operation of the production line.


Operation Process.

deep throat punch machine

Release the red key.

deep throat punch machine

Press the green button on both sides at the same time. And then the machine starts,  put the plate in the right place of the mold, and step the pedal.

deep throat punch machine

Round mold.

It is used to roll the shovel head round to facilitate the subsequent installation of the wooden handle.

deep throat punch machine

deep throat punch machine

deep throat punch machine

deep throat punch machine

Logo mold.

It is used to stamp trademarks on shovelheads.

deep throat punch machine

deep throat punch machine

deep throat punch machine

Click the red button to close the machine.

deep throat punch machine

Product Demonstration.

deep throat punch machine

deep throat punch machine

This is all about this article. If you need help, pls don't hesitate to contact us.
