How to Operate The Hydraulic Clamping System For Your Press Brake

Views: 68     Author: Site Editor     Publish Time: 2022-06-01      Origin: Site Inquire

As an optional solution for our press brake machine tooling, WILA has focused on the R&D of the hydraulic clamping systems and supporting tools of press brake machine for many years, and its quality and service are trustworthy. Customers who have already purchased a press brake machine can also upgrade the clamping system.

Operate The Hydraulic Clamping System

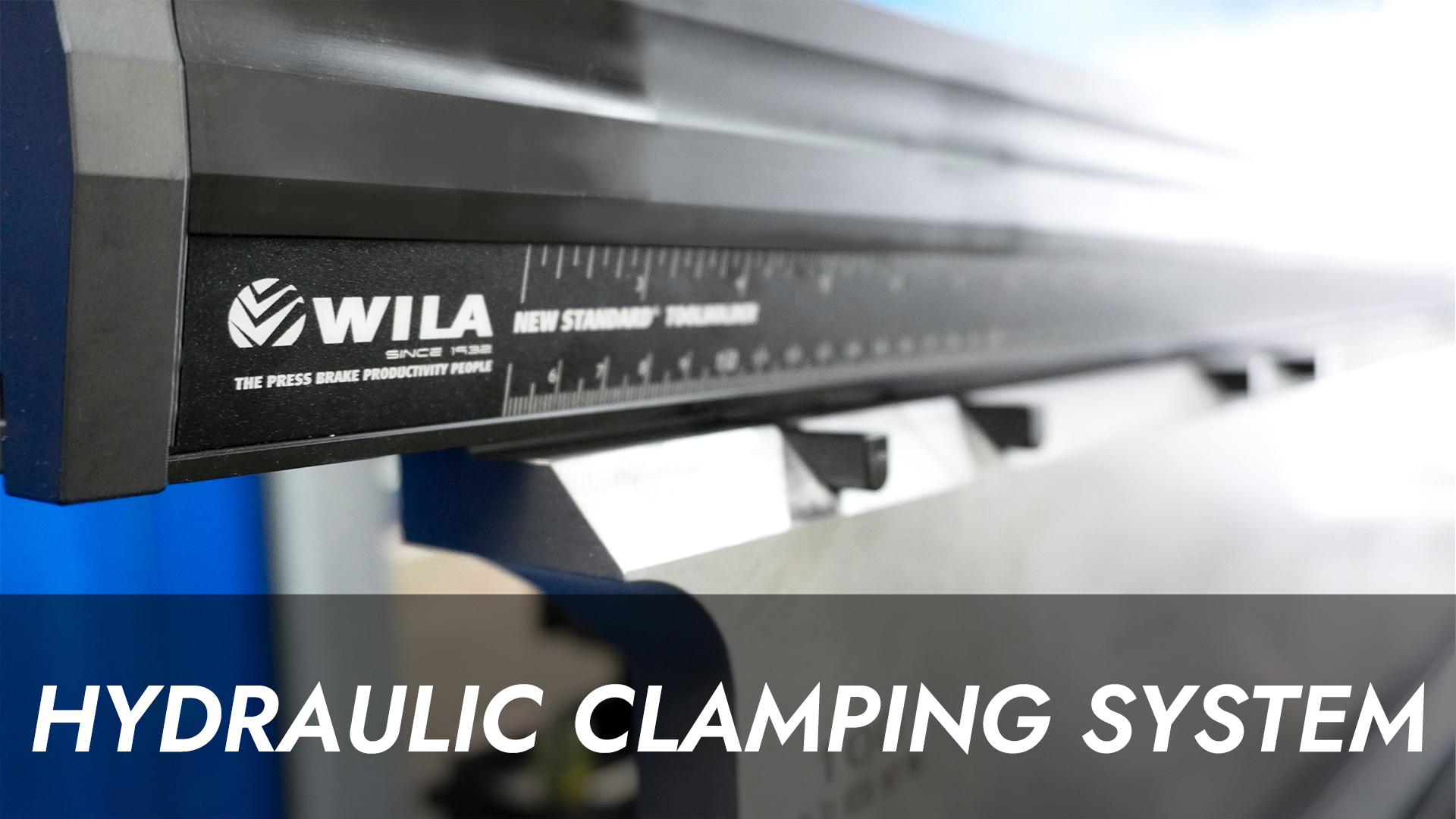

The WILA hydraulic clamping system can tighten the tool in three to four seconds; the hydraulic clamping system is finished with the first installation and commissioning, there is no need to make the alignment again when changing punches&dies later; the punches and dies can be installed on both side and the midline is always aligned; The full tool loading takes only 3 minutes, the punches and dies can be tightened at the same time; The punches and dies can be moved at will. Here we introduce the operations with the WILA hydraulic clamping system.


Punch Replacement

Click on the soft switch at the top of the screen to loosen the hydraulic clamping. At this point, the machine cannot be started and an alarm will appear on the screen, indicating that the punches are not clamped.

Operate The Hydraulic Clamping System

Press and hold the spring button to remove the punches.

Operate The Hydraulic Clamping System

Also, press and hold the spring button and install another set of punches.

Operate The Hydraulic Clamping System

Punch Clamping

After the punches are all installed, click the soft switch at the top of the screen again and the hydraulic clamping takes effect. The machine can be started normally at this time. That is all for this article and you can get more by the video below.
