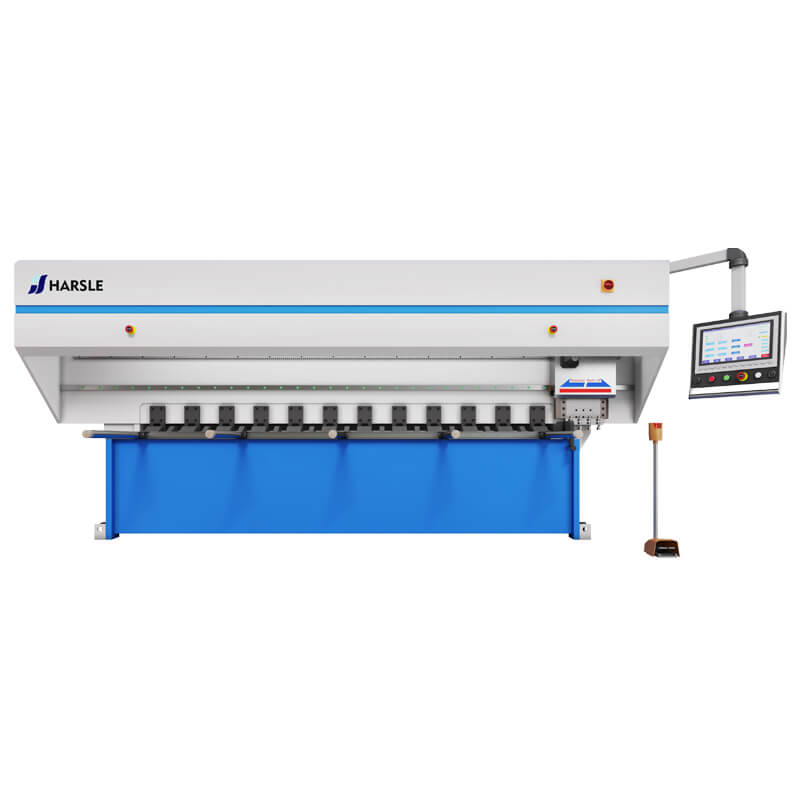

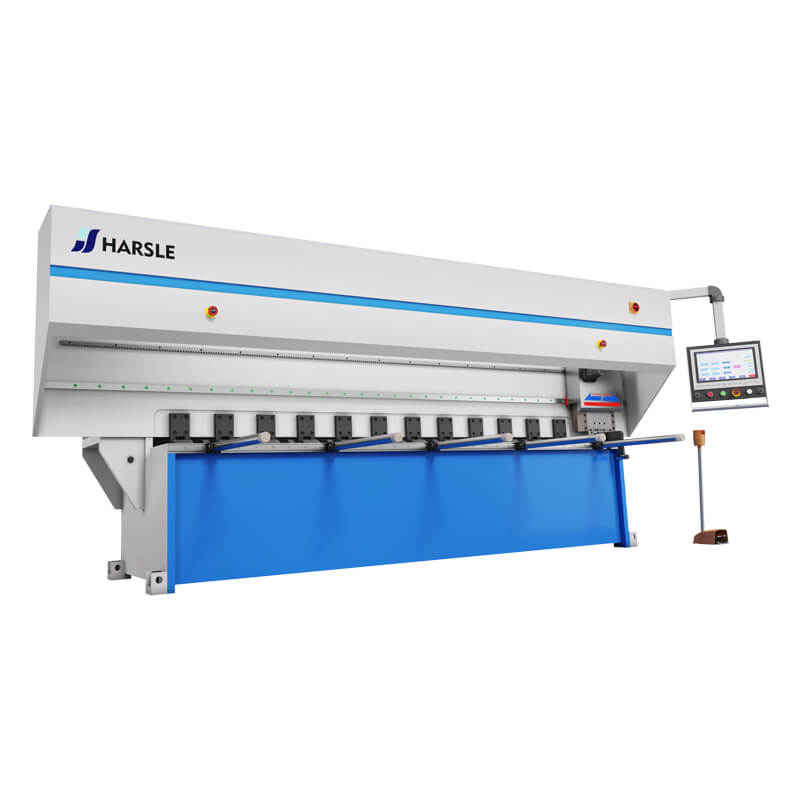

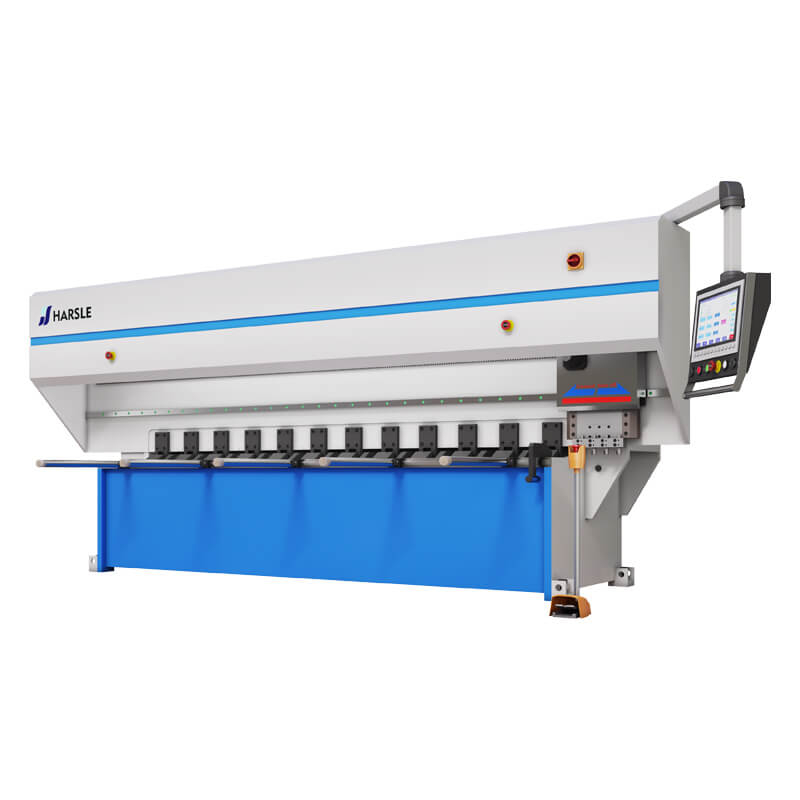

The vertical slotting machine adopts the precision ball screw as the power transmission component and has the characteristics of high processing precision, which is especially important for high performance products.
The machine has three-axis, X-axis (longitudinal moving of the tool tip), Y-axis (up and down), Z-axis (vertical moving of the tool tip) servo motor control, realizes full-automatic operation after parameter input, and comprehensively improves the planer Precision.
The pressing system uses the hydraulic system as the power, the pressure is large, and the fastening force is reliable. At the same time, low noise and low energy consumption.
The rear moving part is driven by double ball screw, and the positioning accuracy of the board surface is high.
The tool holder slide is made of cast iron material, which is wear-resistant and repairable, and the service life is guaranteed for more than ten years.
Max. Grooving depth
|Control Type||3-axis CNC control(X、Y、Z)|
|Display||10 inch HD LCD color screen|
99 groups,9999channels/group (additional SD card extension)
|Working System||Ball screw/linear guide/rack and pinion|
|X Axis Precision||0.01mm|
|Y Axis Precision||0.01mm|
|Z Axis Precision||0.01mm|
|X-Axis||4.5KW Servo Motor|
|Z-Axis||2KW Servo Motor|
|Y1&Y2|| 1KW Servo Motor|
|Worktable Flatness|| ±0.02mm|
