WC67K
HARSLE
8462299000
Econom Press Brake
SKU: | |
---|---|
Availability: | |
Quantity: | |
Product Description

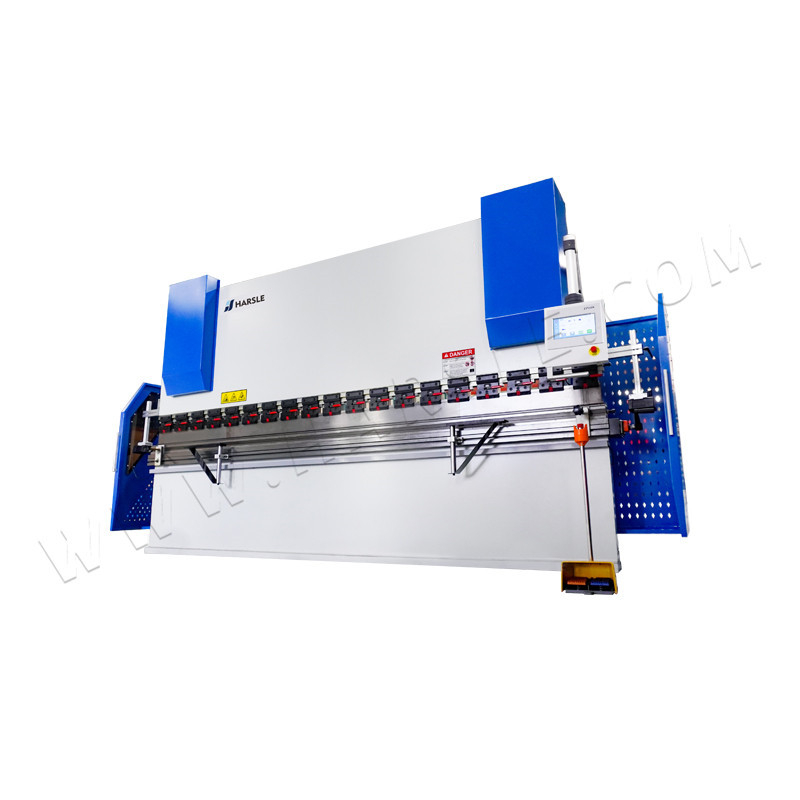

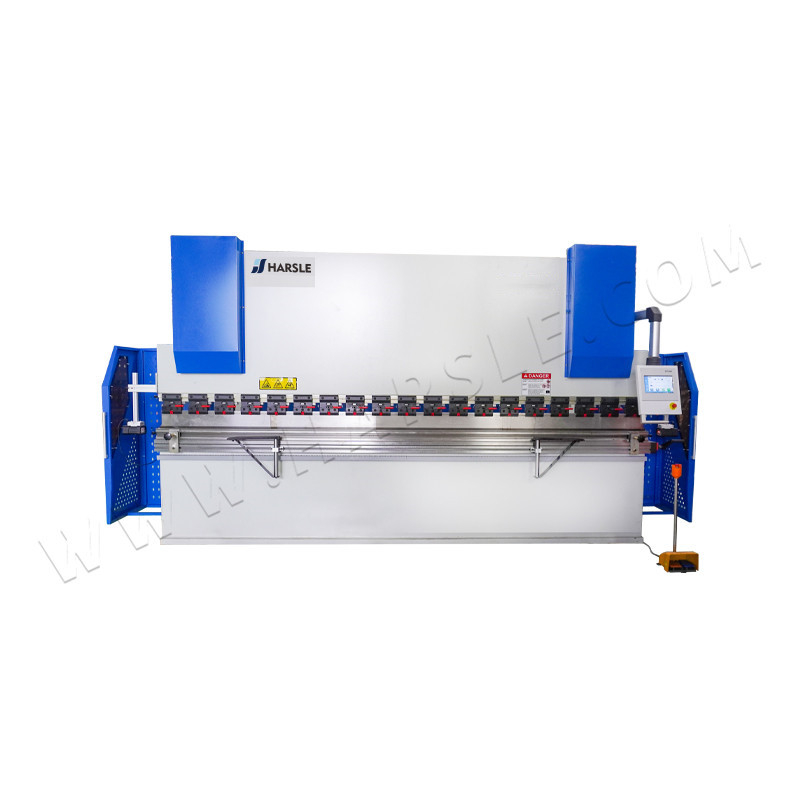

WC67K-125T/3200 Sheet Metal Press Brake Machine with TP10S Touch Screen Control and Manual Crowning from China.
TP10S Controller
● TP10S touch screen controller
● MSD Laser safe protection
● Manual crowning system
● Servo motor for backgauge
● Servo motor for ram stroke
● One-key release fast clamp
● Backgauge on linear guide
Technical parameter
No. | Item | Unit | 125T/3200 |
1 | Bending force | kN | 1250 |
2 | Bending length | mm | 3200 |
3 | Columns distance | mm | 2600 |
4 | Throat depth | mm | 320 |
5 | Ram stroke | mm | 120 |
6 | Max. opening height | mm | 370 |
7 | Ram down speed | mm/sec | 90 |
8 | Ram back speed | mm/sec | 85 |
9 | Ram working speed | mm/sec | 5~12 |
10 | Work-price linearity | mm | 0.5 |
11 | Max. Backgauge distance | mm | 500 |
12 | Front sliding arms | pcs | 2 |
13 | Bending angle accuracy | ( ' ) | 30 |
14 | Backgauge finger stopper | pcs | 3 |
15 | Main motor | KW | 7.5 |
16 | Control system | / | TP10S |
17 | Dimension | (L*W*H)mm | 3300*1600*2600 |
18 | Weight | kg | 7200 |
Standard configurations
NO. | Name | BRAMD | Original country |
1 | Main motor | SIEMENS brand | |
2 | Electric components | SCHNEIDER | France |
3 | Hydraulic pump | SUNNY | USA |
4 | Hydraulic valve | Rexroth | Germany |
5 | Tubing connector | EMB | Germany |
6 | Seal rings | NOK | Japan |
7 | Foot switch | KACON | South Korea |
8 | Servo motor and driver | THINKVO | China |
9 | Finger stopper | Precision stoppers with fine adjustment | |
10 | Manual R axis | Back-gauge moving up and down | |
11 | Side and rear safe guard | European safety standard | |
12 | Front support arms | Foldable sheet supporter | |
13 | Clamping tooling | Fast clamps | |
14 | Punch and die | Standard punch and multi-V die |
