V grooving machine, also called V groover, groover. It is a machine for scribing and slot V-shaped grooves at the positions where metal plates need to be bent. The main application industries of the grooving process are the light industry, electric appliances, automobiles, stainless steel processing, building decoration, elevator, and so on. In the elevator industry, the grooving process is mainly applied to the parts that can be seen by the naked eye, such as the summon box panel, car wall in the car, control box panel, front wall, ceiling, and other parts, the small size R angle makes the parts fit better, and the appearance is luxurious and classy, and the high-end passenger elevators such as hotels and office buildings are widely used.
Main Features

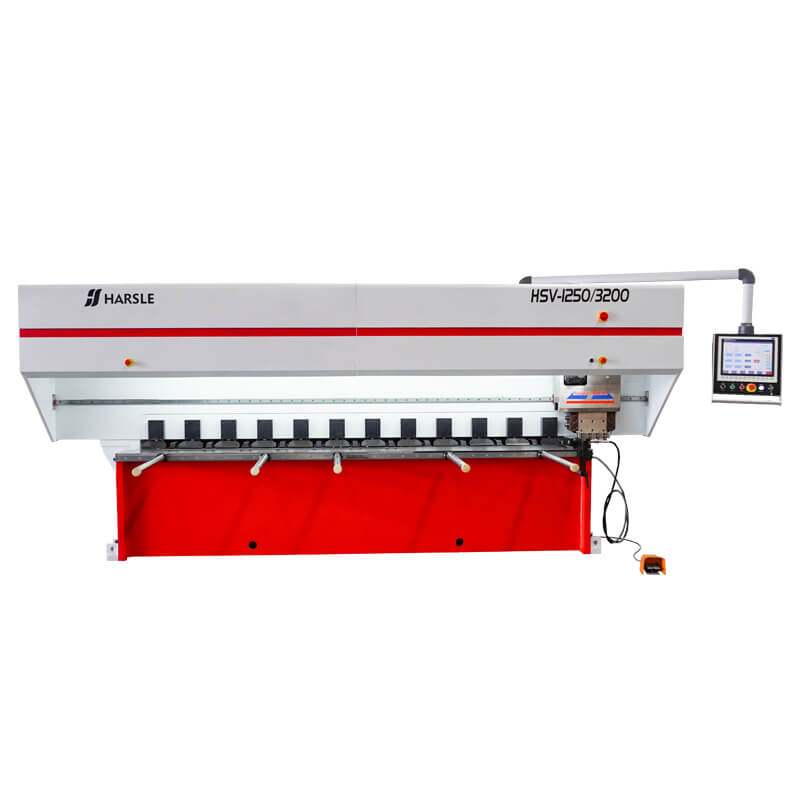

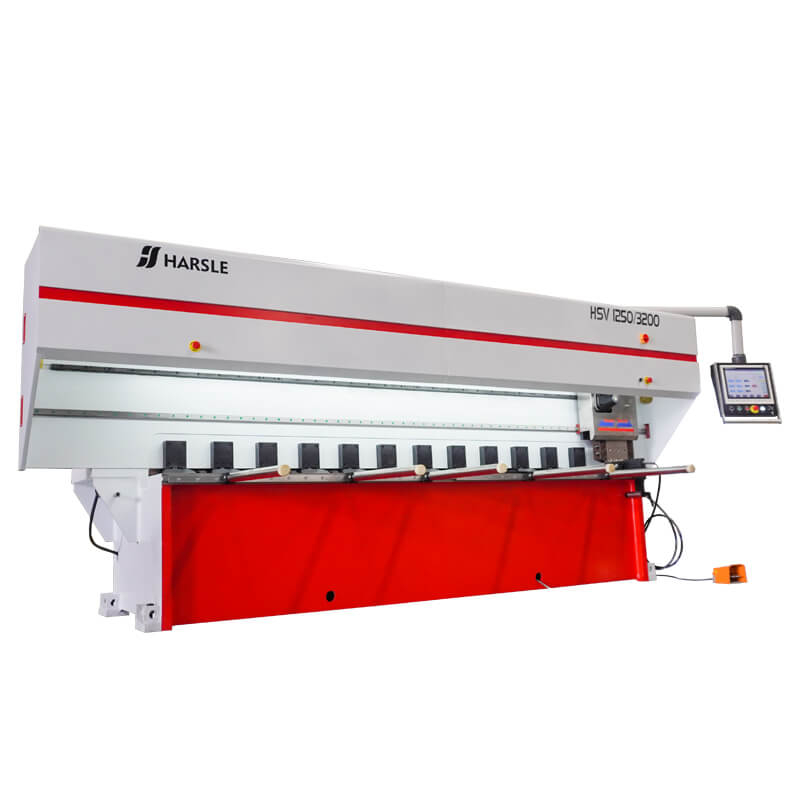

HARSLE HSV-1500/3200 vertical V grooving machine is equipped with the HUST CNC A60 touchscreen controller, and the precision ball screw as the power transmission component features the characteristics of high processing precision. The machine has 3 axis servo motor control and realizes full-automatic operation after programming. The pneumatic clamping system features a fast clamping speed. All those designs comprehensively improve the precision。
Adopt the vertical V-grooving (or V cut) method on the metal sheet first, then bend the grooved sheet metal into various angles and shapes by the press brakes with general mold or special mold.
The workpiece produced with such a technique has a small bending radius, no obvious color changes, and small bending force requirements which makes the sheet metal workpiece more beautiful. Besides, it reduces the straightness error of the round edge of narrow long workpieces, and the common press brake and toolings can be used to bend the workpiece with complicated section shapes.
Technical Parameters
No. | Model | HSV | |
1 | Machining Capacity | Material | STS304&Q235 |
Length | 3200mm | ||
Width | 1500mm | ||
Thickness | 0.4mm-6mm | ||
Max. Grooving depth | 3mm | ||
2 | CNC Specifications | Control Type | 3-axis CNC control(X、Y、Z) |
Display | 10 inches HD LCD color screen | ||
Memory Capacity | 99 groups,9999channels/group (additiona SD card extension) | ||
Working System | Ball screw/linear guide/rack and pinion | ||
3 | Machining Speed | X axis | 0-90m/min |
Y axis | 20m/mm | ||
Aaxis | 20m/mm | ||
4 | Machining Precision | X Axis Precision | 0.01mm |
Y Axis Precision | 0.01mm | ||
Z Axis Precision | 0.01mm | ||
5 | Driving Mode | X-axis | 4.5KW Servo Motor |
Y-axis | 2KW Servo Motor | ||
Z-axis | 1KW Servo Motor | ||
6 | Clamping Device | Pneumatic | 0.3-0.6Mpa |
7 | Worktable flatness | 士0.02mm | |
8 | Worktable quench | Yes | |
9 | Dimensions | Length | 5000mm |
Width | 2750mm | ||
Height | 2100mm | ||
Weight | 1050kg |
