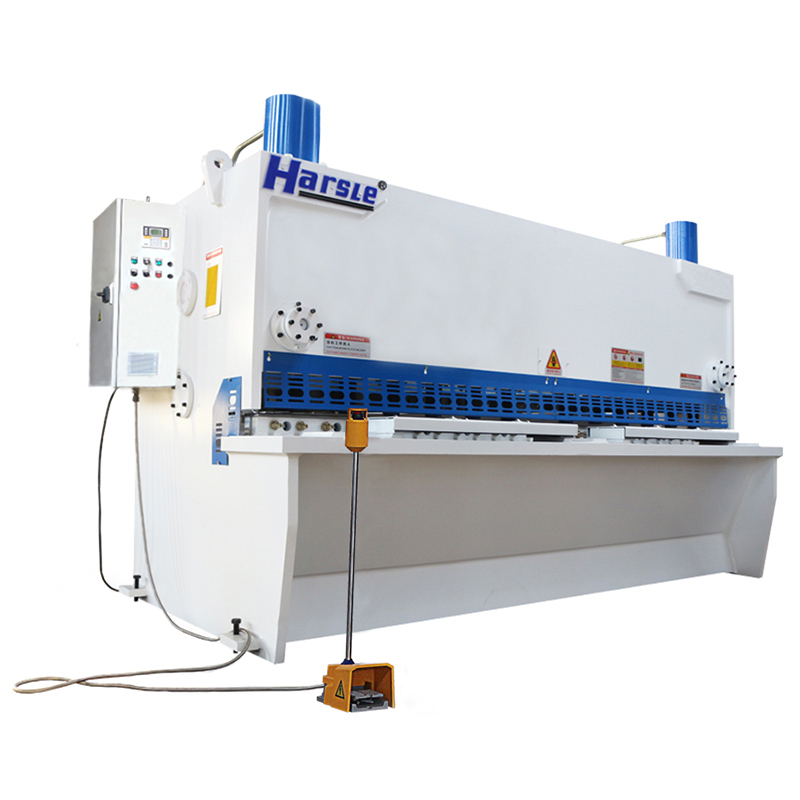

CNC Hydraulic Guillotine Shearing Machine, Metal Sheet Cutting Machine with ELGO P40

5 1 Reviews
1. Multi-Language interface.
2. Front arms with millimeter ruler
3. Single/ Cycle/ Manual Model
4. Backgauge is equipped with YASKAWA Servo motor.
5. Upper and Lower cutting blades are four cutting edges.
6. Cutting angle and knife gap are programmed by CNC controller P40.
  • QC11K-CNC
  • HARSLE
Quantity:

Features

  • The streamlined welded Guillotine Shearing Machine structure achieves high rigidity.

  • The motors for backgauge are controlled by servo motor, which can achieve high accuracy and fast speed.

  • Top blade with four cutting edges and bottom blade with four cutting edges (6CrW2Si).

  • Knife gap and cutting angle can be programmed by CNC Controller ELGO P40 only by inputting material thickness.

  • Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders.

  • Foot switch with emergency button can stop the CNC cutting machine immediately when accident happens.

  • CNC Hydraulic shearing machine with Multi-Language controller operational interface will be easy for customers from all over the world.

  • Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.

Product Description

knife gap and cutting angle programknife gap and cutting angle programknife gap and cutting angle program8X3200-P40带前送料_04

Specification

Model

Shearing

Thickness

(mm)

Shearing

Width

(mm)

Stroke

Times

(cuts/min)

Back-gauge

Rang

(mm)

Shearing

Angler°

Main

Power

(KW)

Overall

Dimensions

L×W×H(mm)

4×2500

4

2500

16~35

20~600

30’~1°30’

5.5

3200×1400×2000

6×2500

6

2500

16~35

20~600

30’~1°30’

7.5

3200×1500×2100

6×3200

6

3200

14~35

20~600

30’~1°30’

7.5

3900×1580×2150

6×4000

6

4000

10~30

20~600

30’~1°30’

7.5

4700×1650×2250

6×5000

6

5000

10~30

20~800

30’~1°30’

11

5700×1800×2380

6×6000

6

6000

8~25

20~800

30’~1°30’

11

6700×2000×2650

8×2500

8

2500

14~30

20~600

30’~2°

11

3200×1550×2150

8×3200

8

3200

12~30

20~600

30’~2

11

3950×1750×2350

8×4000

8

4000

10~25

20~600

30’~2°

11

4700×1800×2480

8×5000

8

5000

10~25

20~800

30’~2°

15

5700×1950×2600

8×6000

8

6000

8~20

20~800

30’~2°

15

6700×1980×2650

12×2500

12

2500

12~25

20~800

30’~2°

15

3250×1680×2250

12×3200

12

3200

12~25

20~800

30’~2°

15

3980×1800×2550

12×4000

12

4000

8~20

20~800

30’~2°

15

4800×1950×2650

12×5000

12

5000

8~20

20~1000

30’~2°

22

5800×2150×2700

12×6000

12

6000

6~20

20~1000

30’~2°

30

6800×2450×2900

16×2500

16

2500

12~20

20~800

30’~1°30’

22

3280×1830×2520

16×3200

16

3200

12~20

20~800

30’~1°30’

22

3950×1950×2650

16×4000

16

4000

8~15

20~800

30’~1°30’

22

4800×1970×2700

16×5000

16

5000

8~15

20~1000

30’~1°30’

30

5800×2250×2870

16×6000

16

6000

6~15

20~1000

30’~1°30’

37

6800×2450×3150

20×2500

20

2500

10~20

20~800

30°~3°

30

3400×2260×2520

20×3200

20

3200

10~20

20~800

30’~3°

30

4100×2300×2700

20×4000

20

4000

8~15

20~800

30’~3°

30

4900×2500×2880

20×5000

20

5000

8~15

20~1000

30’~3°

37

5900×2750×2980

20×6000

20

6000

6~15

20~1000

30’~3°

37

6900×2850×3200

25×2500

25

2500

8~15

20~800

30’~3°

37

3420×2400×2650

25×3200

25

3200

8~15

20~800

30’~1°30’

37

4150×2500×2750

25×4000

25

4000

6~12

20~1000

30’~1°30’

37

4900×2600×2950

30×2500

30

2500

8~12

20~1000

30’~1°30’

55

3450×2600×2750

30×3200

30

3200

8~12

20~1000

30’~4°

55

4150×2700×2850

30×4000

30

4000

8~12

20~1000

30’~4°

55

4900×2900×3100

40×2500

40

2500

4~10

20~1000

30’~4°

55

4000×2950×3150

40×3200

40

3200

4~10

20~1000

30’~4°

55

4900×3050×3680
