Product Description

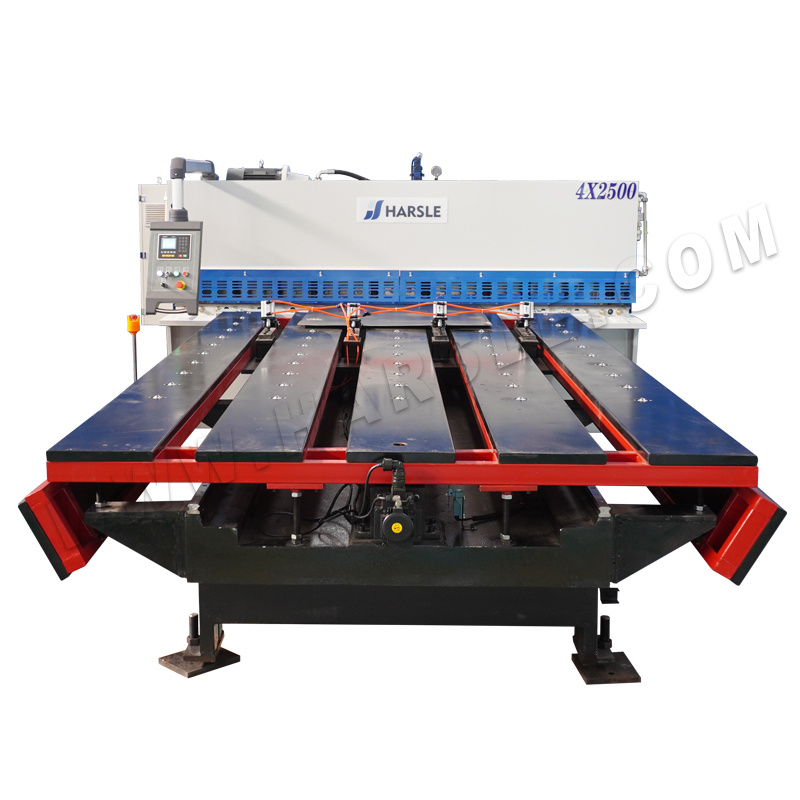

QC12K-4*2500 CNC Swing Beam Shearing Machine with Front Feeding Table, Metal Cutting Machine with E200PS controller.
E200PS controller
●Servo bus control can realize high-precision control of back gauge.
●Can control the cutting edge.
●Unilateral positioning improves positioning accuracy and reduces screw gap.
●Cut and return EOS.
●Pneumatic support.
●The back gauge automatically seeks parameters.
●The manual button can be used to move the back gauge.
●To hide non-user pages such as machine parameters and system diagnostics, a specific password is required to activate and enter.
●One-key backup and restore of parameters.

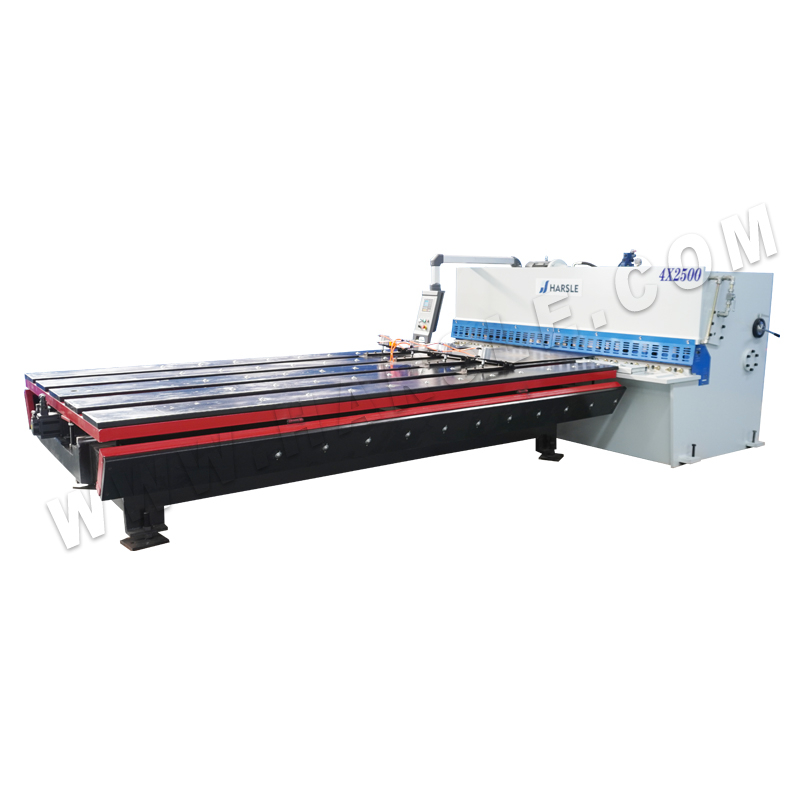

Front Feeding Table
Technical Parameters
No. | Item | Unit | 4*2500 | |
1 | Max cutting thickness | mm | 4 | |
2 | Max cutting length | mm | 2500 | |
3 | Throat depth | mm | 150 | |
4 | Cutting angle | ° (degree) | 1°30' | |
5 | Cutting speed | Cutting times/minutes | 14 | |
6 | Cutting Blade | length | mm | 1300*2 |
quantity | pcs | 2(upper)+2(bottom) | ||
7 | Backgauge | travel | mm | 500 |
speed | mm/sec | 180 | ||
accuracy | mm | ±0.02 | ||
8 | Front arms | length | mm | 800 |
quantity | pcs | 3 | ||
9 | Spring pressure cylinder | pcs | 10 | |
10 | Main motor | KW | 5.5 | |
11 | Control system | \ | E21S | |
12 | Dimension | (L*W*H)mm | 3040*1550*1550 | |
13 | Weight | kg | 3300 |
