Laser cutting machines rely heavily on stable and accurate motion systems to achieve precise cutting performance. Laser Drive System Maintenance is essential for ensuring smooth axis movement, reducing positioning errors, and extending the service life of motors, reducers, rails, and drive components. In this article, I’ll explain how to properly maintain a laser drive system, prevent common failures, and improve long-term machine reliability. Whether you operate a fiber laser cutting machine daily or manage an industrial fabrication workshop, following these maintenance practices will help reduce downtime, maintain cutting accuracy, and improve production efficiency.

Why Laser Drive System Maintenance Matters

The drive system is responsible for transmitting motion from the servo motors to the machine axes. If the drive components are neglected, cutting precision and machine stability will quickly decline.

Prevents Positioning Errors

A poorly maintained drive system may develop backlash, vibration, or unstable movement. This can lead to inaccurate hole positions, poor edge quality, and inconsistent cutting dimensions.

Extends Component Lifespan

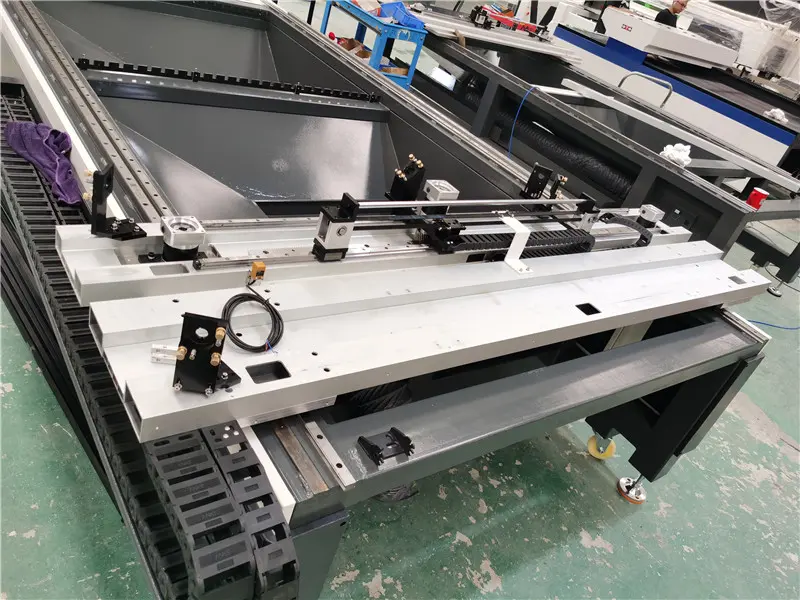

Routine maintenance reduces wear on servo motors, gear racks, reducers, and linear rails, allowing expensive components to last longer.

Improves Machine Stability

Smooth-running drive systems minimize vibration during high-speed cutting, helping maintain consistent cutting quality.

Reduces Unexpected Downtime

Regular inspections help detect loose couplings, worn belts, or lubrication issues before they develop into major failures.

Step-by-Step Laser Drive System Maintenance Guide

Step 1: Inspect Servo Motors and Couplings

I always begin by checking servo motors for abnormal noise, overheating, or vibration. Loose motor couplings can create positioning errors and unstable movement. Tighten all fasteners and ensure proper alignment between the motor and transmission system.

Step 2: Lubricate Rails and Gear Racks

Lubrication is critical for reducing friction and preventing premature wear. Apply the manufacturer-recommended lubricant to:

• Linear guide rails
• Gear racks and pinions
• Ball screws and bearings

Avoid excessive lubrication, as excess grease can attract dust and debris.

Step 3: Clean Dust and Metal Debris

Laser cutting environments generate fine metal particles that can contaminate moving components. Use compressed air or soft cloths to remove debris from rails, drive racks, and protective covers regularly.

Step 4: Check Belt and Reducer Conditions

Inspect transmission belts for cracks, stretching, or uneven tension. For reducer systems, check for:

• Oil leakage
• Abnormal vibration
• Excessive operating temperature

Replacing worn belts early helps maintain stable axis motion.

Step 5: Verify Axis Alignment and Calibration

Improper alignment can increase resistance and accelerate component wear. Use calibration tools or CNC diagnostics to verify:

• X-axis and Y-axis alignment
• Motor synchronization
• Positioning accuracy

Correct calibration improves cutting precision and reduces stress on the drive system.

Step 6: Monitor Electrical Connections

Loose or damaged electrical connections can affect servo motor performance. Inspect:

• Servo drive cables
• Encoder wiring
• Electrical terminals

Ensure all connections are secure and protected from dust or moisture.

Common Laser Drive System Problems

Excessive Vibration During Cutting

Vibration often indicates worn bearings, loose rails, or poor motor synchronization. Ignoring vibration can reduce cutting quality and damage components.

Abnormal Noise from Drive Components

Grinding or knocking sounds may indicate insufficient lubrication, worn gears, or damaged bearings.

Inconsistent Axis Movement

Jerky movement or positioning deviation is commonly caused by contaminated rails, loose couplings, or servo tuning issues.

Overheating Servo Motors

Overheating can result from overload conditions, poor ventilation, or excessive friction within the drive system.

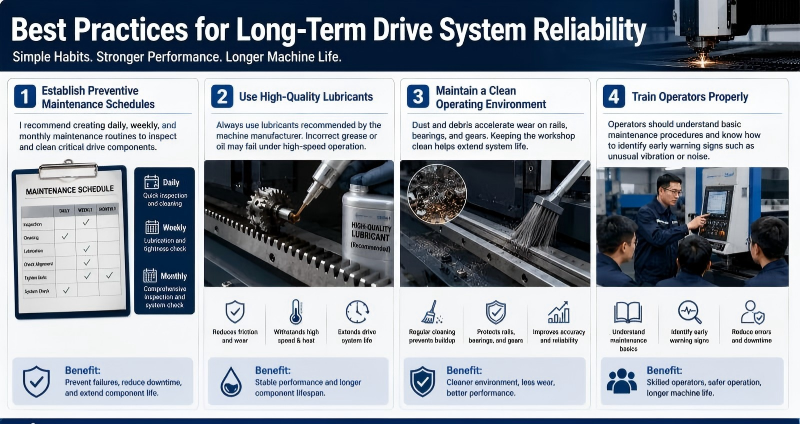

Best Practices for Long-Term Drive System Reliability

Establish Preventive Maintenance Schedules

I recommend creating daily, weekly, and monthly maintenance routines to inspect and clean critical drive components.

Use High-Quality Lubricants

Always use lubricants recommended by the machine manufacturer. Incorrect grease or oil may fail under high-speed operation.

Maintain a Clean Operating Environment

Dust and debris accelerate wear on rails, bearings, and gears. Keeping the workshop clean helps extend system life.

Train Operators Properly

Operators should understand basic maintenance procedures and know how to identify early warning signs such as unusual vibration or noise.

FAQs

Conclusion

Proper Laser Drive System Maintenance is essential for maintaining machine precision, stability, and long-term reliability. By regularly inspecting motors, lubricating moving components, cleaning debris, checking alignment, and monitoring electrical connections, operators can significantly reduce wear and prevent costly downtime.

A well-maintained drive system ensures smooth machine operation, consistent cutting accuracy, and improved production efficiency. If you need additional technical support or guidance on maintaining your laser cutting machine, feel free to contact our professional team for expert assistance.
