When I encounter Pressa piegatrice Control System Malfunctions, the first thing I focus on is identifying the root cause quickly to minimize downtime and prevent production losses. A malfunctioning control system can lead to inaccurate bending, unexpected stops, or even complete machine shutdown. In this guide, I’ll walk you through practical steps to diagnose and fix common control system issues, so you can restore your press brake to stable and precise operation.

Come diagnosticare Pressa piegatrice Control System Malfunctions

Step 1: Check Power Supply and Connections

I always start with the basics. Ensure the machine is receiving stable voltage and that all power cables are securely connected. Loose wiring or voltage fluctuations can easily trigger control system errors or screen failures.

Step 2: Inspect the CNC Controller Display

If the screen is blank, frozen, or showing error codes, it usually points to a control system issue. I recommend noting any alarm messages and referring to the controller manual (such as DELEM or ESA systems) for specific fault explanations.

Step 3: Verify Emergency Stop and Safety Circuits

Sometimes the issue is not the controller itself. I check whether the emergency stop button is engaged or if safety devices like light curtains or door switches are triggered. These will prevent the system from operating.

Common Causes of Press Brake Control System Malfunctions

Electrical Interference and Wiring Problems

Poor grounding or electromagnetic interference can disrupt signal transmission. I’ve seen cases where unstable signals caused erratic backgauge movement or inconsistent ram positioning.

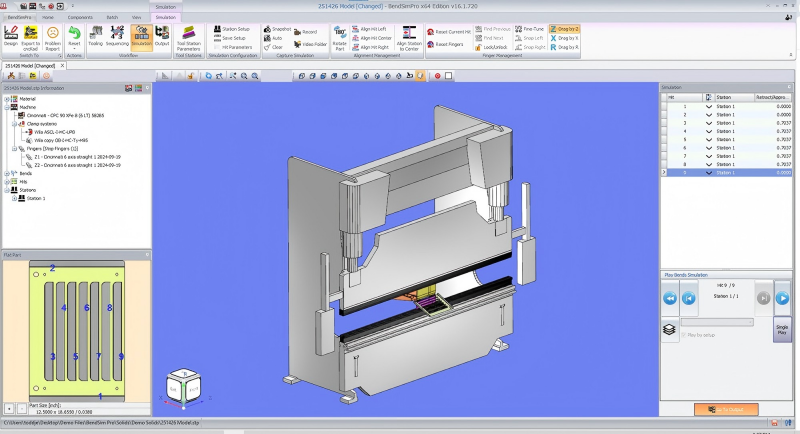

Software or Parameter Errors

Incorrect parameter settings or corrupted programs can lead to abnormal machine behavior. It’s important to verify bending programs and restore default parameters if necessary.

Sensor and Encoder Failures

Position sensors and linear encoders are critical for accuracy. If they fail, the controller cannot correctly detect the ram or backgauge position, leading to serious alignment issues.

Hydraulic-Electrical Synchronization Issues

In electro-hydraulic press brakes, the control system works closely with proportional valves. Any mismatch can cause uneven movement between Y1 and Y2 axes.

How to Fix Press Brake Control System Malfunctions Step by Step

Step 1: Restart and Reset the System

I begin with a simple restart. Power off the machine, wait a few minutes, and reboot the controller. This can clear temporary faults or system glitches.

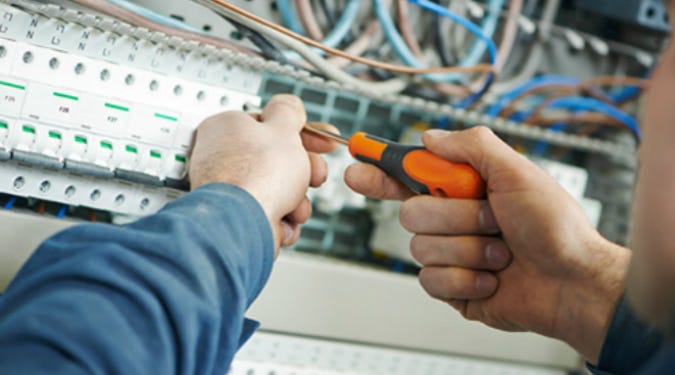

Step 2: Check and Tighten Electrical Components

Inspect terminal blocks, connectors, and wiring harnesses. Tightening loose connections often resolves intermittent control issues.

Step 3: Restore or Update CNC Parameters

If the issue persists, I reload backup parameters or update the controller software. Always keep a backup to avoid data loss.

Step 4: Test Sensors and Replace Faulty Parts

Use diagnostic tools to check encoder signals and limit switches. Replace any damaged or unresponsive components immediately.

Step 5: Consult Technical Support

When the problem involves complex PLC logic or controller hardware, I recommend contacting the manufacturer’s support team for professional assistance.

Preventive Maintenance Tips for Press Brake Control Systems

Ispezione di routine

Regularly inspect wiring, connectors, and control cabinets to prevent unexpected failures.

Keep the Environment Clean

Dust, oil, and moisture can damage electronic components. I always ensure the control cabinet is clean and well-ventilated.

Backup System Data

Frequent backups of CNC programs and parameters can save significant time during recovery.

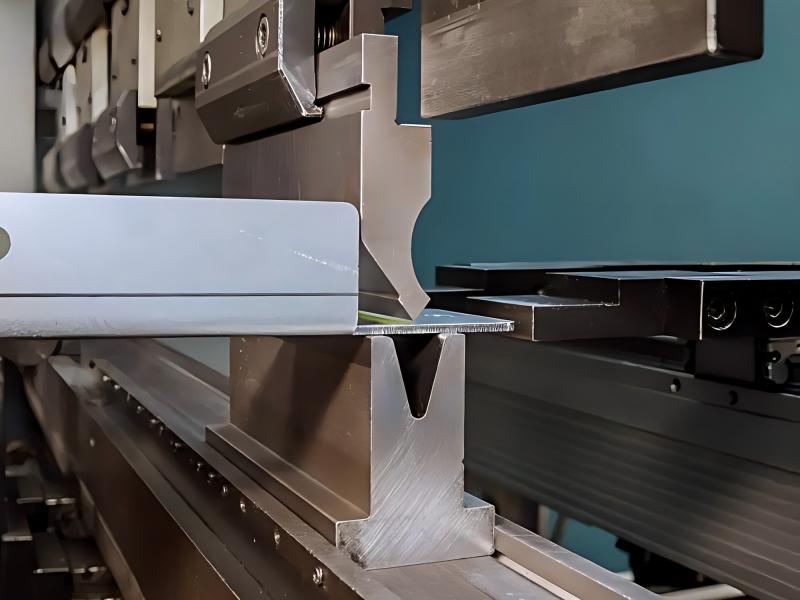

Monitorare le prestazioni della macchina

Pay attention to unusual sounds, delays, or inconsistencies. Early detection helps avoid major breakdowns.

Domande frequenti

Conclusione

Dealing with Press Brake Control System Malfunctions can be challenging, but with a structured approach, most issues can be diagnosed and resolved efficiently. By checking power supply, inspecting components, and maintaining proper system settings, I can significantly reduce downtime and improve machine reliability. If you’re facing persistent problems or need expert guidance, don’t hesitate to contact HARSLE for professional support and tailored solutions.
