Adequado ESTUN E315P Grounding is essential for maintaining stable controller operation, reducing electrical interference, and protecting the CNC system from potential electrical faults. The E315P uses several grounding methods for the controller chassis, power terminals, shielded cables, and signal connections, so each grounding point must be connected correctly during installation.

Improper grounding or shield connection may result in unstable signals, electromagnetic interference, or unreliable machine operation. In this guide, we will explain the main ESTUN E315P Grounding requirements, including shield wire connection, grounding types, chassis grounding, power terminal grounding, and encoder cable shielding.

Why Is ESTUN E315P Grounding Important?

O E315P operates together with electrical and motion-control components such as servo systems, encoders, I/O devices, and power circuits. These components can generate or receive electrical interference during machine operation.

A properly designed grounding system helps provide a low-impedance path to earth and improves the stability of sensitive electrical signals.

Correct grounding can help:

• Reduce electromagnetic interference.
• Improve signal stability.
• Provide reliable protective grounding.
• Reduce the influence of electrical noise.
• Improve overall controller reliability.

For this reason, grounding should be considered an essential part of E315P installation rather than an optional wiring step.

How to Connect the ESTUN E315P Shield Wire

Shielded cables are used to reduce the influence of electromagnetic interference on sensitive signals.

According to the E315P installation requirements, shield connections should be properly grounded, and cables between components such as the controller and servo motor should normally be shielded at both ends.

Strip the Cable Sheath

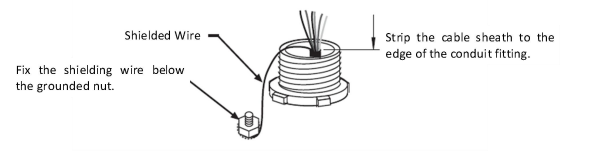

First, strip the outer cable sheath to the edge of the conduit fitting.

The purpose is to expose the shielding connection while keeping the internal conductors properly protected.

Care should be taken not to damage the internal signal wires when removing the outer sheath.

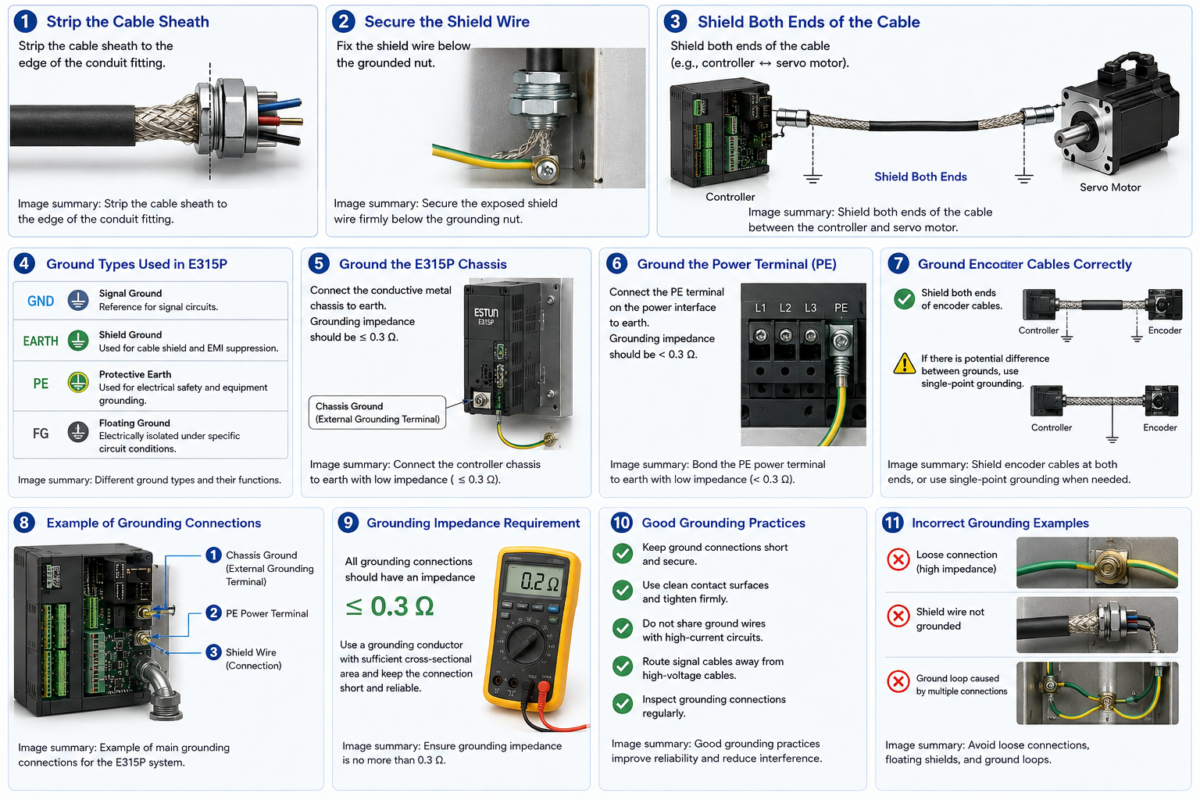

Image summary: Strip the cable sheath to the edge of the conduit fitting to prepare the shield wire for grounding.

Secure the Shield Wire

After exposing the shield wire, route it to the designated grounding point.

The shield wire should be fixed securely below the grounding nut to establish a reliable electrical connection.

A loose shield connection may increase impedance and reduce the effectiveness of electromagnetic shielding.

Make sure the connection point is clean and firmly tightened.

Image summary: Secure the exposed shield wire firmly below the grounding nut to create a reliable grounding connection.

Shield Both Ends of the Cable

For connections such as:

Controller ↔ Servo Motor

the manual specifies shielding at both ends of the cable.

Connecting the cable shield correctly helps provide an effective path for electrical interference and reduces the influence of noise on sensitive control signals.

However, grounding conditions should always be considered as part of the complete machine electrical design, particularly where potential differences exist between grounding points.

Image summary: Shield both ends of the cable between the controller and servo motor to help suppress electrical interference.

Understanding ESTUN E315P Ground Types

Different grounding symbols and connections can have different functions within an industrial CNC system. Correctly distinguishing these grounding types is important when completing ESTUN E315P Grounding.

Signal Ground

Signal ground, commonly marked as GND, provides the electrical reference for signal circuits.

It is used by control and communication circuits as a common reference point and should not automatically be treated as equivalent to protective earth.

Incorrectly mixing different grounding functions may introduce unwanted electrical noise into sensitive signal circuits.

Shield Ground

Shield ground, often identified as EARTH in interface definitions, is primarily associated with cable shielding and electromagnetic interference suppression.

Its purpose is to provide a suitable path for interference collected by the cable shield.

Shield connections should be short and reliable to minimize grounding impedance.

Protective Earth

Protective earth, or PE, is used for electrical safety and equipment grounding.

The E315P power interface includes a dedicated PE terminal, which must be securely bonded to earth.

This connection should not be omitted or replaced by an ordinary signal-ground connection.

Floating Ground

A floating ground is electrically isolated from other grounding references under specific circuit conditions.

Because different ground references serve different purposes, technicians should follow the controller documentation and machine electrical schematic rather than connecting all ground points together arbitrarily.

How to Ground the ESTUN E315P Chassis

The conductive metal chassis of the E315P requires a reliable low-impedance grounding connection.

According to the installation requirements, the external grounding terminal should be securely connected to earth with a grounding impedance of:

≤0.3 Ω

Connect the Chassis to Earth

The controller’s external grounding terminal should be connected securely to the machine grounding system.

The grounding conductor should provide a reliable low-impedance path rather than relying on incidental contact through mounting hardware or the electrical cabinet structure.

Keep the Grounding Connection Reliable

Grounding points should be firmly secured and protected from conditions that could increase electrical resistance.

Loose connections, corrosion, or poor conductor contact can reduce grounding effectiveness and may affect both electrical safety and interference suppression.

Image summary: Connect the E315P conductive chassis securely to earth with a grounding impedance of no more than 0.3 Ω.

How to Ground the Power Terminal

In addition to chassis grounding, the E315P power terminal includes a dedicated PE terminal.

The PE terminal must be bonded securely to earth.

According to the manual, the required grounding impedance is also:

<0.3 Ω

The PE conductor should therefore provide a direct and reliable grounding connection.

Before powering on the controller, technicians should verify that the PE terminal is correctly connected and that the grounding path is secure.

Image summary: Bond the E315P PE power terminal securely to earth with a grounding impedance below 0.3 Ω.

How to Ground Encoder Cables Correctly

Encoder signals are particularly sensitive to electrical interference because they are responsible for transmitting position feedback to the control system.

Proper cable shielding is therefore important for stable encoder operation.

Shield Both Ends of Encoder Cables

The E315P manual recommends shielding both ends of encoder cables to suppress interference.

This helps reduce the effect of electrical noise generated by nearby motors, drives, power cables, and other industrial equipment.

Consider Ground Potential Differences

If a voltage difference exists between the two grounding points, the grounding arrangement may need to be changed to single-point grounding.

This helps prevent unwanted current from flowing through the shield due to differences in ground potential.

Therefore, the appropriate shielding method should consider both electromagnetic interference and the actual grounding conditions of the machine.

Important ESTUN E315P Grounding Checks

Before powering on the controller, technicians should perform a final inspection of the complete grounding system.

Check that:

• The controller chassis is securely grounded.
• The PE terminal is properly bonded to earth.
• Required grounding impedance meets the specified value.
• Shield wires are securely fixed to their grounding points.
• Encoder cable shielding is correctly connected.
• Ground connections are clean and firmly tightened.
• Signal ground and protective earth have not been confused.
• Cable shields have not been left loose or disconnected.

These checks can help identify grounding problems before they affect machine commissioning or controller operation.

Best Practices for ESTUN E315P Grounding

Confiável ESTUN E315P Grounding depends on both correct electrical connections and good instalação practices.

Grounding conductors should be kept secure and provide a low-impedance path to earth. Shield connections should be properly terminated instead of leaving long, loose shield wires that may reduce shielding effectiveness.

Sensitive signal and encoder cables should also be installed with electromagnetic interference in mind. Where possible, they should be kept away from high-voltage and high-interference circuits.

Finally, always follow the E315P interface definitions together with the press brake electrical schematic. Different ground connections serve different purposes, so they should not be combined or modified without understanding the electrical design.

Correct grounding provides a reliable foundation not only for the E315P controller itself, but also for stable communication, encoder feedback, and overall press brake control.

Frequently Asked Questions（FAQ）

Conclusão

Proper ESTUN E315P Grounding is an important part of controller installation and reliable press brake operation. The grounding system should correctly handle the controller chassis, PE terminal, cable shields, signal ground, and sensitive encoder connections.

During installation, technicians should pay particular attention to low-impedance grounding. The E315P chassis should be securely connected to earth with an impedance of ≤0.3 Ω, while shield wires should be firmly terminated at their designated grounding points.

For shielded cables, including encoder and controller-to-servo connections, the grounding arrangement should follow the E315P installation requirements. If a potential difference exists between grounding points, the shielding method may need to be adjusted accordingly.

By following the recommended ESTUN E315P Grounding practices, technicians can improve electrical safety, reduce electromagnetic interference, maintain stable signal transmission, and provide a reliable foundation for CNC controller operation.
