If you’re aiming to optimize your manufacturing processes, understanding the ESTUN E300P configuration is essential. I’ve been where you are, trying to figure out how to enhance productivity and precision using this advanced control system. This article will guide you through mastering the ESTUN E300P configuration, showing you how it can significantly improve your production operations. Whether you’re new to this tool or looking to refine your skills, I’ll provide clear, actionable insights to help you get the most from your equipment.

General Settings

In the ESTUN E300P Configuration, customizing the general settings is crucial for aligning the machine’s performance with your production needs. Here’s how you can adjust these settings effectively:

Access the Programing Constant page to establish general bending parameters. This page is your gateway to customizing key settings that enhance machine adaptability.

• Count Mode: Select your preferred workpiece counting method to suit operational workflows.
• Wait Retract: Decide if the Y-axis should wait until retracting is complete, a setting that can significantly impact the efficiency of your process.
• Decompression Time: Adjust the decompression time appropriately to stabilize pressure changes during operations.
• Set Change Time: Configure suitable delay times for step changes, ensuring seamless transitions in your workflow.
• Intermediate R: Set a temporary position for the R-axis to prevent collisions caused by X-axis movements, a vital safety measure.

Customize Key Settings

Adjust parameters such as speed, pressure, and material type to enhance the machine’s adaptability. These configurations will allow you to optimize operations for efficiency and accuracy, ensuring the press brake functions harmoniously with your unique requirements.

Monitor and Revise Regularly

As production demands evolve, revisit and modify the general settings to maintain peak performance. Regular updates ensure that your machine continues to deliver consistent and reliable results.

Die Settings

Achieving optimal bending results requires precise configuration of die settings within your ESTUN E300P Configuration. Follow these steps for effective programming by angle:

1. Navigate to Settings and select “Die”.
2. Locate and click the line with your desired die “ID”.
3. Access and adjust die parameters using the soft keyboard.
4. Confirm by clicking “Enter” to finalize settings.

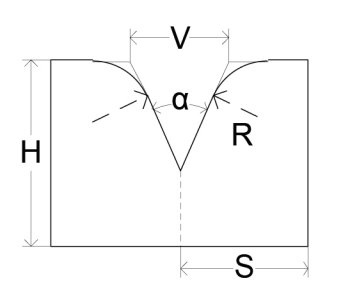

The following figure is the technical parameters of a die.

Below are the technical parameters crucial for die configuration:

• H (Height of the Die): Integral for calculating bend depth accurately.
• V (Length of V-opening): This refers to the distance between the lines where contact occurs in the V-opening.
• α (Angle of the Die): Essential for determining the bend angle specificity. Accurate angle programming ensures consistent bends and reduces material waste.
• R (Radius of V-opening Edges): Influences the gentleness of bends, adjusting for different material flexibilities.
• S (Safety Distance): Critical when an R-axis is used, ensuring no collision risk. The minimal value computed automatically is S=FS+V/2 , where FS represents the flat section on the back of the V-groove and V is the opening value.

Adjust Back Gauge Settings

Configure the back gauge to align perfectly with the die and workpiece dimensions. Proper back gauge setup is critical for maintaining repeatability and accuracy across multiple bends.

Conduct a Test Bend

Before initiating full-scale production, perform a test bend to verify the accuracy of the die settings. This step allows for fine-tuning and ensures that the machine is ready to produce parts that meet your specifications.

By mastering these ESTUN E300P Configuration settings, you can enhance machine performance, extend tool life, and achieve your desired bending accuracy efficiently. This configuration not only optimizes the operation but also ensures safety and precision, empowering you to meet intricate production demands seamlessly.

Frequently Asked Questions(FAQ)

Conclusion

Mastering the ESTUN E300P Configuration involves optimizing both general and die settings to suit your specific production needs. By customizing your general settings, you ensure enhanced machine performance and adaptability. Configuring die settings effectively allows you to achieve optimal bending results while prolonging tool life.

To further optimize your machine’s capabilities, ensure regular maintenance and review of your configurations. This will help minimize downtime and maximize production efficiency. If you need further assistance or detailed support, feel free to contact our team. Additionally, explore our other documentation to enhance your understanding of machine operations.
