Press brake bending repeatability is essential for achieving consistent, high-quality results in metal forming. If you’re looking to improve the repeatability of your press brake, you’ve come to the right place. In this article, I’ll guide you through the key factors that impact repeatability and provide practical tips to enhance your press brake’s performance, ensuring you can consistently produce precise parts.

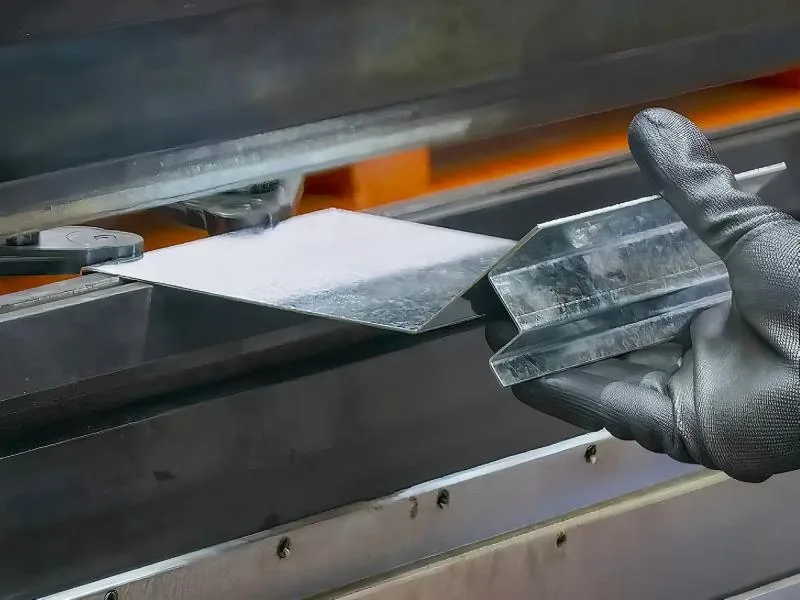

Understanding Press Brake Bending Repeatability

Press brake bending repeatability refers to the ability of the press brake to produce consistent bends across multiple cycles. It is essential for ensuring high-quality parts with minimal variation. Factors such as machine setup, tooling, material consistency, and maintenance can all affect repeatability. The goal is to reduce errors and achieve the same results each time the machine is used, regardless of the number of cycles.

1. Proper Calibration of the Press Brake

A critical step in improving bending repeatability is ensuring your press brake is calibrated correctly. Regular calibration ensures that the machine operates within its specified tolerances. If the press brake is out of calibration, it can result in inaccurate bends, leading to inconsistencies.

Step 1: Calibrate the Backgauge System

The backgauge system plays a key role in positioning the workpiece accurately. To improve repeatability, ensure that the backgauge is calibrated correctly to the machine’s specifications. Any misalignment or improper settings can lead to slight deviations in part dimensions.

Step 2: Adjust the Ram Position

Accurate ram positioning is essential for achieving consistent bending results. Ensure that the ram is properly aligned with the tooling and the material. Misalignment can cause variations in bend angles, compromising repeatability.

2. Maintain Consistent Tooling Setup

The tooling used in the press brake can also affect bending repeatability. Proper installation, alignment, and maintenance of tooling are crucial for consistent results.

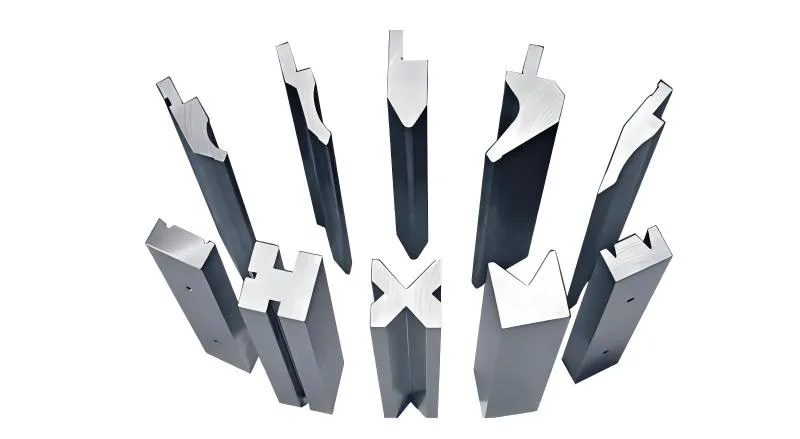

Step 1: Use High-Quality Tooling

Using high-quality, durable tooling that is designed to work with your press brake machine ensures accurate and repeatable bends. Worn or damaged tools can cause variations in bending angles, leading to inconsistencies.

Step 2: Check Tool Alignment

Proper tool alignment is critical for achieving repeatability. Before each use, double-check that the tools are securely and correctly positioned in the press brake. Any misalignment can cause irregularities in the bending process.

3. Control Material Variations

Material consistency is another important factor in bending repeatability. Variations in material thickness, hardness, and surface finish can affect how the press brake forms the material.

Step 1: Ensure Material Consistency

Always use materials that meet the required specifications for your project. Inconsistent material properties can lead to variation in the final product. It’s essential to check the material before starting production to minimize potential issues.

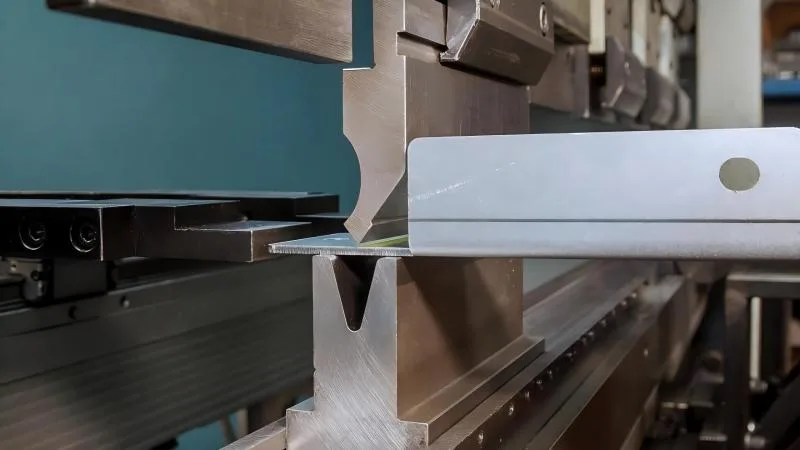

Step 2: Monitor Material Positioning

Ensure that the material is consistently positioned within the press brake. Small shifts in positioning can lead to variations in bend angles and depths, negatively affecting repeatability.

4. Perform Regular Maintenance

Routine maintenance is vital to maintaining the accuracy and repeatability of your press brake. Regular checks and servicing of the machine will help keep all components in optimal working condition, reducing the likelihood of errors and breakdowns.

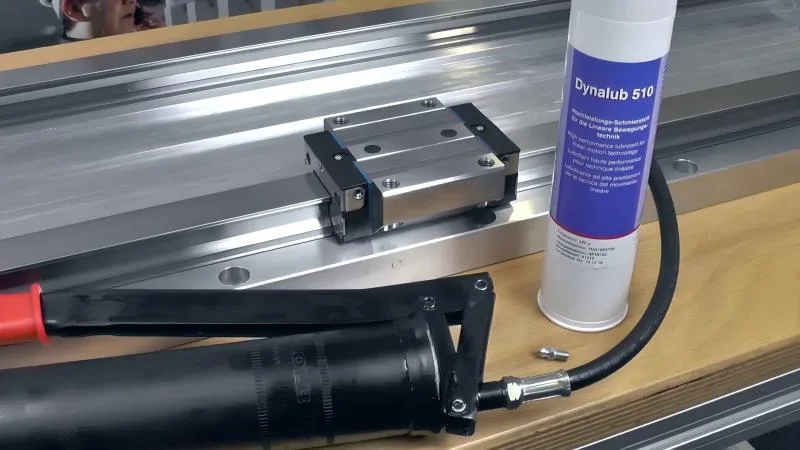

Step 1: Lubricate Moving Parts

Proper lubrication of the machine’s moving parts, including the ram and backgauge system, ensures smooth operation and minimizes wear. This reduces the risk of inaccuracies during bending.

Step 2: Inspect Hydraulic Systems

The hydraulic system is responsible for powering the press brake’s ram. Fluctuations in hydraulic pressure can lead to inconsistent results. Regularly inspect the hydraulic system for leaks or irregularities and make necessary repairs to maintain consistent bending performance.

FAQs

Conclusion

Improving press brake bending repeatability is essential for achieving consistent, high-quality results. By properly calibrating the machine, maintaining tooling alignment, controlling material consistency, and performing regular maintenance, you can ensure that your press brake operates with precision. For further assistance or to learn more about optimizing your press brake, feel free to contact our expert team.
